1723101304 - Molex

Description: Ultra-Fit Right-Angle Header, 3.50mm Pitch, Single Row, 4 Circuits, Glow-Wire Capable

Download 1723101304 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1723101304 - Molex - PCB symbol
click to zoom
PCB Footprints

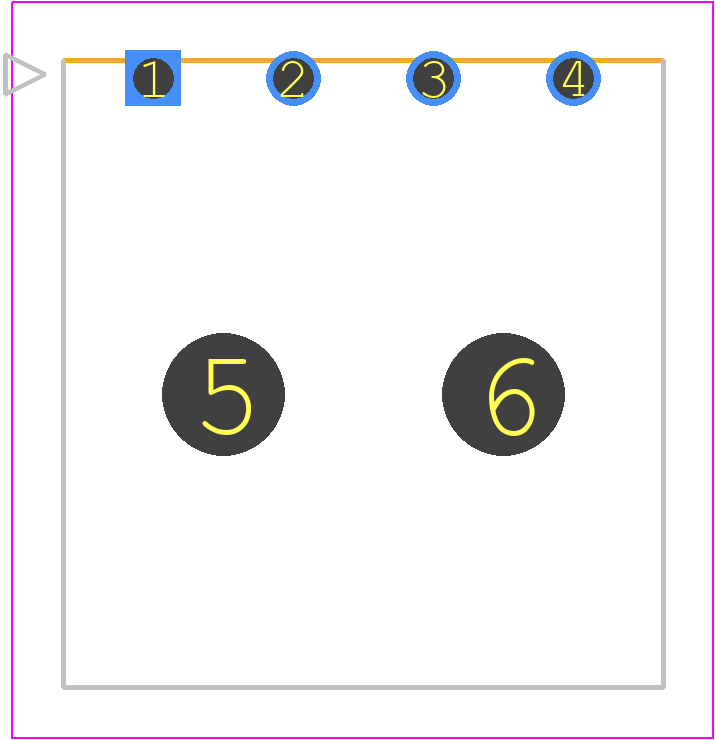

1723101304 - Molex PCB footprint - Other - Other - 172310YY04
click to zoom
3D Models
1723101304 - Molex - 3D model - Other - 172310YY04
click to zoom

1723101304 Details

  • Manufacturer Part Number:

    1723101304

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    Molex

  • YTEOL:

    0

  • Connector Type:

    RECTANGULAR POWER CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    NOT APPLICABLE

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    NO

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Material:

    LIQUID CRYSTAL POLYMER

  • MIL Conformance:

    NO

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD

  • Option:

    GENERAL PURPOSE

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    4

  • UL Flammability Code:

    94V-0

1723101304 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-0.7 Nm (5-7 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
  • Yes, the 1723101304 connector is designed to withstand vibrations and can be used in high-vibration applications. However, it's crucial to ensure proper mounting and secure the connector to prevent damage or disconnection.
  • The 1723101304 connector is designed for indoor use, but it can be used in outdoor or harsh environmental applications with proper protection and sealing. It's essential to follow Molex's guidelines for environmental sealing and protection to ensure reliability.
  • The 1723101304 connector is designed to accommodate wire sizes between 24 AWG and 20 AWG. Using wire sizes outside this range may affect the connector's performance and reliability.
  • Yes, the 1723101304 connector is designed to be compatible with other Molex products and systems. However, it's essential to verify compatibility and ensure proper mating and connection with other components.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1723101304 Overview

Use the download button to access the 1723101304 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 17231, or try a keyword search, such as Power Connectors

About Molex

Molex is a global manufacturer of connectivity solutions for various industries. The company offers a wide range of products including connectors, cables, antennas, sensors, and integrated systems. Molex's products are used in diverse applications such as automotive, telecommunications, data centers, consumer electronics, industrial automation, medical devices, and aerospace.
