Part Image

1723102204 - Molex

Description: Ultra-Fit Right-Angle Header, 3.50mm Pitch, Single Row, 4 Circuits, Glow-Wire Capable

Download 1723102204 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1723102204 - Molex - PCB symbol
click to zoom
PCB Footprints

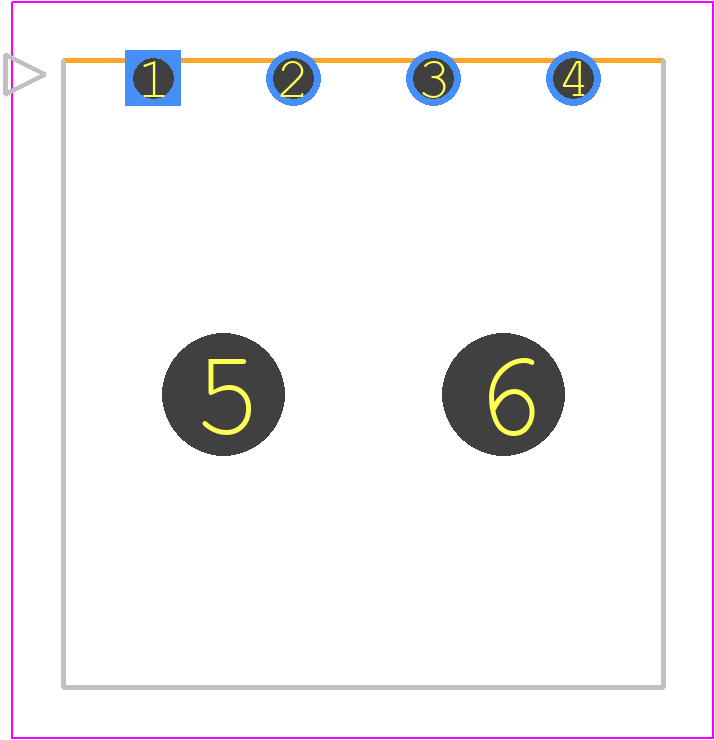

1723102204 - Molex PCB footprint - Other - Other - 172310YY04
click to zoom
3D Models
1723102204 - Molex - 3D model - Other - 172310YY04
click to zoom

1723102204 Details

  • Manufacturer Part Number:

    1723102204

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    Molex

  • YTEOL:

    0

  • Connector Type:

    RECTANGULAR POWER CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    NOT APPLICABLE

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    NO

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Material:

    LIQUID CRYSTAL POLYMER

  • MIL Conformance:

    NO

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD

  • Option:

    GENERAL PURPOSE

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    4

  • UL Flammability Code:

    94V-0

1723102204 Frequently Asked Questions (FAQs)

  • The recommended mating sequence for the 1723102204 connector is to mate the guide pins first, followed by the signal pins. This ensures proper alignment and prevents damage to the connector.
  • Yes, the 1723102204 connector is designed to withstand high-vibration environments. However, it's recommended to follow Molex's guidelines for vibration testing and to ensure proper mounting and strain relief to prevent connector damage.
  • The maximum cable bend radius for the 1723102204 connector is 10mm. Exceeding this radius may cause damage to the cable or connector.
  • Yes, the 1723102204 connector is designed for automated assembly processes. It features a pick-and-place compatible design and can be used with standard assembly equipment.
  • The operating temperature range for the 1723102204 connector is -40°C to 105°C. However, it's recommended to consult the datasheet for specific temperature ratings for the connector's materials and applications.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1723102204 Overview

Use the download button to access the 1723102204 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 17231, or try a keyword search, such as Power Connectors

About Molex

Molex is a global manufacturer of connectivity solutions for various industries. The company offers a wide range of products including connectors, cables, antennas, sensors, and integrated systems. Molex's products are used in diverse applications such as automotive, telecommunications, data centers, consumer electronics, industrial automation, medical devices, and aerospace.
