Part Image

1723102304 - Molex

Description: Ultra-Fit Right-Angle Header, 3.50mm Pitch, Single Row, 4 Circuits, 0.76µm Gold (Au) Plating, Natural, Glow-Wire Capable

Download 1723102304 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1723102304 - Molex - PCB symbol
click to zoom
PCB Footprints

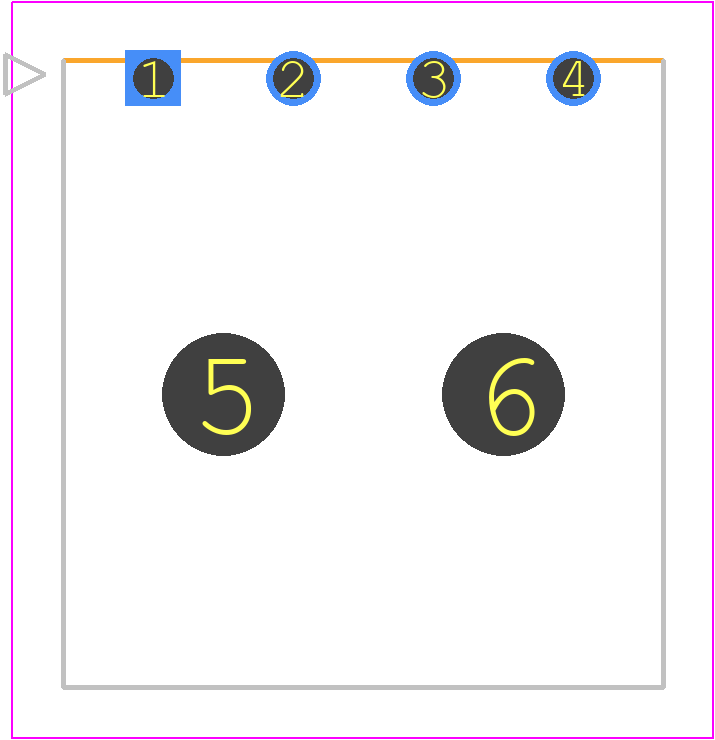

1723102304 - Molex PCB footprint - Other - Other - 172310YY04
click to zoom
3D Models
1723102304 - Molex - 3D model - Other - 172310YY04
click to zoom

1723102304 Details

  • Manufacturer Part Number:

    1723102304

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mexico

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    31 Weeks

  • Manufacturer:

    Molex

  • YTEOL:

    8

  • Connector Type:

    RECTANGULAR POWER CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Tin (Sn)

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    NO

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Material:

    LIQUID CRYSTAL POLYMER

  • JESD-609 Code:

    e3

  • MIL Conformance:

    NO

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD

  • Option:

    GENERAL PURPOSE

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    4

  • UL Flammability Code:

    94V-0

1723102304 Frequently Asked Questions (FAQs)

  • The recommended mating sequence for the 1723102304 connector is to mate the guide pins first, followed by the signal pins. This ensures proper alignment and prevents damage to the connector.
  • Yes, the 1723102304 connector is designed to withstand high-vibration environments. However, it's essential to follow the recommended torque specifications for the screw locks to ensure secure mating.
  • The 1723102304 connector has an operating temperature range of -40°C to 105°C. However, it's essential to note that the temperature rating may vary depending on the specific application and environment.
  • While it's possible to use a different wire gauge, it's not recommended. The 1723102304 connector is designed to work with specific wire gauges, and using a different gauge may affect the connector's performance and reliability.
  • To ensure proper EMI shielding, make sure to follow the recommended grounding and shielding procedures outlined in the datasheet. Additionally, ensure that the connector is properly mated and that the shield is securely connected to the chassis or ground plane.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1723102304 Overview

Use the download button to access the 1723102304 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 17231, or try a keyword search, such as Power Connectors

About Molex

Molex is a global manufacturer of connectivity solutions for various industries. The company offers a wide range of products including connectors, cables, antennas, sensors, and integrated systems. Molex's products are used in diverse applications such as automotive, telecommunications, data centers, consumer electronics, industrial automation, medical devices, and aerospace.
