172316-1310 - Molex

Description: Ultra-Fit Right-Angle Header, 3.50mm Pitch, Dual Row, 10 Circuits, Glow-Wire Capable

Download 172316-1310 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
172316-1310 - Molex - PCB symbol
click to zoom
PCB Footprints

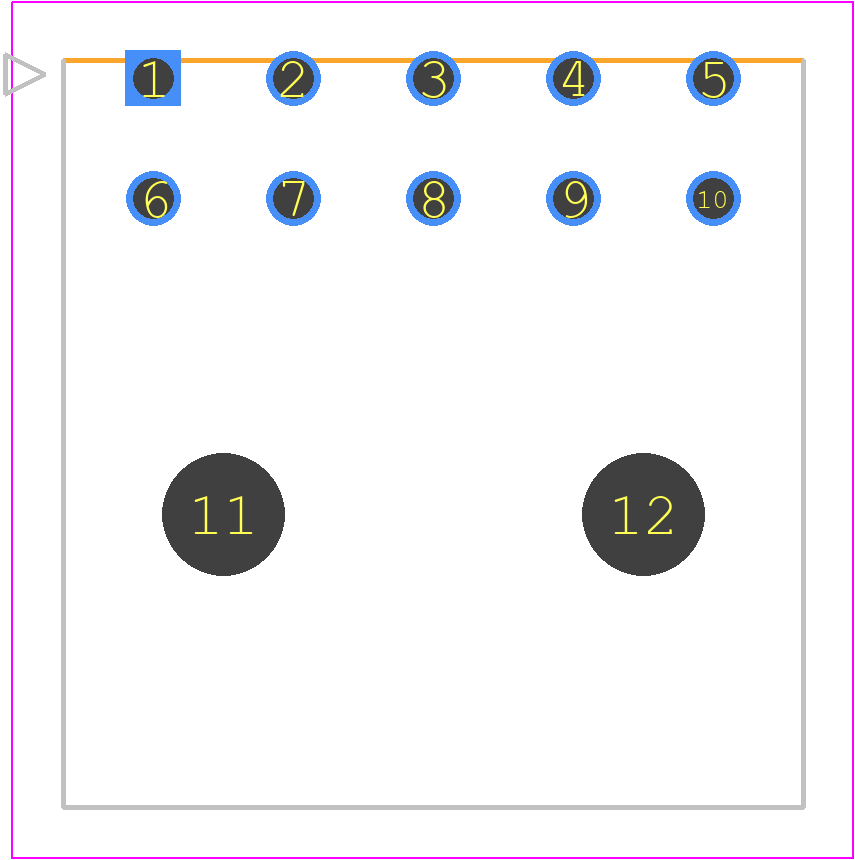

172316-1310 - Molex PCB footprint - Other - Other - 172316-YY10
click to zoom
3D Models
172316-1310 - Molex - 3D model - Other - 172316-YY10
click to zoom

172316-1310 Details

  • Manufacturer Part Number:

    172316-1310

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    Molex

  • YTEOL:

    0

  • Additional Feature:

    RATED CURRENT(POWER): 12A, POLARIZED

  • Connector Type:

    RECTANGULAR POWER CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    NOT APPLICABLE

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • Contact Style:

    SQ PIN-SKT

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • Insulator Material:

    LIQUID CRYSTAL POLYMER

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Option:

    GENERAL PURPOSE

  • Reference Standard:

    UL

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    10

  • UL Flammability Code:

    94V-0

172316-1310 Frequently Asked Questions (FAQs)

  • The recommended mating sequence for the 1723161310 connector is to mate the guide pins first, followed by the signal pins. This ensures proper alignment and prevents damage to the connector.
  • Yes, the 1723161310 connector is designed to withstand high-vibration environments. However, it's recommended to follow Molex's guidelines for vibration testing and to ensure proper mounting and strain relief to prevent connector damage.
  • The maximum cable bend radius for the 1723161310 connector is 10mm. Exceeding this radius may cause damage to the cable or connector.
  • Yes, the 1723161310 connector is designed for automated assembly processes. Molex provides guidance on automated assembly and can provide custom solutions for high-volume production.
  • The operating temperature range for the 1723161310 connector is -40°C to 105°C. However, it's recommended to consult the datasheet for specific temperature ratings and derating factors.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

172316-1310 Overview

Use the download button to access the 172316-1310 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 17231, or try a keyword search, such as Power Connectors

About Molex

Molex is a global manufacturer of connectivity solutions for various industries. The company offers a wide range of products including connectors, cables, antennas, sensors, and integrated systems. Molex's products are used in diverse applications such as automotive, telecommunications, data centers, consumer electronics, industrial automation, medical devices, and aerospace.
