1723161116 - Molex

Description: Ultra-Fit Right Angle Header, 3.50mm Pitch, Dual Row, 16 Circuits, Tin (Sn) Plating, Black, Glow Wire Capable

Download 1723161116 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1723161116 - Molex - PCB symbol
click to zoom

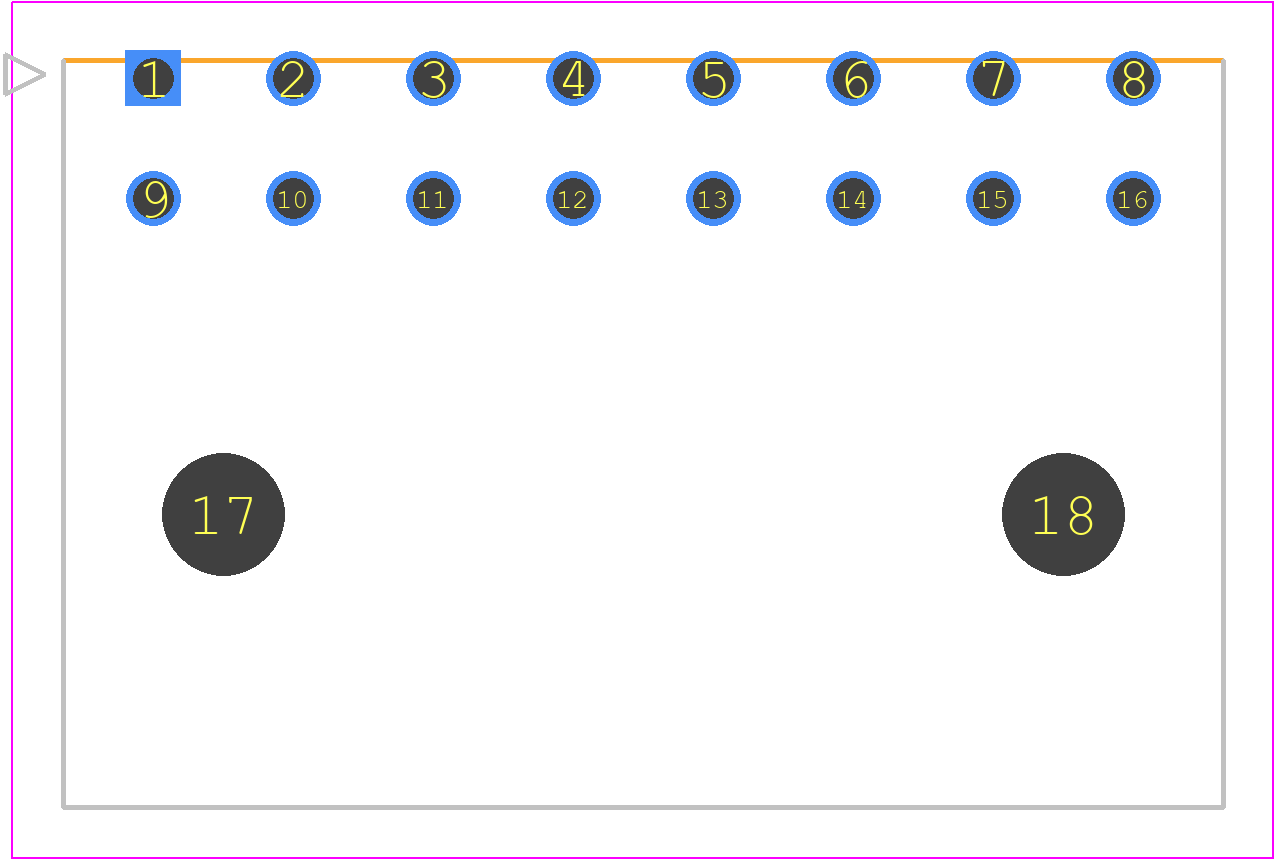

PCB Footprints
1723161116 - Molex PCB footprint - Other - Other - 172316YY16
click to zoom
3D Models
1723161116 - Molex - 3D model - Other - 172316YY16
click to zoom

1723161116 Details

  • Manufacturer Part Number:

    1723161116

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    Molex

  • YTEOL:

    0

  • Additional Feature:

    RATED CURRENT(POWER): 12A, POLARIZED

  • Connector Type:

    RECTANGULAR POWER CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    NOT APPLICABLE

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • Contact Style:

    SQ PIN-SKT

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • Insulator Material:

    LIQUID CRYSTAL POLYMER

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Option:

    GENERAL PURPOSE

  • Reference Standard:

    UL

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    16

  • UL Flammability Code:

    94V-0

1723161116 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-0.7 Nm (5-7 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
  • Yes, the 1723161116 connector is designed to withstand vibrations and can be used in high-vibration applications. However, it's crucial to ensure proper mounting and secure the connector to prevent damage or disconnection.
  • The 1723161116 connector is designed for indoor use, but it can be used in outdoor or harsh environmental applications with proper protection and sealing. It's essential to follow Molex's guidelines for environmental sealing and protection to ensure reliability.
  • The 1723161116 connector is designed to accommodate wire sizes between 24 AWG and 18 AWG. Using wire sizes outside this range may affect the connector's performance and reliability.
  • The 1723161116 connector is designed to mate with Molex's compatible connectors. While it may be possible to use it with connectors from other manufacturers, compatibility and reliability cannot be guaranteed. It's recommended to use Molex's compatible connectors to ensure optimal performance.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1723161116 Overview

Use the download button to access the 1723161116 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 17231, or try a keyword search, such as Power Connectors

About Molex

Molex is a global manufacturer of connectivity solutions for various industries. The company offers a wide range of products including connectors, cables, antennas, sensors, and integrated systems. Molex's products are used in diverse applications such as automotive, telecommunications, data centers, consumer electronics, industrial automation, medical devices, and aerospace.
