1723162108 - Molex

Description: Ultra-Fit Right Angle Header, 3.50mm Pitch, Dual Row, 8 Circuits, Tin (Sn) Plating, Natural, Glow Wire Capable

Download 1723162108 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1723162108 - Molex - PCB symbol
click to zoom
PCB Footprints

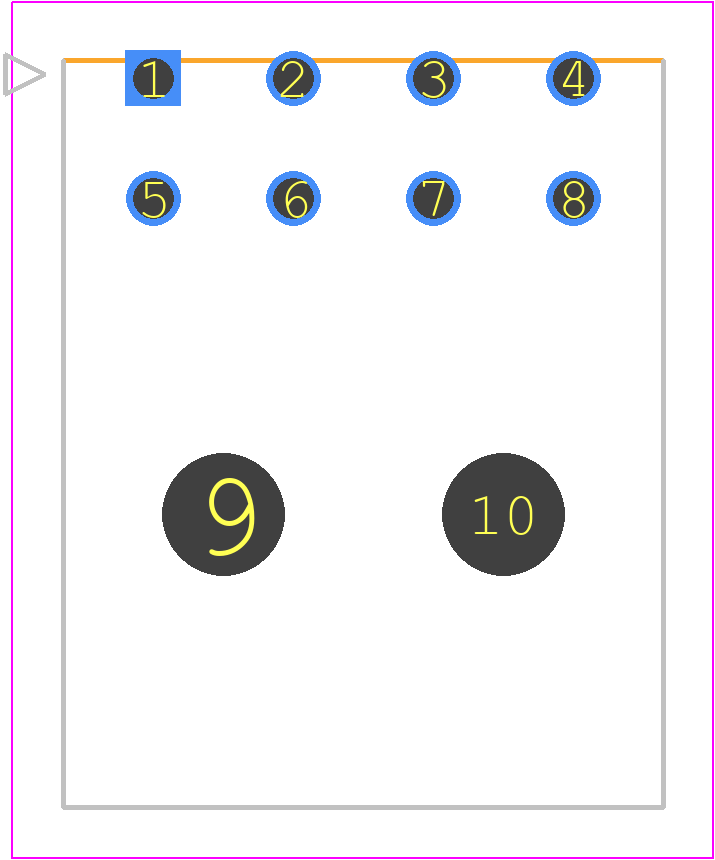

1723162108 - Molex PCB footprint - Other - Other - 172316YY08
click to zoom
3D Models
1723162108 - Molex - 3D model - Other - 172316YY08
click to zoom

1723162108 Details

  • Manufacturer Part Number:

    1723162108

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    Molex

  • YTEOL:

    0

  • Additional Feature:

    RATED CURRENT(POWER): 12A

  • Connector Type:

    RECTANGULAR POWER CONNECTOR

  • Contact Gender:

    MALE

  • Contact Style:

    SQ PIN-SKT

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • Insulator Material:

    LIQUID CRYSTAL POLYMER

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Option:

    GENERAL PURPOSE

  • Reference Standard:

    CSA; UL

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    8

  • UL Flammability Code:

    94V-0

1723162108 Frequently Asked Questions (FAQs)

  • The recommended torque specification for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs).
  • Yes, the 1723162108 connector is designed to withstand high-vibration environments, with a tested vibration resistance of 10-2000 Hz, 10G acceleration.
  • The operating temperature range for the 1723162108 connector is -40°C to 105°C (-40°F to 221°F).
  • Yes, the 1723162108 connector is designed for automated assembly and can be easily integrated into high-volume manufacturing processes.
  • The 1723162108 connector has a mating cycle life of 500 cycles minimum, ensuring reliable connections over an extended period.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1723162108 Overview

Use the download button to access the 1723162108 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 17231, or try a keyword search, such as Power Connectors

About Molex

Molex is a global manufacturer of connectivity solutions for various industries. The company offers a wide range of products including connectors, cables, antennas, sensors, and integrated systems. Molex's products are used in diverse applications such as automotive, telecommunications, data centers, consumer electronics, industrial automation, medical devices, and aerospace.
