- Part Number 17241102101
- Manufacturer HARTING
- Pin Count 110
- Part Category Connector
- Package Category Other

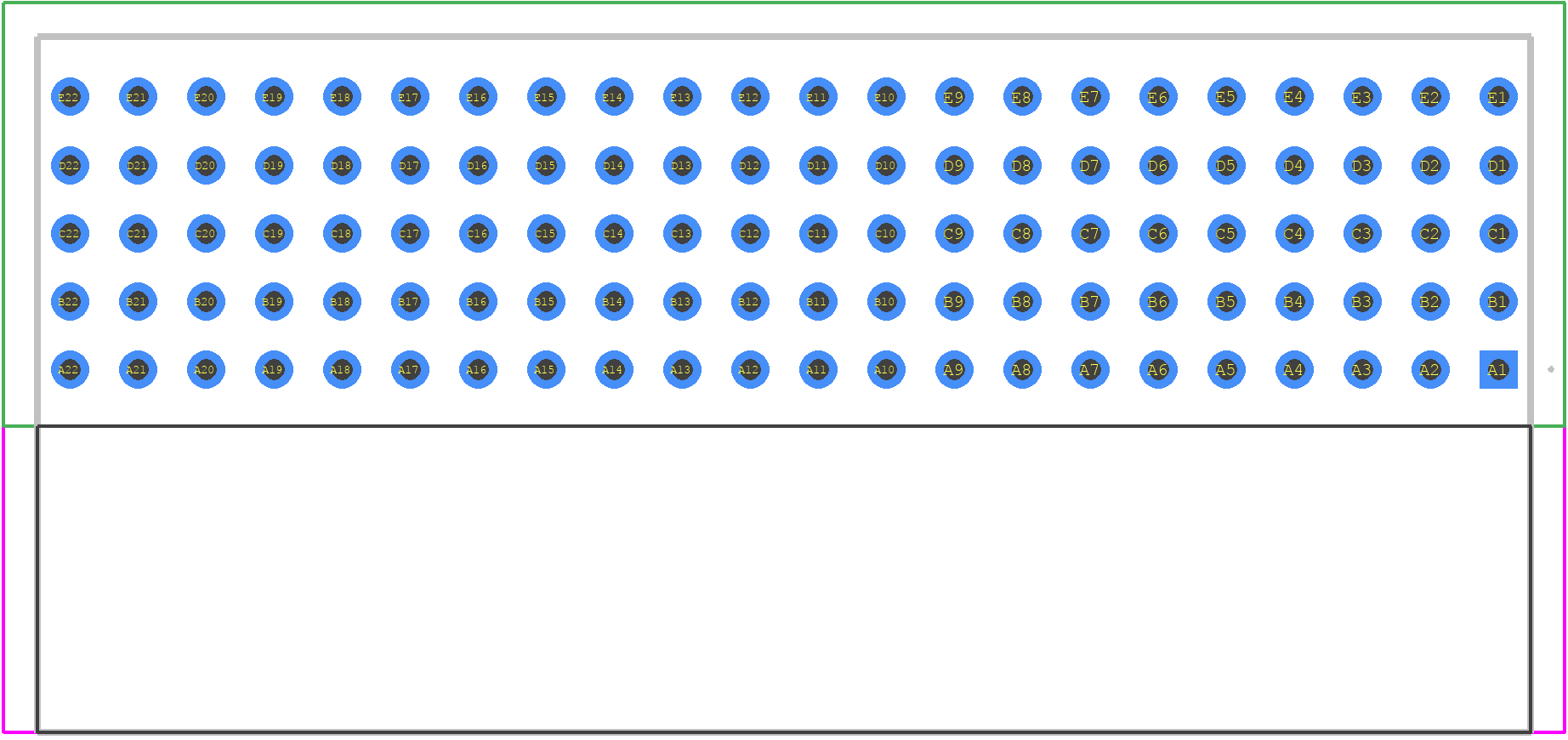

- Footprint Name Other - 17241102101
- Released Date Jul 4, 2021
- Last Modified Date May 24, 2023 9:08 AM UTC
- Pinout / Pin List Click Here (Member Only)
17241102101 Details
-
Manufacturer Part Number:
17241102101
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Country Of Origin:
Germany
-
ECCN Code:
EAR99
-
HTS Code:
8536.69.40.40
-
Manufacturer:
HARTING Technology Group
-
YTEOL:
8
-
Additional Feature:
PICMG, STANDARD: IEC 61076-4-101
-
Connector Type:
BOARD CONNECTOR
17241102101 Frequently Asked Questions (FAQs)
-
The recommended torque value is 0.5 Nm to 1.5 Nm, but it's essential to consult the specific PCB design and material to ensure the correct torque value.
-
To ensure reliable connections in high-vibration environments, use a secure screw connection, and consider adding a secondary locking mechanism, such as a wire or adhesive, to prevent connector detachment.
-
The maximum operating temperature for the 17241102101 connector is 125°C, but it's essential to consider the specific application and environmental conditions to ensure reliable operation.
-
Yes, the 17241102101 connector is designed for use in harsh environmental conditions, including outdoor applications, but it's crucial to ensure proper sealing and protection to maintain IP67 or higher ratings.
-
The recommended mating cycle for the 17241102101 connector is up to 500 mating cycles, but this may vary depending on the specific application and environmental conditions.
Trust Checks
Manufacturer Collaborated
System Verified
Community Approved
17241102101 Overview
Use the download button to access the 17241102101 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 17241,
or try a keyword search, such as Headers and Edge Type Connectors
