1724470708 - Molex

Description: Mini-Fit Versa Color Header, Dual Row, Vertical, with Snap-in Plastic Peg PCB Lock, 8 Circuits, Nylon 6/6, UL 94V-0, Tin (Sn) Plating, Glow-Wire Capable, Natural

Download 1724470708 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1724470708 - Molex - PCB symbol
click to zoom
PCB Footprints

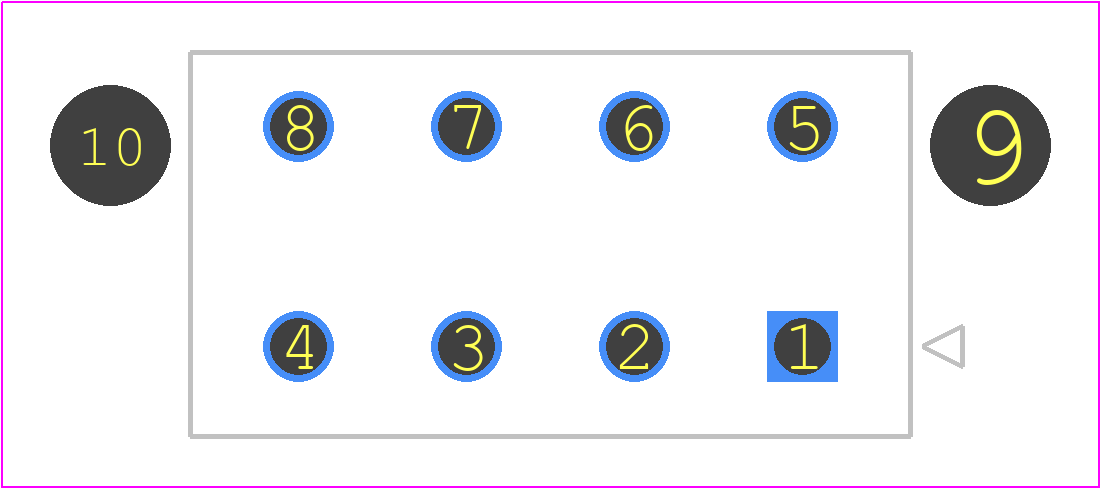

1724470708 - Molex PCB footprint - Other - Other - 172447YY08
click to zoom
3D Models
1724470708 - Molex - 3D model - Other - 172447YY08
click to zoom

1724470708 Details

  • Manufacturer Part Number:

    1724470708

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mexico

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    Molex

  • YTEOL:

    8

  • Additional Feature:

    Rated Current (Power) (A): 9A

  • Body Breadth:

    0.38 inch

  • Body Depth:

    0.5 inch

  • Body Length:

    0.71 inch

  • Connector Type:

    RECTANGULAR POWER CONNECTOR

  • Contact Gender:

    MALE

  • Contact Style:

    SQ PIN-SKT

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • Insulator Material:

    POLYAMIDE

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Option:

    GENERAL PURPOSE

  • Reference Standard:

    UL

  • Shell Material:

    BRASS

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    8

  • UL Flammability Code:

    94V-2

1724470708 Frequently Asked Questions (FAQs)

  • The recommended mating sequence for the 1724470708 connector is to mate the guide pins first, followed by the signal pins. This ensures proper alignment and prevents damage to the connector.
  • Yes, the 1724470708 connector is designed to withstand high-vibration environments. However, it's essential to follow proper mounting and fastening procedures to ensure the connector remains secure.
  • The maximum cable bend radius for the 1724470708 connector is 10mm. Exceeding this radius may cause damage to the cable or connector.
  • Yes, the 1724470708 connector is designed for automated assembly processes. It features a pick-and-place compatible design and can be easily integrated into automated manufacturing lines.
  • The operating temperature range for the 1724470708 connector is -40°C to 105°C. However, it's essential to note that the connector's performance may degrade at extreme temperatures.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1724470708 Overview

Use the download button to access the 1724470708 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 17244, or try a keyword search, such as Power Connectors

About Molex

Molex is a global manufacturer of connectivity solutions for various industries. The company offers a wide range of products including connectors, cables, antennas, sensors, and integrated systems. Molex's products are used in diverse applications such as automotive, telecommunications, data centers, consumer electronics, industrial automation, medical devices, and aerospace.
