The recommended torque value is 0.5 Nm to 1.5 Nm, but it's essential to consult the specific PCB design and material to ensure the correct torque value.
Yes, the 17250951102 connector is designed to withstand vibrations up to 10g according to IEC 61373. However, it's crucial to ensure proper mounting and screwing to maintain the connector's integrity.
The 17250951102 connector has an IP67 rating, which means it can withstand temporary immersion in water up to 1 meter for 30 minutes. However, it's essential to ensure proper sealing and cable management to maintain the IP67 rating.
The 17250951102 connector is designed to operate within a temperature range of -40°C to 125°C. However, it's essential to consider the specific application and environmental conditions to ensure the connector's reliability.
The 17250951102 connector is designed for use with cables of 24 AWG to 20 AWG. Using cables with different gauges may affect the connector's performance and reliability.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
17250951102 Overview

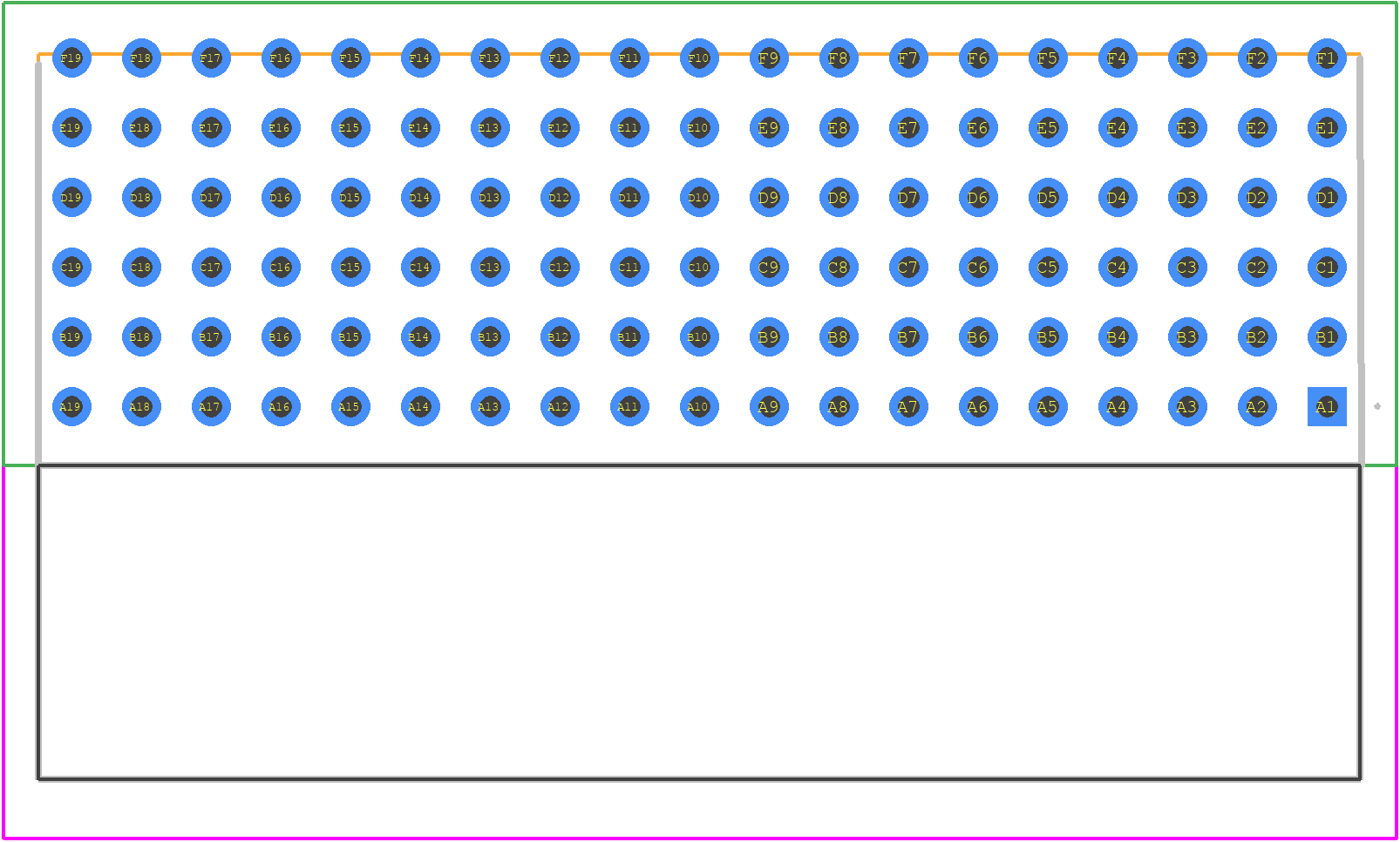

Use the download button to access the 17250951102 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 17250,
or try a keyword search, such as Headers and Edge Type Connectors
