1725724 - Phoenix Contact

Description: MPT 0,5/ 9-2,54 - Printed circuit board terminal, nominal current: 6 A, rated voltage (III/2): 160 V, nominal cross section: 0.5 mm<sup>2</sup>, number of potentials: 9, number of rows: 1, number of positions per row: 9, product range: MPT 0,5, pitch: 2.54 mm, connection method: Screw connection with tension sleeve, screw head form: L Slotted, mounting: Wave soldering, conductor/PCB connection direction: 0 °, color: green, Pin layout: Linear pinning, Solder pin [P]: 3.5 mm, number of solder pins per potenti

Download 1725724 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1725724 - Phoenix Contact - PCB symbol
click to zoom
PCB Footprints

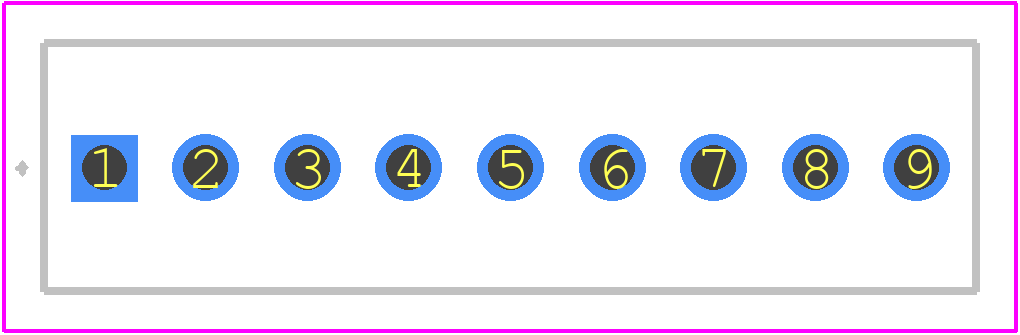

1725724 - Phoenix Contact PCB footprint - Other - Other - 1725724_1
click to zoom
3D Models
1725724 - Phoenix Contact - 3D model - Other - 1725724_1
click to zoom

1725724 Details

  • Manufacturer Part Number:

    1725724

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Germany

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Phoenix Contact

  • YTEOL:

    6.58

  • Additional Feature:

    POLYAMIDE, 94V-0

  • Fastening Method:

    SCREW

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    9

  • Rated Current:

    6 A

  • Rated Voltage:

    63 V

  • Safety Approval:

    UL; CSA

  • Terminal and Terminal Block Type:

    MODULAR TERMINAL BLOCK

  • Wire Cross Section:

    0.5 mm2

  • Wire Gauge:

    20 AWG

1725724 Frequently Asked Questions (FAQs)

  • The recommended torque is 0.5 Nm to 1.5 Nm, but it's essential to consult the specific PCB design and layout to ensure proper mounting.
  • While the 1725724 is a robust connector, it's not specifically designed for high-vibration applications. For such use cases, consider using connectors with additional locking mechanisms or specialized vibration-resistant designs.
  • The 1725724 is designed for indoor use. For outdoor or harsh environmental applications, consider using connectors with IP67 or higher ratings, and ensure the connector is properly sealed and protected.
  • The 1725724 is rated for 12 A per contact. For higher current applications, consider using connectors with heavier gauge contacts or specialized high-current designs.
  • Yes, ensure the PCB layout provides sufficient clearance around the connector, and consider using a ground plane to reduce electromagnetic interference (EMI). Consult the Phoenix Contact application notes for specific guidance.
