1727104 - Phoenix Contact

Description: MKDS 1/11-3,81 - Printed circuit board terminal, nominal current: 17.5 A, rated voltage (III/2): 200 V, nominal cross section: 1.5 mm<sup>2</sup>, number of potentials: 11, number of rows: 1, number of positions per row: 11, product range: MKDS 1, pitch: 3.81 mm, connection method: Screw connection with tension sleeve, screw head form: L Slotted, mounting: Wave soldering, conductor/PCB connection direction: 0 °, color: green, Pin layout: Linear pinning, Solder pin [P]: 3.5 mm, number of solder pins per pote

Download 1727104 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1727104 - Phoenix Contact - PCB symbol
click to zoom
PCB Footprints

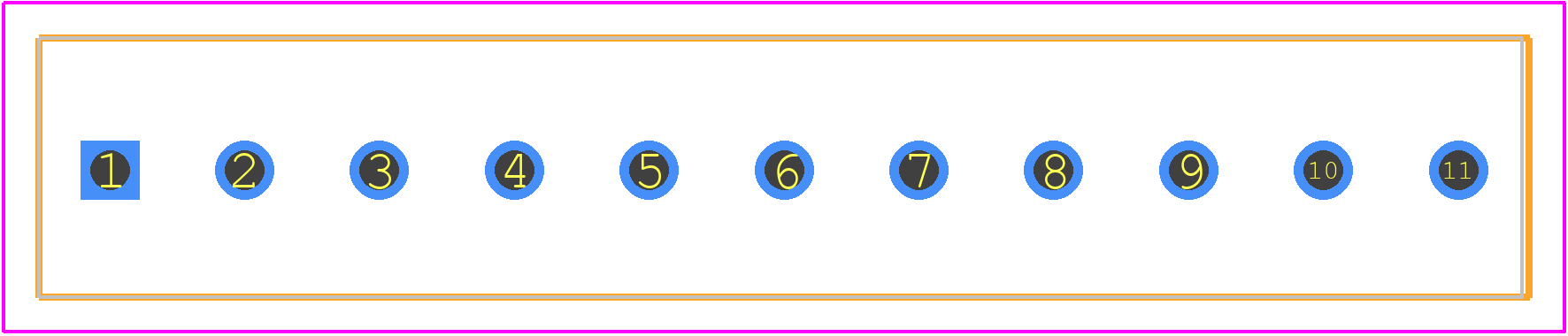

1727104 - Phoenix Contact PCB footprint - Other - Other - 1727104-2
click to zoom
3D Models
1727104 - Phoenix Contact - 3D model - Other - 1727104-2
click to zoom

1727104 Details

  • Manufacturer Part Number:

    1727104

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Country Of Origin:

    Germany

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Phoenix Contact

  • YTEOL:

    7

  • Additional Feature:

    PA, 94V-0

  • Fastening Method:

    SCREW

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    11

  • Rated Current:

    10 A

  • Rated Voltage:

    160 V

  • Safety Approval:

    UL

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

  • Wire Cross Section:

    1 mm2

  • Wire Gauge:

    16 AWG

1727104 Frequently Asked Questions (FAQs)

  • The recommended torque is 0.6 Nm to 1.2 Nm, depending on the specific application and panel material. It's essential to consult the Phoenix Contact torque guide for precise values.
  • Yes, the 1727104 connector is designed to withstand vibrations up to 10 g according to IEC 60068-2-6. However, it's crucial to ensure proper mounting and screwing to maintain the connector's integrity.
  • The 1727104 connector has a protection rating of IP67, making it suitable for outdoor use and harsh environments. However, it's essential to consider additional protection measures, such as sealing or conformal coating, depending on the specific application.
  • While the datasheet specifies a particular wire gauge, it's possible to use a different gauge with some limitations. Consult Phoenix Contact's wire gauge compatibility chart or contact their technical support for guidance on specific wire gauge combinations.
  • To ensure proper mating and unmating, follow the recommended mating and unmating forces specified in the datasheet. Additionally, ensure the connector is properly aligned and seated during mating, and use the correct tools for unmating.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1727104 Overview

Use the download button to access the 1727104 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 17271, or try a keyword search, such as Terminals and Terminal Blocks

About Phoenix Contact

Phoenix Contact is a market leader in industrial automation and connectivity solutions headquartered in Germany. They manufacture terminal blocks, relays, connectors, power supplies, controllers, networking devices, and surge suppression devices for many applications. Phoenix Contact provides innovative solutions for the automotive / e-mobility, building, rail and city infrastructure, power and energy, and industrial industries.
