1727890000 - Weidmüller

Description: PCB connector (board connection), 125 V, 10 A, Pitch in mm: 3.50, Number of poles: 18, THT solder connection, Box

Download 1727890000 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1727890000 - Weidmüller - PCB symbol
click to zoom
PCB Footprints

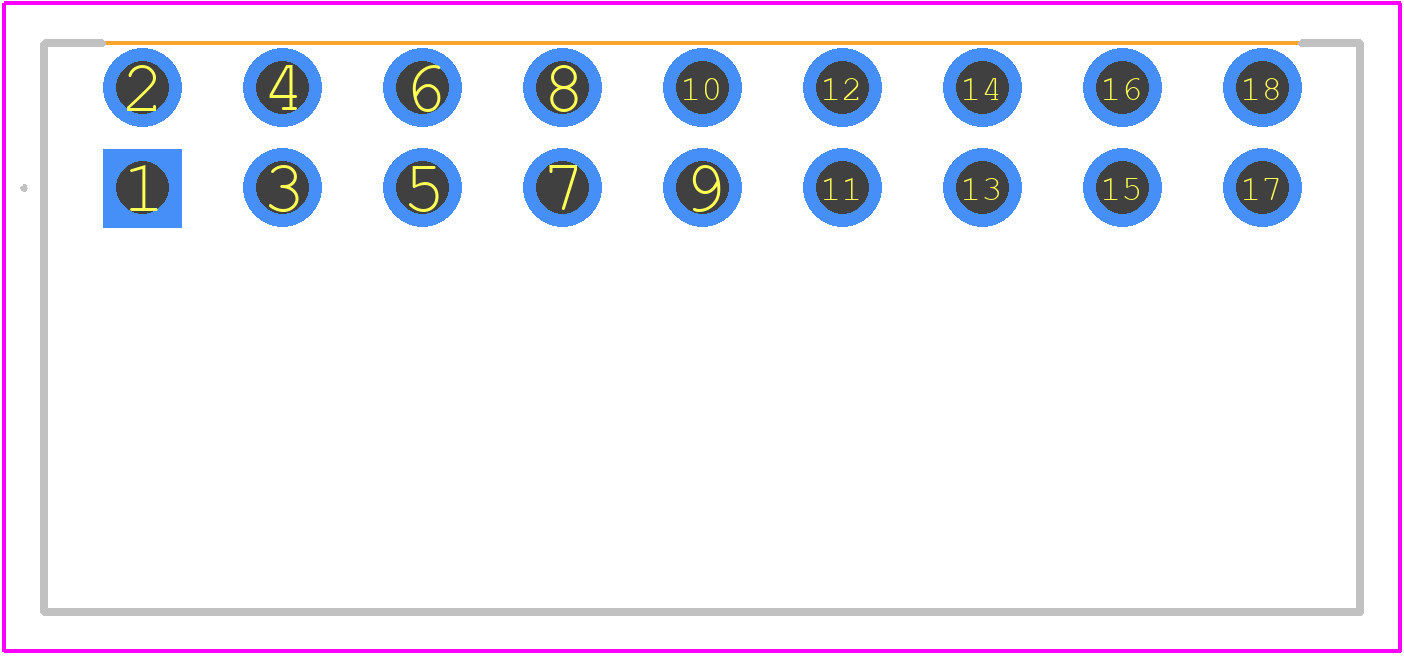

1727890000 - Weidmüller PCB footprint - Other - Other - 1727890000
click to zoom
3D Models
1727890000 - Weidmüller - 3D model - Other - 1727890000
click to zoom

1727890000 Details

  • Manufacturer Part Number:

    1727890000

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    10 Weeks

  • Manufacturer:

    Weidmüller Interface GmbH & Co. KG

  • YTEOL:

    6.75

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Tin (Sn)

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e3

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    2

  • Option:

    GENERAL PURPOSE

  • Terminal Pitch:

    3.5 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    18

1727890000 Frequently Asked Questions (FAQs)

  • The operating temperature range of the 1727890000 is -40°C to 85°C, as specified by Weidmüller.
  • Yes, the 1727890000 is designed to be compatible with various industrial automation protocols, including PROFINET and EtherNet/IP, making it suitable for use in industrial automation applications.
  • The maximum cable length supported by the 1727890000 depends on the specific application and cable type used. However, as a general guideline, Weidmüller recommends a maximum cable length of 100 meters for most industrial Ethernet applications.
  • The 1727890000 has built-in surge protection, which meets the requirements of IEC 61000-4-5. However, depending on the specific application and environmental conditions, additional external protection may be necessary to ensure the device's reliability and safety.
  • The 1727890000 is not designed for use in hazardous locations and does not have any explosion-proof certifications. If you need a device for use in hazardous locations, you should consider a different product that meets the necessary safety standards and certifications.
