1727960000 - Weidmüller

Description: PCB connector (board connection), 125 V, 10 A, Pitch in mm: 3.50, Number of poles: 32, THT solder connection, Box

Download 1727960000 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1727960000 - Weidmüller - PCB symbol
click to zoom
PCB Footprints

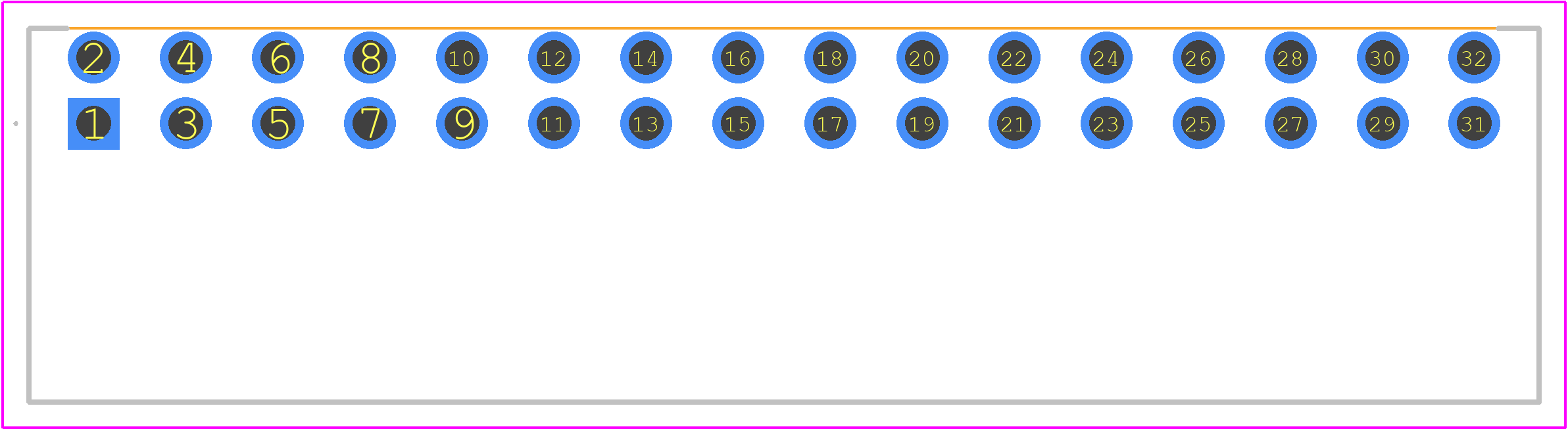

1727960000 - Weidmüller PCB footprint - Other - Other - 1727960000
click to zoom
3D Models
1727960000 - Weidmüller - 3D model - Other - 1727960000
click to zoom

1727960000 Details

  • Manufacturer Part Number:

    1727960000

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Weidmüller Interface GmbH & Co. KG

  • YTEOL:

    6.75

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Tin (Sn)

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e3

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    2

  • Option:

    GENERAL PURPOSE

  • Terminal Pitch:

    3.5 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    32

1727960000 Frequently Asked Questions (FAQs)

  • The operating temperature range of the 1727960000 is -40°C to 85°C, making it suitable for use in a wide range of industrial applications.
  • Yes, the 1727960000 is compatible with industrial protocols such as PROFINET and EtherNet/IP, making it suitable for use in industrial automation applications.
  • The maximum cable length supported by the 1727960000 is 100 meters, making it suitable for use in industrial applications where devices are located at a distance from each other.
  • Yes, the 1727960000 has built-in surge protection, which helps to protect the device from voltage surges and spikes, ensuring reliable operation in harsh industrial environments.
  • The 1727960000 is designed to meet the requirements of hazardous locations, such as those found in the oil and gas, chemical, and pharmaceutical industries, and is certified to relevant standards such as ATEX and IECEx.
