1728365 - Phoenix Contact

Description: SMKDS 1/10-3,81 - Printed circuit board terminal, nominal current: 10 A, rated voltage (III/2): 200 V, nominal cross section: 1 mm<sup>2</sup>, number of potentials: 10, number of rows: 1, number of positions per row: 10, product range: SMKDS 1, pitch: 3.81 mm, connection method: Screw connection with tension sleeve, screw head form: L Slotted, mounting: Wave soldering, conductor/PCB connection direction: 35 °, color: green, Pin layout: Linear pinning, Solder pin [P]: 3.5 mm, number of solder pins per poten

Download 1728365 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1728365 - Phoenix Contact - PCB symbol
click to zoom
PCB Footprints

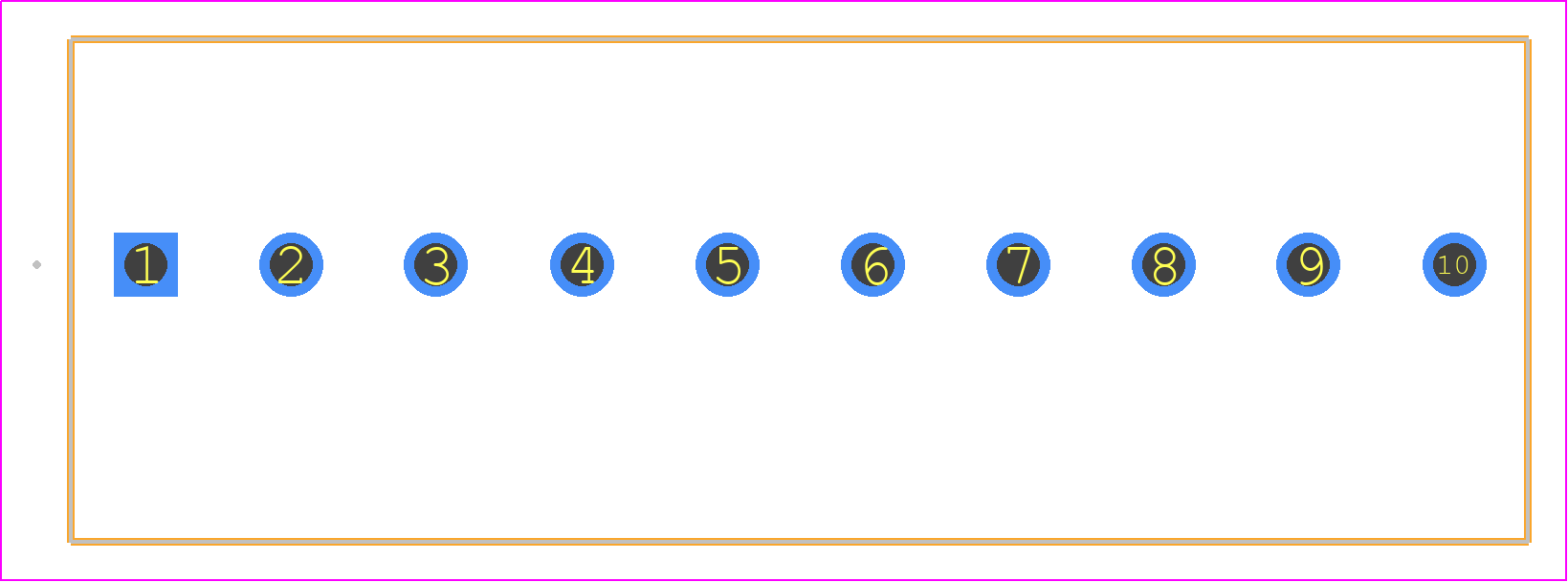

1728365 - Phoenix Contact PCB footprint - Other - Other - 1728365
click to zoom
3D Models
1728365 - Phoenix Contact - 3D model - Other - 1728365
click to zoom

1728365 Details

  • Manufacturer Part Number:

    1728365

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Country Of Origin:

    Germany

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Phoenix Contact

  • YTEOL:

    7.87

  • Additional Feature:

    PA, 94V-0

  • Fastening Method:

    SCREW

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    10

  • Rated Current:

    10 A

  • Rated Voltage:

    160 V

  • Safety Approval:

    UL

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

  • Wire Cross Section:

    1 mm2

  • Wire Gauge:

    16 AWG

1728365 Frequently Asked Questions (FAQs)

  • The recommended torque is 0.6 Nm to 1.2 Nm, but it's essential to consult the specific application and Phoenix Contact's guidelines for precise torque values.
  • Yes, the 1728365 connector is designed to withstand vibrations and shocks. However, it's crucial to ensure proper mounting and secure connections to maintain reliability in high-vibration applications.
  • The 1728365 connector has a IP67 rating, making it suitable for outdoor use and harsh environments. However, it's essential to consider additional protection measures, such as sealing or conformal coating, depending on the specific application.
  • The 1728365 connector is rated for operation between -40°C to 125°C. However, it's essential to consider derating and thermal management in high-temperature applications.
  • Yes, the 1728365 connector is designed to be compatible with other Phoenix Contact products. However, it's essential to verify compatibility with third-party components and ensure proper mating and connection.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1728365 Overview

Use the download button to access the 1728365 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 17283, or try a keyword search, such as Terminals and Terminal Blocks

About Phoenix Contact

Phoenix Contact is a market leader in industrial automation and connectivity solutions headquartered in Germany. They manufacture terminal blocks, relays, connectors, power supplies, controllers, networking devices, and surge suppression devices for many applications. Phoenix Contact provides innovative solutions for the automotive / e-mobility, building, rail and city infrastructure, power and energy, and industrial industries.
