1728381 - Phoenix Contact

Description: SMKDS 1/12-3,81 - Printed circuit board terminal, nominal current: 10 A, rated voltage (III/2): 200 V, nominal cross section: 1 mm<sup>2</sup>, number of potentials: 12, number of rows: 1, number of positions per row: 12, product range: SMKDS 1, pitch: 3.81 mm, connection method: Screw connection with tension sleeve, screw head form: L Slotted, mounting: Wave soldering, conductor/PCB connection direction: 35 °, color: green, Pin layout: Linear pinning, Solder pin [P]: 3.5 mm, number of solder pins per poten

Download 1728381 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1728381 - Phoenix Contact - PCB symbol
click to zoom
PCB Footprints

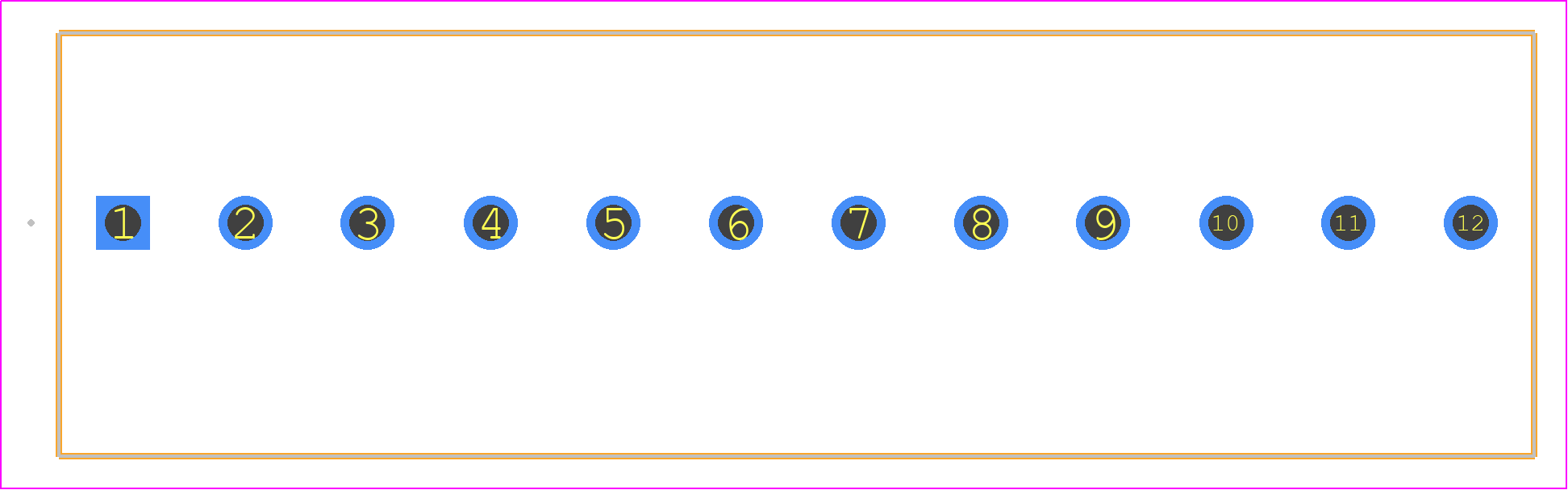

1728381 - Phoenix Contact PCB footprint - Other - Other - 1728381
click to zoom
3D Models
1728381 - Phoenix Contact - 3D model - Other - 1728381
click to zoom

1728381 Details

  • Manufacturer Part Number:

    1728381

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Country Of Origin:

    Germany

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Phoenix Contact

  • YTEOL:

    7

  • Additional Feature:

    PA, 94V-0

  • Fastening Method:

    SCREW

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    12

  • Rated Current:

    10 A

  • Rated Voltage:

    160 V

  • Safety Approval:

    UL

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

  • Wire Cross Section:

    1 mm2

  • Wire Gauge:

    16 AWG

1728381 Frequently Asked Questions (FAQs)

  • The recommended torque is 0.6 Nm to 1.2 Nm, depending on the specific application and panel material.
  • Yes, the connector is rated IP67, making it suitable for outdoor use and able to withstand exposure to water and dust.
  • No, the connector is designed for use with wire gauges AWG 18 to AWG 24. Using a larger wire gauge may compromise the connection's reliability.
  • Yes, the 1728381 connector is part of the Phoenix Contact COMBICON series, which is compatible with other connectors in the same series.
  • The operating temperature range for the 1728381 connector is -40°C to +125°C, making it suitable for use in a wide range of industrial and commercial applications.
