1728600000 - Weidmüller

Description: PCB connector (board connection), 125 V, 10 A, Pitch in mm: 3.50, Number of poles: 32, THT solder connection, Box

Download 1728600000 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

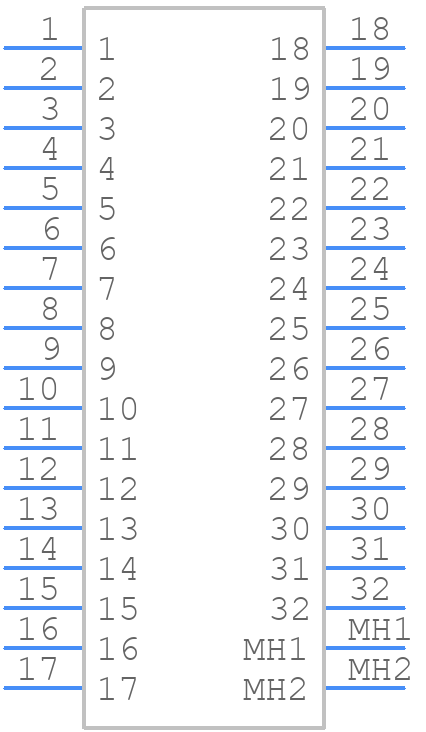

1728600000 - Weidmüller - PCB symbol
click to zoom
PCB Footprints

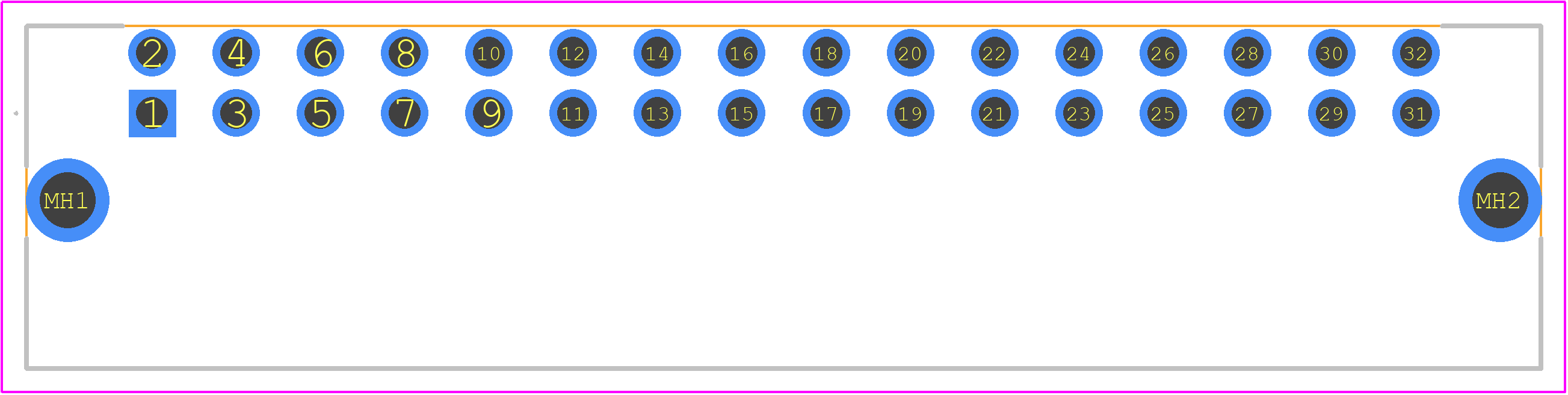

1728600000 - Weidmüller PCB footprint - Other - Other - 1728600000-1
click to zoom
3D Models
1728600000 - Weidmüller - 3D model - Other - 1728600000-1
click to zoom

1728600000 Details

  • Manufacturer Part Number:

    1728600000

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Weidmüller Interface GmbH & Co. KG

  • YTEOL:

    6.75

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Tin (Sn)

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e3

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    2

  • Option:

    GENERAL PURPOSE

  • Terminal Pitch:

    3.5 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    32

1728600000 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5 Nm to 1.5 Nm, depending on the wire size and type.
  • Yes, the 1728600000 is designed to withstand vibrations up to 10g according to IEC 60068-2-6. However, it's recommended to consult with Weidmüller's technical support for specific application guidance.
  • The 1728600000 has a protection rating of IP67, making it suitable for outdoor use. However, it's essential to ensure proper sealing and installation to maintain the IP rating.
  • The 1728600000 has an operating temperature range of -40°C to 125°C. However, it's recommended to consult the datasheet for specific temperature derating information.
  • While it's technically possible to use a different wire gauge, it's not recommended as it may affect the connector's performance and reliability. It's best to stick to the recommended wire gauge range for optimal results.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1728600000 Overview

Use the download button to access the 1728600000 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 17286, or try a keyword search, such as Headers and Edge Type Connectors
