1728640000 - Weidmüller

Description: PCB connector (board connection), 125 V, 10 A, Pitch in mm: 3.50, Number of poles: 8, THT solder connection, Box

Download 1728640000 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1728640000 - Weidmüller - PCB symbol
click to zoom

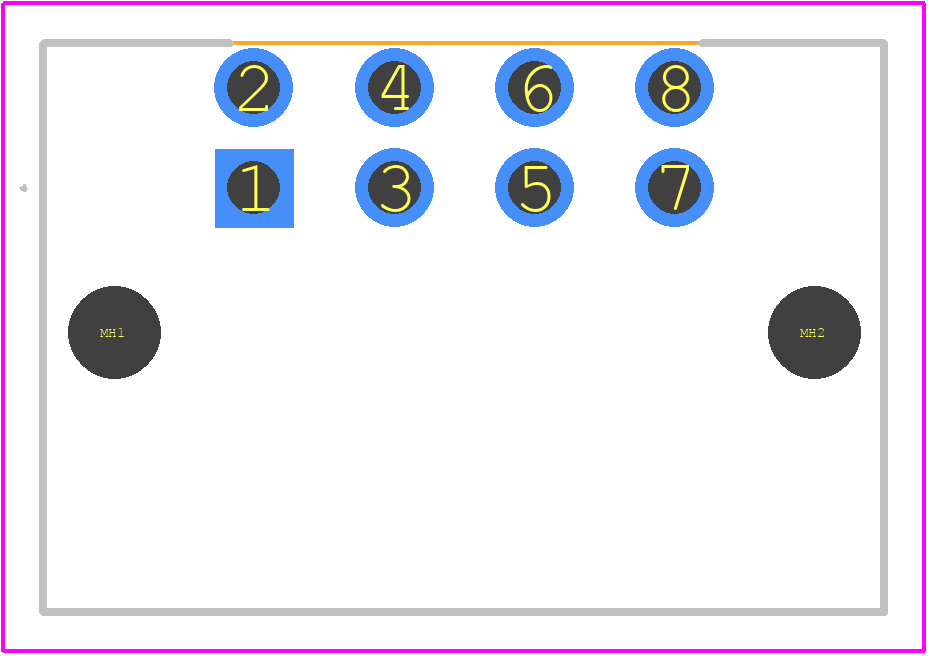

PCB Footprints
1728640000 - Weidmüller PCB footprint - Other - Other - 1728640000
click to zoom
3D Models
1728640000 - Weidmüller - 3D model - Other - 1728640000
click to zoom

1728640000 Details

  • Manufacturer Part Number:

    1728640000

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    7 Weeks, 1 Day

  • Manufacturer:

    Weidmüller Interface GmbH & Co. KG

  • YTEOL:

    6.75

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Tin (Sn)

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e3

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    2

  • Option:

    GENERAL PURPOSE

  • Terminal Pitch:

    3.5 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    8

1728640000 Frequently Asked Questions (FAQs)

  • The operating temperature range for the 1728640000 is -40°C to 70°C, according to the manufacturer's specifications.
  • Yes, the 1728640000 is compatible with industrial automation protocols such as PROFINET, EtherNet/IP, and Modbus TCP, making it suitable for use in industrial automation applications.
  • The maximum data transfer rate of the 1728640000 is 100 Mbps, making it suitable for high-speed data transmission applications.
  • Yes, the 1728640000 is designed to operate in harsh environments and has a high level of resistance to shock, vibration, and electromagnetic interference (EMI).
  • Yes, the 1728640000 is designed to meet the requirements of safety-critical applications, including those in the industrial automation, transportation, and medical device industries.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1728640000 Overview

Use the download button to access the 1728640000 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 17286, or try a keyword search, such as Headers and Edge Type Connectors
