1728650000 - Weidmüller

Description: PCB connector (board connection), 125 V, 10 A, Pitch in mm: 3.50, Number of poles: 10, THT solder connection, Box

Download 1728650000 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1728650000 - Weidmüller - PCB symbol
click to zoom
PCB Footprints

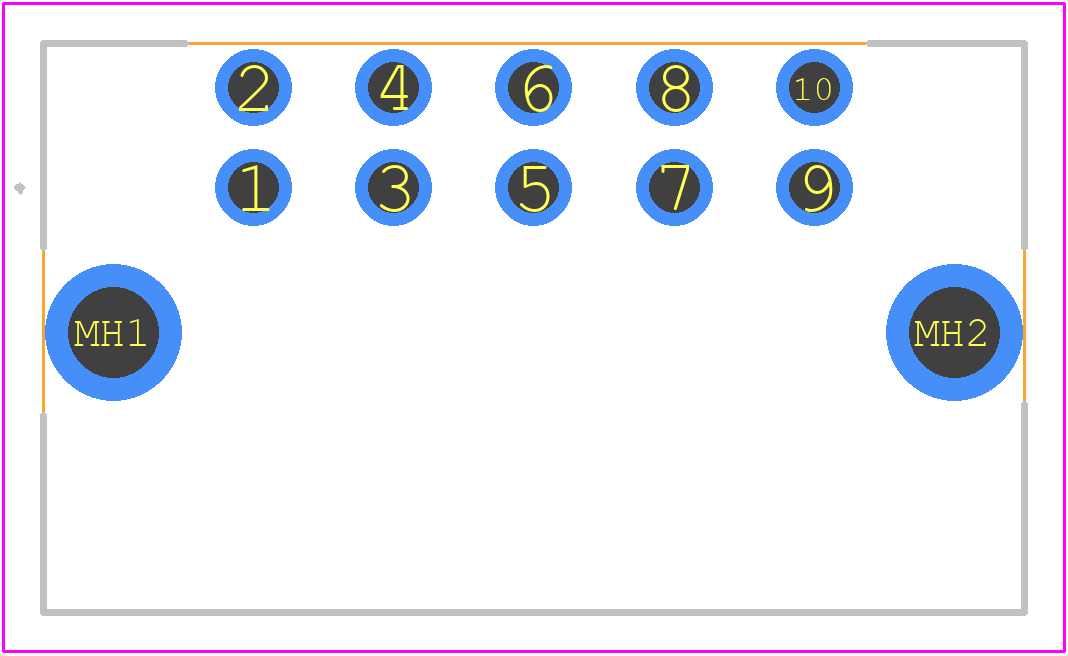

1728650000 - Weidmüller PCB footprint - Other - Other - 1728650000-2
click to zoom
3D Models
1728650000 - Weidmüller - 3D model - Other - 1728650000-2
click to zoom

1728650000 Details

  • Manufacturer Part Number:

    1728650000

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    28 Weeks, 4 Days

  • Manufacturer:

    Weidmüller Interface GmbH & Co. KG

  • YTEOL:

    6.75

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Tin (Sn)

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e3

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    2

  • Option:

    GENERAL PURPOSE

  • Terminal Pitch:

    3.5 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    10

1728650000 Frequently Asked Questions (FAQs)

  • The operating temperature range of the 1728650000 is -40°C to 85°C, making it suitable for use in a wide range of industrial applications.
  • Yes, the 1728650000 is designed for DIN rail mounting, making it easy to install and integrate into existing systems.
  • The maximum current rating of the 1728650000 is 10A per contact, making it suitable for use in applications that require high current handling.
  • Yes, the 1728650000 is RoHS and REACH compliant, making it suitable for use in applications that require compliance with these regulations.
  • The 1728650000 has an IP20 rating, providing protection against solid objects and fingers, but not against water or moisture.
