1728660000 - Weidmüller

Description: PCB connector (board connection), 125 V, 10 A, Pitch in mm: 3.50, Number of poles: 12, THT solder connection, Box

Download 1728660000 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1728660000 - Weidmüller - PCB symbol
click to zoom

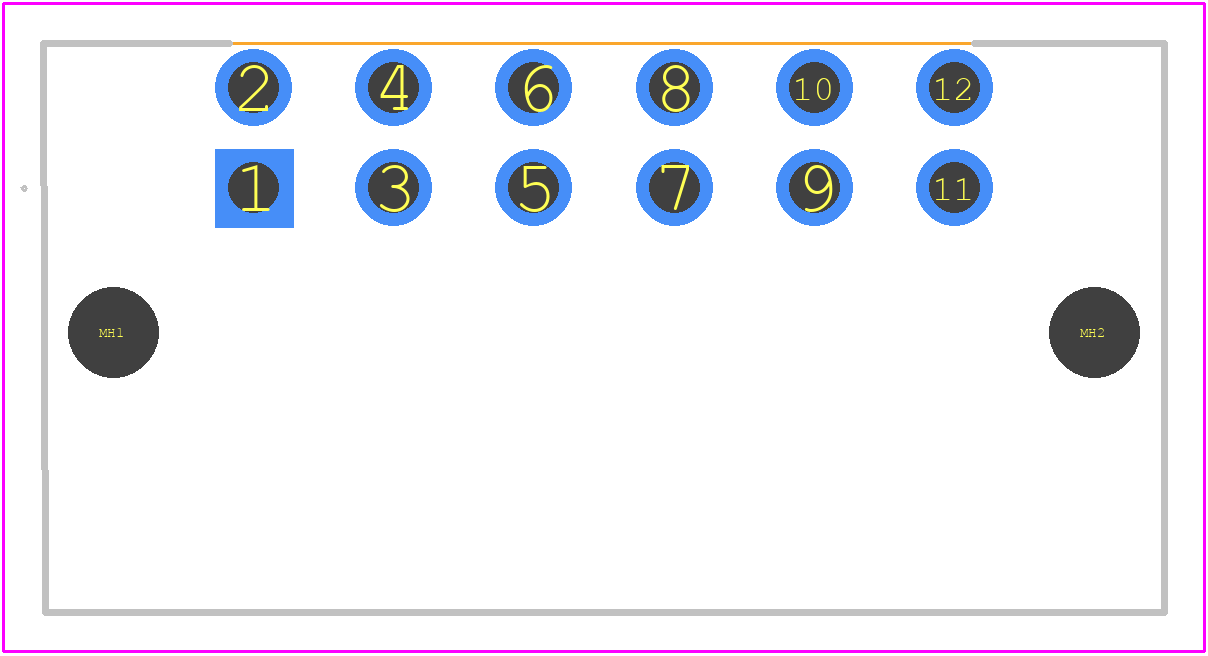

PCB Footprints
1728660000 - Weidmüller PCB footprint - Other - Other - 1728660000
click to zoom
3D Models
1728660000 - Weidmüller - 3D model - Other - 1728660000
click to zoom

1728660000 Details

  • Manufacturer Part Number:

    1728660000

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    10 Weeks

  • Manufacturer:

    Weidmüller Interface GmbH & Co. KG

  • YTEOL:

    6.75

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED
