1729115 - Phoenix Contact

Description: MKDSN 1,5/12 - Printed circuit board terminal, nominal current: 17.5 A, rated voltage (III/2): 400 V, nominal cross section: 1.5 mm<sup>2</sup>, number of potentials: 12, number of rows: 1, number of positions per row: 12, product range: MKDSN 1,5, pitch: 5 mm, connection method: Screw connection with tension sleeve, screw head form: L Slotted, mounting: Wave soldering, conductor/PCB connection direction: 0 °, color: green, Pin layout: Linear pinning, Solder pin [P]: 3.5 mm, number of solder pins per potent

Download 1729115 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1729115 - Phoenix Contact - PCB symbol
click to zoom
PCB Footprints

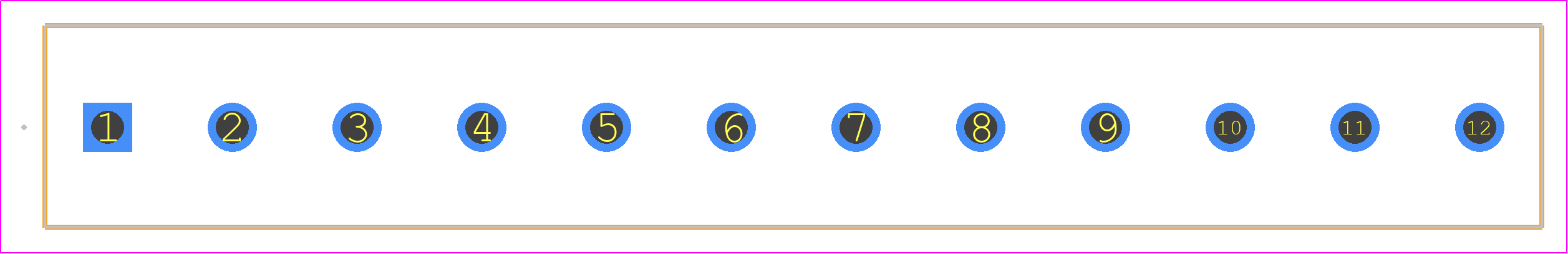

1729115 - Phoenix Contact PCB footprint - Other - Other - 1729115
click to zoom
3D Models
1729115 - Phoenix Contact - 3D model - Other - 1729115
click to zoom

1729115 Details

  • Manufacturer Part Number:

    1729115

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Country Of Origin:

    Germany

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Phoenix Contact

  • YTEOL:

    6.88

  • Additional Feature:

    PA, 94V-0

  • Fastening Method:

    SCREW

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    12

  • Rated Current:

    13.5 A

  • Rated Voltage:

    250 V

  • Safety Approval:

    UL

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

  • Wire Cross Section:

    1.5 mm2

  • Wire Gauge:

    16 AWG

1729115 Frequently Asked Questions (FAQs)

  • The recommended torque is 0.6 Nm to 1.2 Nm, as specified in the Phoenix Contact manual.
  • Yes, the 1729115 connector is designed to withstand vibrations up to 10 g according to IEC 61373, making it suitable for high-vibration applications.
  • Yes, the 1729115 connector is designed to be compatible with other Phoenix Contact products, including their range of connectors, cables, and terminals.
  • The operating temperature range for the 1729115 connector is -40°C to 125°C, making it suitable for use in a wide range of environments.
  • Yes, the 1729115 connector is designed to be resistant to humidity and moisture, with an IP67 rating, making it suitable for use in humid or wet environments.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1729115 Overview

Use the download button to access the 1729115 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 17291, or try a keyword search, such as Terminals and Terminal Blocks

About Phoenix Contact

Phoenix Contact is a market leader in industrial automation and connectivity solutions headquartered in Germany. They manufacture terminal blocks, relays, connectors, power supplies, controllers, networking devices, and surge suppression devices for many applications. Phoenix Contact provides innovative solutions for the automotive / e-mobility, building, rail and city infrastructure, power and energy, and industrial industries.
