1729600000 - Weidmüller

Description: PCB connector (board connection), 125 V, 10 A, Pitch in mm: 3.50, Number of poles: 8, THT solder connection, Box

Download 1729600000 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1729600000 - Weidmüller - PCB symbol
click to zoom

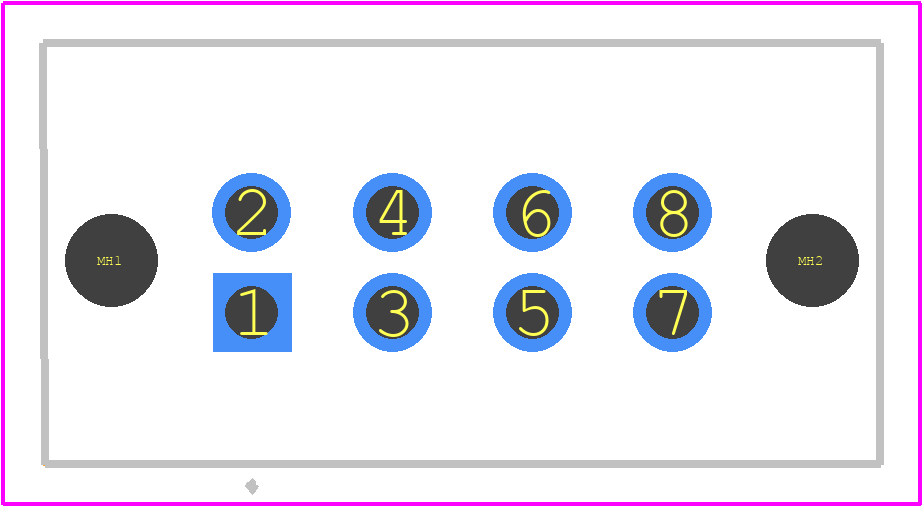

PCB Footprints
1729600000 - Weidmüller PCB footprint - Other - Other - 1729600000
click to zoom
3D Models
1729600000 - Weidmüller - 3D model - Other - 1729600000
click to zoom

1729600000 Details

  • Manufacturer Part Number:

    1729600000

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Factory Lead Time:

    6 Weeks, 4 Days

  • Manufacturer:

    Weidmüller Interface GmbH & Co. KG

  • YTEOL:

    7.57

  • Additional Feature:

    STANDARD: UL 94V-0, POLYBUTYLENE TEREPHTHALATE

  • Fastening Method:

    CONNECTOR

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    2

  • Number of Ways:

    8

  • Rated Current:

    7 A

  • Rated Voltage:

    150 V

  • Safety Approval:

    CSA; DIN; IEC; UL

  • Terminal and Terminal Block Type:

    STRIP TERMINAL BLOCK

1729600000 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5 Nm to 1.5 Nm, depending on the wire size and type.
  • Yes, the 1729600000 is designed to withstand vibrations up to 10 g according to IEC 60068-2-6. However, it's recommended to consult with Weidmüller's technical support for specific application guidance.
  • The 1729600000 has a protection rating of IP67, making it suitable for outdoor use. However, it's essential to ensure proper sealing and installation to maintain the IP rating.
  • The 1729600000 has an operating temperature range of -40°C to 125°C, making it suitable for a wide range of industrial applications.
  • It's not recommended to use the 1729600000 with aluminum wires, as they can cause corrosion and reduce the connector's lifespan. Instead, use copper or copper-alloy wires for optimal performance.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1729600000 Overview

Use the download button to access the 1729600000 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 17296, or try a keyword search, such as Terminals and Terminal Blocks
