1729640000 - Weidmüller

Description: PCB connector (board connection), 125 V, 10 A, Pitch in mm: 3.50, Number of poles: 16, THT solder connection, Box

Download 1729640000 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1729640000 - Weidmüller - PCB symbol
click to zoom

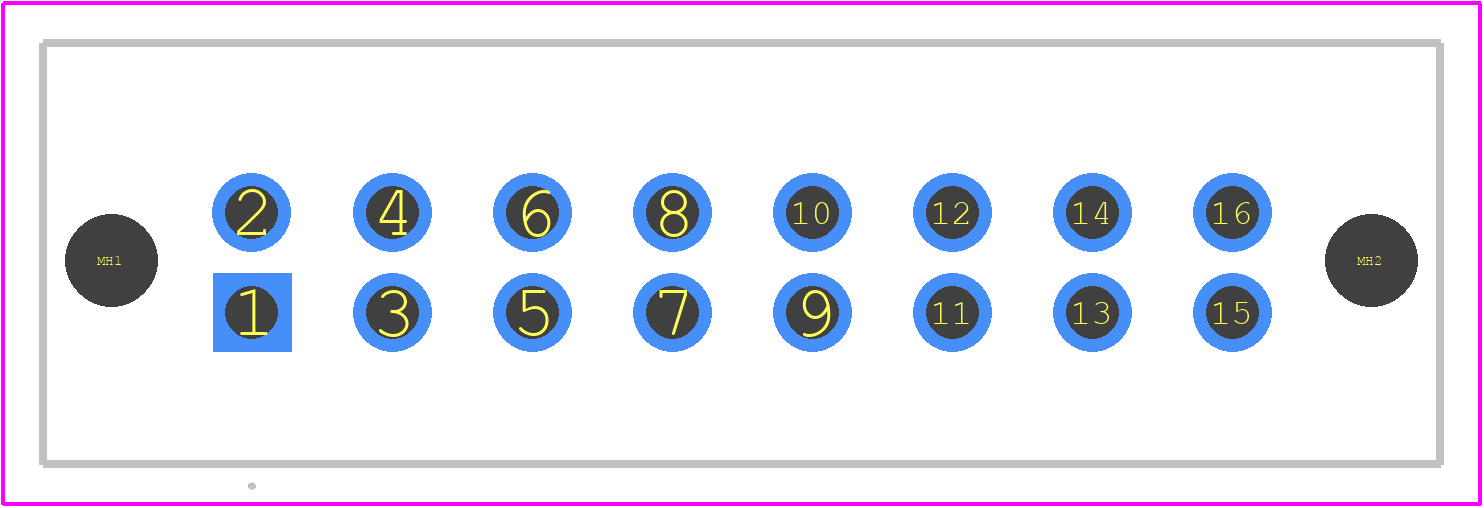

PCB Footprints
1729640000 - Weidmüller PCB footprint - Other - Other - 1729640000
click to zoom
3D Models
1729640000 - Weidmüller - 3D model - Other - 1729640000
click to zoom

1729640000 Details

  • Manufacturer Part Number:

    1729640000

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Factory Lead Time:

    10 Weeks

  • Manufacturer:

    Weidmüller Interface GmbH & Co. KG

  • YTEOL:

    7

  • Additional Feature:

    POLYAMIDE66

  • Fastening Method:

    CONNECTOR

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    2

  • Number of Ways:

    16

  • Rated Current:

    10 A

  • Rated Voltage:

    300 V

  • Safety Approval:

    CSA; EAC; UL

  • Terminal and Terminal Block Type:

    STRIP TERMINAL BLOCK

1729640000 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5 Nm to 1.5 Nm, depending on the wire size and type.
  • Yes, the 1729640000 is designed to withstand vibrations up to 10g according to IEC 60068-2-6. However, it's recommended to consult with Weidmüller's technical support for specific application guidance.
  • The 1729640000 has a protection rating of IP67, making it suitable for outdoor use. However, it's essential to ensure proper sealing and installation to maintain the IP rating.
  • The 1729640000 has an operating temperature range of -40°C to 125°C. However, it's recommended to consult the datasheet for specific temperature derating information.
  • While it's technically possible to use a different wire gauge, it's not recommended as it may affect the connector's performance and reliability. It's best to stick to the recommended wire gauge range specified in the datasheet.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1729640000 Overview

Use the download button to access the 1729640000 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 17296, or try a keyword search, such as Terminals and Terminal Blocks
