1730531 - Phoenix Contact

Description: MKDSD 2,5/ 5-5,08 - Printed circuit board terminal, nominal current: 24 A, rated voltage (III/2): 400 V, nominal cross section: 2.5 mm<sup>2</sup>, number of potentials: 5, number of rows: 1, number of positions per row: 5, product range: MKDSD 2,5, pitch: 5.08 mm, connection method: Screw connection with tension sleeve, screw head form: L Slotted, mounting: Wave soldering, conductor/PCB connection direction: 0 °, color: green, Pin layout: Linear pinning, Solder pin [P]: 3.7 mm, number of solder pins per po

Download 1730531 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1730531 - Phoenix Contact - PCB symbol
click to zoom
PCB Footprints

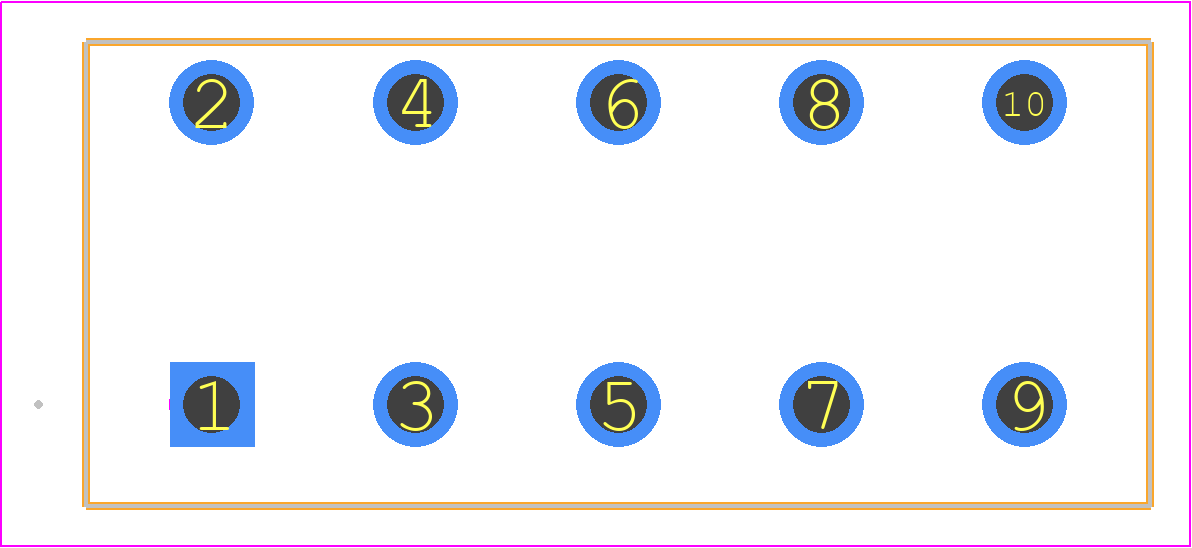

1730531 - Phoenix Contact PCB footprint - Other - Other - 1730531
click to zoom
3D Models
1730531 - Phoenix Contact - 3D model - Other - 1730531
click to zoom

1730531 Details

  • Manufacturer Part Number:

    1730531

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Country Of Origin:

    Poland

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Phoenix Contact

  • YTEOL:

    6.81

  • Additional Feature:

    PA, 94V-0

  • Fastening Method:

    SCREW

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    5

  • Rated Current:

    24 A

  • Rated Voltage:

    250 V

  • Safety Approval:

    UL

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

  • Wire Cross Section:

    2.5 mm2

  • Wire Gauge:

    14 AWG

1730531 Frequently Asked Questions (FAQs)

  • The recommended torque for screw terminals on the 1730531 connector is 0.6 Nm to 1.2 Nm (5.3 in-lbs to 10.6 in-lbs).
  • Yes, the 1730531 connector is designed to withstand high-vibration environments. It meets the vibration requirements of IEC 61373 Category 1, Class B.
  • Yes, the 1730531 connector is suitable for outdoor use. It has a IP67 rating, which means it can withstand temporary immersion in water and is protected against dust and moisture.
  • The maximum wire size that can be used with the 1730531 connector is 2.5 mm² (AWG 14).
  • The 1730531 connector is rated for operation in temperatures ranging from -40°C to 125°C (-40°F to 257°F). However, it's recommended to derate the current carrying capacity at higher temperatures.
