1731743 - Phoenix Contact

Description: MC 1,5/ 9-G-3,5-RN - PCB headers, nominal cross section: 1.5 mm<sup>2</sup>, color: green, nominal current: 8 A, rated voltage (III/2): 160 V, contact surface: Sn, contact connection type: Pin, number of potentials: 9, number of rows: 1, number of positions: 9, number of connections: 9, product range: MC 1,5/..-G-RN, pitch: 3.5 mm, mounting: Wave soldering, pin layout: Linear pinning, solder pin [P]: 3.4 mm, number of solder pins per potential: 1, plug-in system: COMBICON FMC 1,5 - MCDN 1,5, Pin connector p

Download 1731743 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1731743 - Phoenix Contact - PCB symbol
click to zoom
PCB Footprints

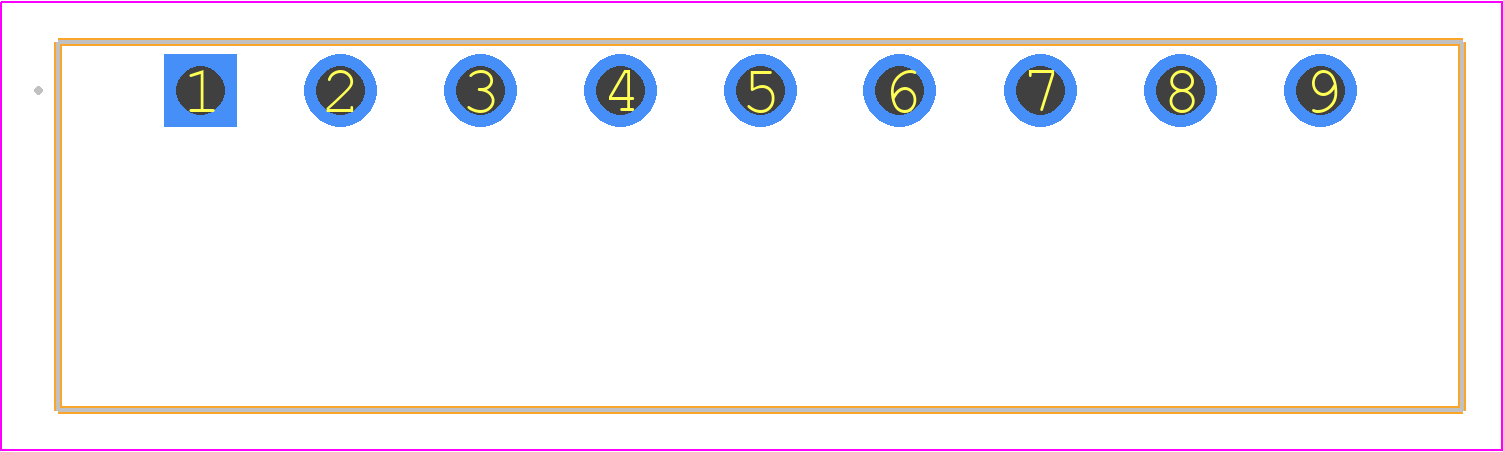

1731743 - Phoenix Contact PCB footprint - Other - Other - 1731743
click to zoom
3D Models
1731743 - Phoenix Contact - 3D model - Other - 1731743
click to zoom

1731743 Details

  • Manufacturer Part Number:

    1731743

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Country Of Origin:

    Germany

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Phoenix Contact

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    9

  • Rated Current:

    8 A

  • Rated Voltage:

    160 V

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

1731743 Frequently Asked Questions (FAQs)

  • The recommended torque is 0.6 Nm to 1.2 Nm, as specified in the Phoenix Contact's general technical guidelines.
  • Yes, the 1731743 connector is designed to withstand vibrations up to 10 g according to IEC 60068-2-6, making it suitable for use in high-vibration environments.
  • The 1731743 connector has a protection rating of IP67, which means it is protected against dust and temporary immersion in water up to 1 meter. However, it's recommended to use additional protection measures for outdoor use or exposure to harsh environmental conditions.
  • While the datasheet specifies a recommended wire gauge, it's possible to use a different gauge. However, it's essential to ensure the wire gauge meets the connector's minimum and maximum wire size specifications to ensure reliable connections.
  • To ensure proper mating and unmating, follow the recommended mating and unmating forces specified in the datasheet, and ensure the connector is properly aligned and seated.
