1732519 - Phoenix Contact

Description: SPT 2,5/ 4-V-5,0-EX - Printed circuit board terminal, nominal current: 22 A, nominal cross section: 2.5 mm<sup>2</sup>, number of potentials: 4, number of rows: 1, number of positions per row: 4, product range: SPT 2,5/..-V-EX, pitch: 5 mm, connection method: Push-in spring connection, mounting: Wave soldering, conductor/PCB connection direction: 90 °, color: green, Pin layout: Linear pinning, Solder pin [P]: 2.5 mm, number of solder pins per potential: 2, type of packaging: packed in cardboard

Download 1732519 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1732519 - Phoenix Contact - PCB symbol
click to zoom
PCB Footprints

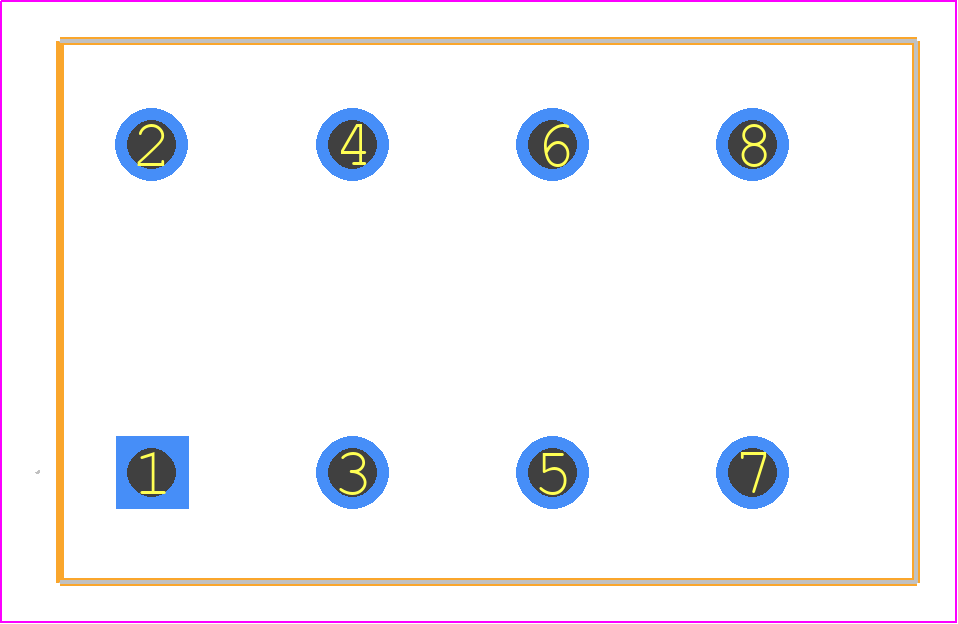

1732519 - Phoenix Contact PCB footprint - Other - Other - 1732519
click to zoom
3D Models
1732519 - Phoenix Contact - 3D model - Other - 1732519
click to zoom

1732519 Details

  • Manufacturer Part Number:

    1732519

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    ROHS COMPLIANT

  • Country Of Origin:

    Germany

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Phoenix Contact

  • YTEOL:

    0

  • Fastening Method:

    SPRING LOADED

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    4

  • Rated Current:

    23 A

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

  • Wire Cross Section:

    2.5 mm2

  • Wire Gauge:

    13 AWG

1732519 Frequently Asked Questions (FAQs)

  • The recommended torque is 0.5 Nm to 1.5 Nm, but it's essential to consult the specific PCB design and manufacturer's recommendations.
  • While the 1732519 is a robust connector, it's not specifically designed for high-vibration applications. For such use cases, consider using connectors with additional locking mechanisms or specialized vibration-resistant designs.
  • Yes, the 1732519 is designed for automated assembly and is compatible with reflow soldering processes. However, ensure that your manufacturing process meets the recommended temperature and soldering time profiles.
  • The 1732519 is rated for operation up to 125°C (257°F), but it's essential to consider the specific application and environmental conditions to ensure reliable performance.
  • While the 1732519 is a reliable connector, it's not designed for outdoor or harsh environmental applications. For such use cases, consider using connectors with specialized coatings, seals, or environmental protection.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1732519 Overview

Use the download button to access the 1732519 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 17325, or try a keyword search, such as Terminals and Terminal Blocks

About Phoenix Contact

Phoenix Contact is a market leader in industrial automation and connectivity solutions headquartered in Germany. They manufacture terminal blocks, relays, connectors, power supplies, controllers, networking devices, and surge suppression devices for many applications. Phoenix Contact provides innovative solutions for the automotive / e-mobility, building, rail and city infrastructure, power and energy, and industrial industries.
