Part Image

1734021-4 - TE Connectivity

Description: Connector Shielded Miniature Circular DIN F/F 6/6 POS Solder RA Thru-Hole 12 Terminal 2 Port

Download 1734021-4 Model

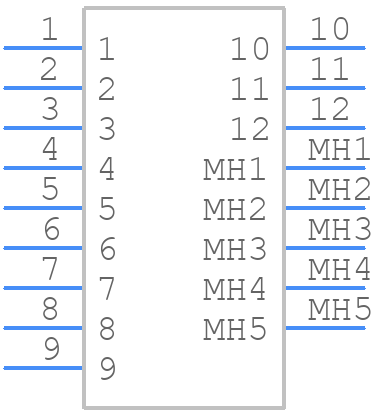

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

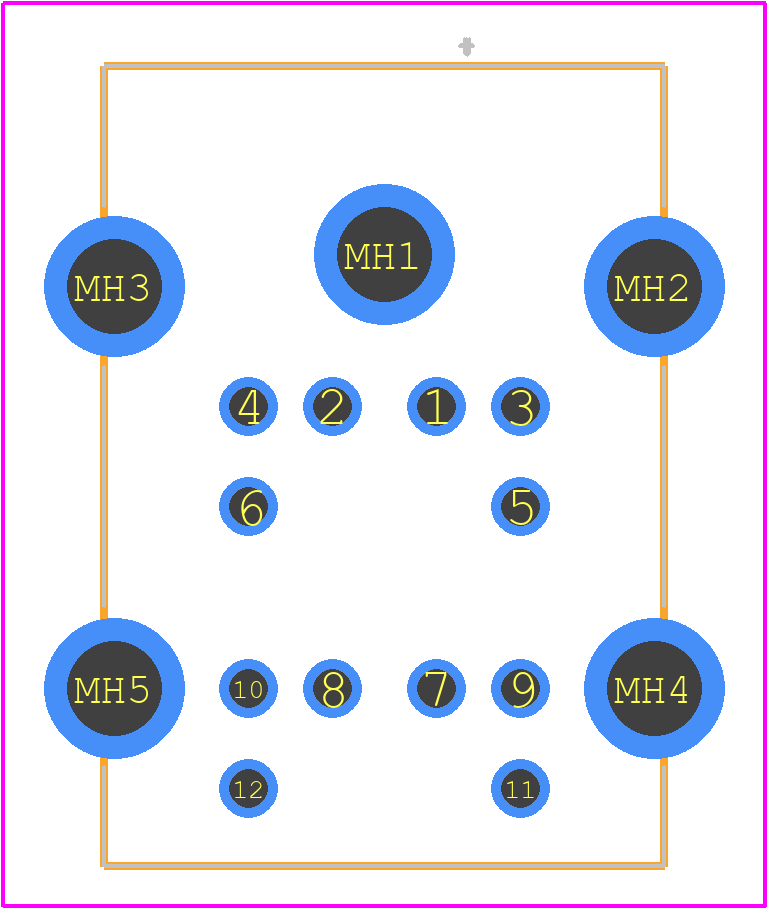

1734021-4 - TE Connectivity PCB footprint - Other - Other - 1734021-4-1
click to zoom
3D Models
1734021-4 - TE Connectivity  - 3D model - Other - 1734021-4-1
click to zoom

1734021-4 Details

  • Manufacturer Part Number:

    1734021-4

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Reach Compliance Code:

    Compliant

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    0

  • Additional Feature:

    STANDARD: 94V-0

  • Board Mounting Option:

    SOLDER HOLDING FLANGE

  • Body Breadth:

    1.122 inch

  • Body Depth:

    0.787 inch

  • Body Length:

    0.543 inch

  • Body/Shell Style:

    RECEPTACLE

  • Connector Type:

    MINI DIN CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT SPECIFIED

  • Contact Pitch Circle Diameter:

    0.197 mm

  • Contact Style:

    RND PIN-SKT

  • DIN Conformance:

    YES

  • EMI Shielded:

    YES

  • IEC Conformance:

    NO

  • Insulator Color:

    GRN-PURP

  • Insulator Material:

    GLASS FILLED POLYBUTYLENE TEREPHTHALATE/ GLASS FILLED POLYETHYLENE

  • MIL Conformance:

    NO

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number of Ports:

    2

  • Option:

    GENERAL PURPOSE

  • Plating Thickness:

    FLASH inch

  • Polarization Key:

    POLARIZED

  • Reference Standard:

    UL

  • Shell Finish:

    TIN

  • Shell Material:

    STEEL

  • Terminal Length:

    0.134 inch

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    12

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1734021-4 Overview

Use the download button to access the 1734021-4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 17340, or try a keyword search, such as DIN Connectors
