1734037-6 - TE Connectivity

Description: Board to Board & Mezzanine Connectors 050 RCPT 60pos 30 Au

Download ECAD Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download

PCB Footprints

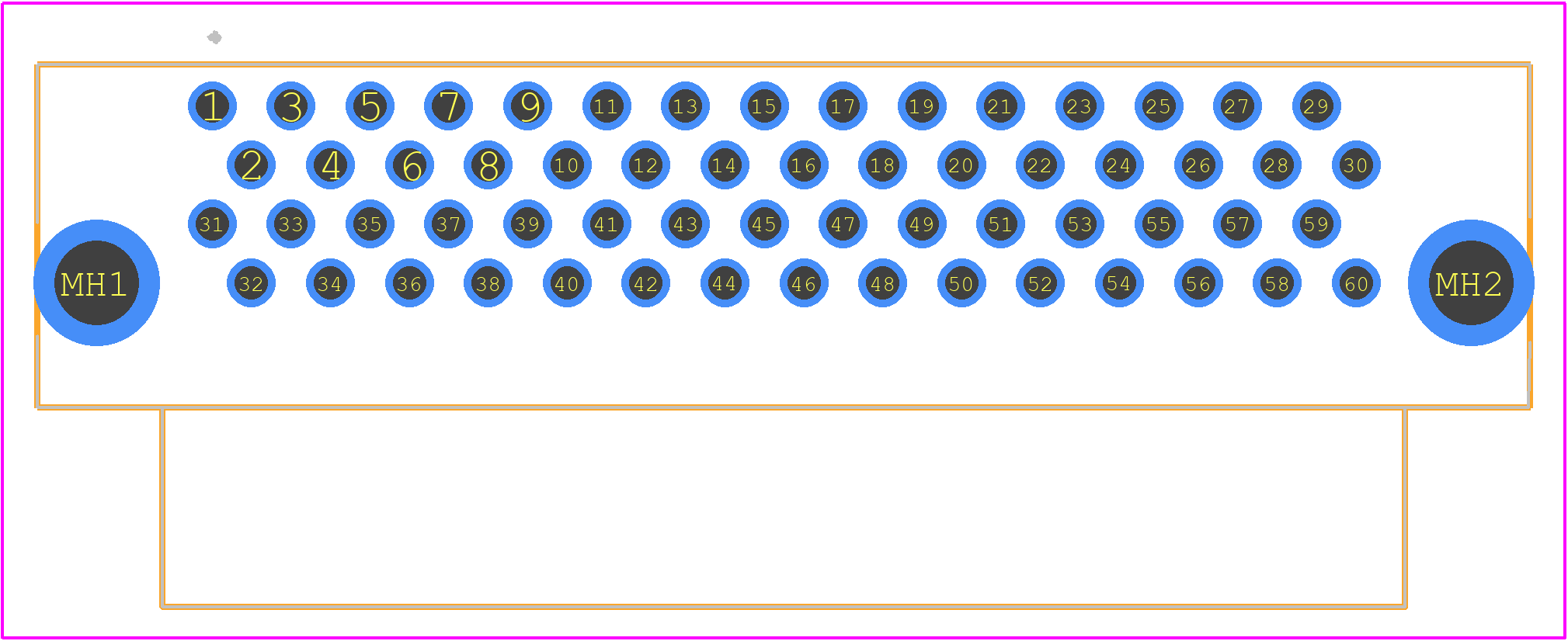

1734037-6 - TE Connectivity PCB footprint - Other - Other - 1734037-6-2
click to zoom

3D Models

1734037-6 - TE Connectivity  - 3D model - Other - 1734037-6-2
click to zoom

1734037-6 Details

  • Manufacturer Part Number:

    1734037-6

  • Brand Name:

    AMP

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Reach Compliance Code:

    compliant

  • Factory Lead Time:

    13 Weeks

  • Manufacturer:

    TE Connectivity

  • Risk Rank:

    1.8

  • Samacsys Modified On:

    2020-12-18 16:04:51

  • YTEOL:

    6.98

  • Board Mounting Option:

    BOARD LOCK

  • Body Breadth:

    0.301 inch

  • Body Depth:

    0.301 inch

  • Body Length:

    1.891 inch

  • Body/Shell Style:

    RECEPTACLE

  • Connector Type:

    TELECOM AND DATACOM CONNECTOR

  • Contact Design:

    PREASSEM CONN

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    TIN

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT SPECIFIED

  • Contact Pattern:

    RECTANGULAR

  • Contact Resistance:

    15 mΩ

  • Contact Style:

    CENTRONIC

  • DIN Conformance:

    NO

  • Dielectric Withstanding Voltage:

    750VAC V

  • Durability:

    500 Cycles

  • EMI Shielded:

    NO

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insertion Force-Max:

    .8896 N

  • Insulation Resistance:

    4000000 Ω

  • Insulator Color:

    BLACK

  • Insulator Material:

    LIQUID CRYSTAL POLYMER

  • JESD-609 Code:

    e3

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    1A

  • Mating Contact Pitch:

    0.05 inch

  • Mixed Contacts:

    NO

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Ports:

    1

  • Number of Rows Loaded:

    4

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -55 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Plating Thickness:

    30u inch

  • Polarization Key:

    POLARIZED

  • Rated Current (Signal):

    1 A

  • Reference Standard:

    UL

  • Reliability:

    COMMERCIAL

  • Subcategory:

    Other Rectangular Connectors

  • Terminal Length:

    0.122 inch

  • Terminal Pitch:

    1.27 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    60

  • UL Flammability Code:

    94V-0

  • Withdrawl Force-Min:

    .139 N
