1734044-1 - TE Connectivity

Description: Body Features: Shield Material Steel | Assembly Process Feature Material Brass | Shield Plating Material Nickel | Shell Plating Material Nickel | Primary Product Color Black | Connector Profile Standard | Configuration Features: PCB Mount Orientation Right Angle | Number of Positions 36 | Number of Rows 2 | Contact Features: Contact Current Rating (Max) 5 AMP | Contact Base Material Copper Alloy | Contact Mating Area Plating Material Gold Flash | PCB Contact Termination Area Plating Material Tin | Dimension

Download 1734044-1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

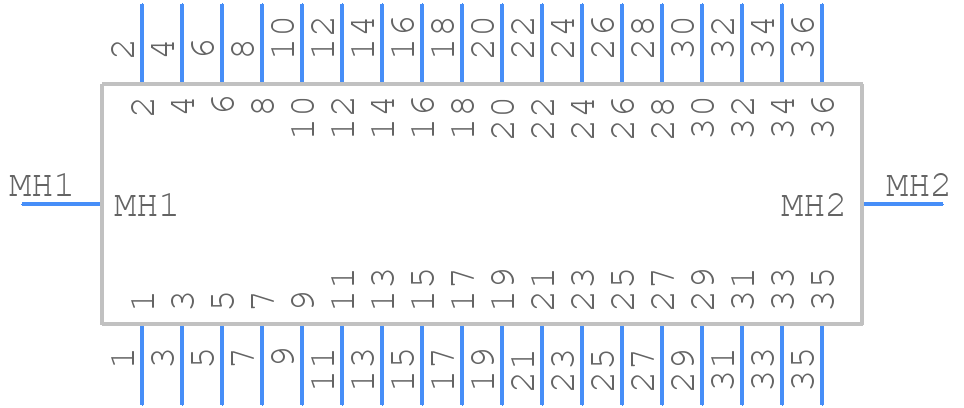

1734044-1 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

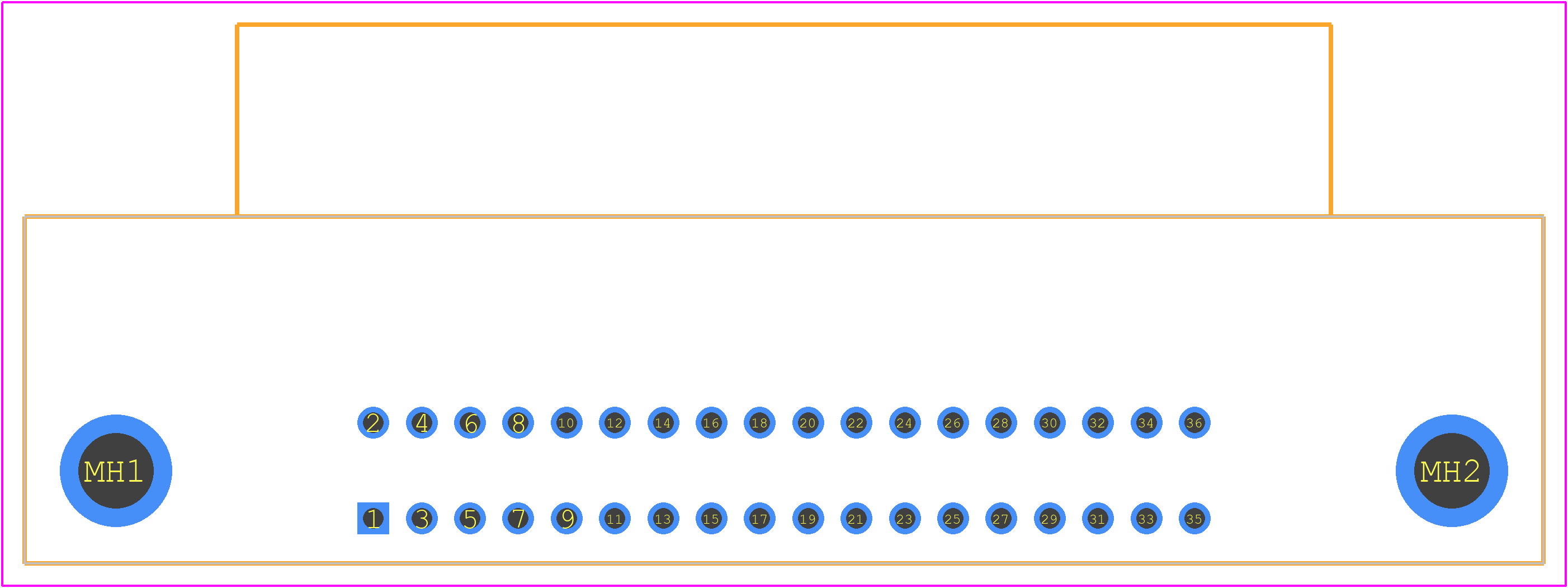

1734044-1 - TE Connectivity PCB footprint - Other - Other - 1734044-1-2
click to zoom
3D Models
1734044-1 - TE Connectivity - 3D model - Other - 1734044-1-2
click to zoom

1734044-1 Details

  • Manufacturer Part Number:

    1734044-1

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    7

  • Board Mounting Option:

    BOARD LOCK

  • Body/Shell Style:

    RECEPTACLE

  • Connector Type:

    TELECOM AND DATACOM CONNECTOR

  • Contact Design:

    PREASSEM CONN

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT APPLICABLE

  • DIN Conformance:

    NO

  • EMI Shielded:

    YES

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Color:

    BLACK

  • Insulator Material:

    POLYETHYLENE

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    5A

  • Mating Contact Row Spacing:

    0.169 inch

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    #4-40UNC

  • Mounting Option 2:

    SCREW

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    PANEL

  • Number of Ports:

    1

  • Number of Rows Loaded:

    2

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Rated Current (Signal):

    5 A

  • Reference Standard:

    UL

  • Shell Finish:

    NICKEL

  • Shell Material:

    STEEL

  • Terminal Pitch:

    2.16 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    36

  • UL Flammability Code:

    94V-0

1734044-1 Frequently Asked Questions (FAQs)

  • The recommended torque value for the screw terminals is 0.5-1.5 Nm (4.4-13.3 in-lbs). It's essential to follow this range to ensure reliable connections and prevent damage to the connector.
  • Yes, the 1734044-1 connector is designed to withstand vibrations up to 10G (10 Hz to 2000 Hz) according to IEC 60068-2-6. However, it's crucial to ensure proper mounting and secure the connector to prevent damage or disconnection.
  • The 1734044-1 connector has a rating of IP67, which means it can withstand temporary immersion in water (up to 1m for 30 minutes) and is protected against dust. However, it's essential to follow proper sealing and installation procedures to maintain the IP67 rating.
  • The 1734044-1 connector has an operating temperature range of -40°C to 125°C (-40°F to 257°F). It's essential to ensure that the connector is used within this range to maintain its performance and reliability.
  • While the datasheet recommends AWG 20-24 wire sizes, it's possible to use other wire sizes with the 1734044-1 connector. However, it's crucial to ensure that the wire size is compatible with the connector's terminal design and that the wire is properly secured to prevent damage or disconnection.
