1734099-5 - TE Connectivity

Description: Body Features: Connector Profile Standard | Primary Product Color Black | PCB Retention Feature Plating Material Tin-Copper over Nickel | PCB Retention Feature Material Brass | Configuration Features: Stackable No | Number of Positions 50 | PCB Mount Orientation Right Angle | Contact Features: Contact Current Rating (Max) 1 AMP | Mating Tab Width .75 MM | Mating Tab Width .03 INCH | Contact Shape & Form Square | PCB Contact Termination Area Plating Material Finish Matte | Mating Tab Thickness .012 INCH | Co

Download 1734099-5 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1734099-5 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

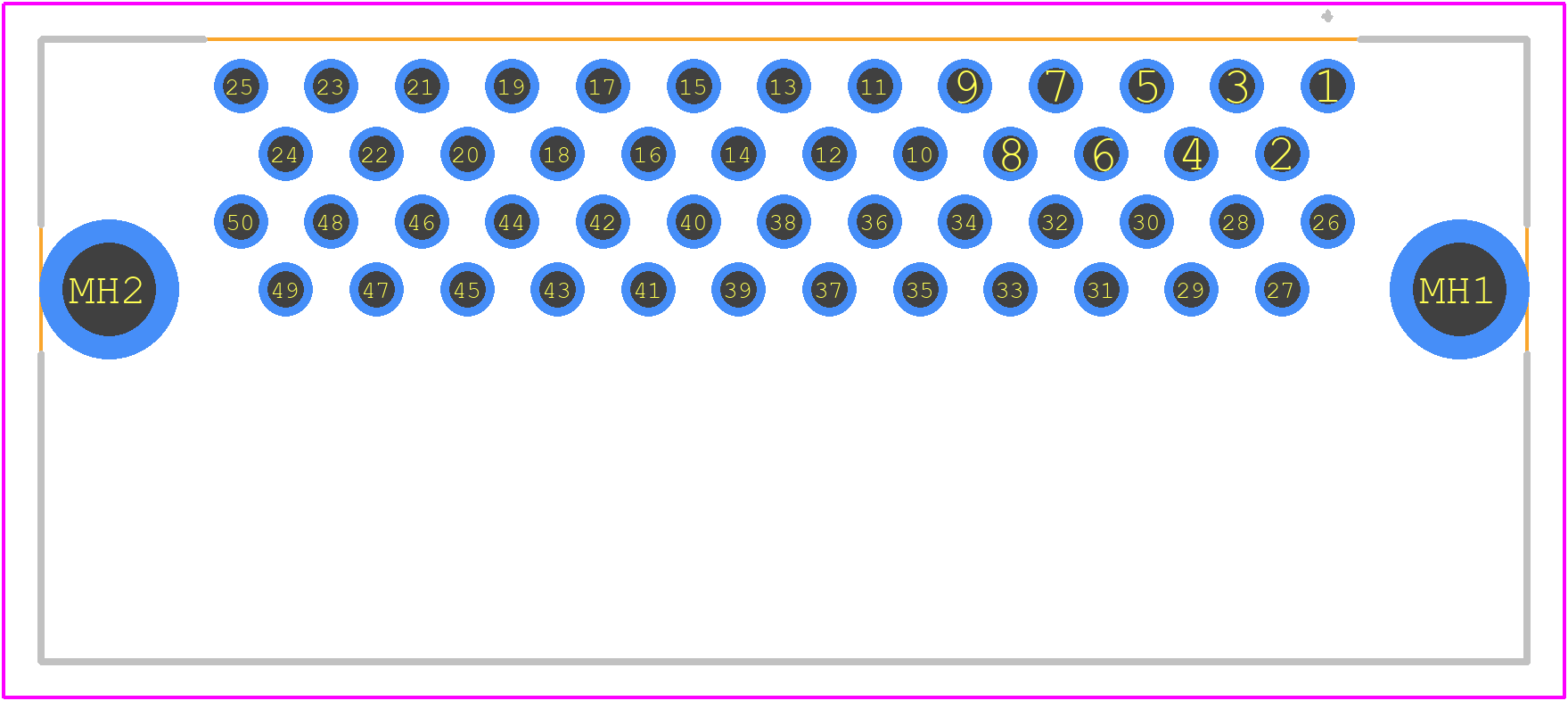

1734099-5 - TE Connectivity PCB footprint - Other - Other - 1734099-5-3
click to zoom
3D Models
1734099-5 - TE Connectivity - 3D model - Other - 1734099-5-3
click to zoom

1734099-5 Details

  • Manufacturer Part Number:

    1734099-5

  • Brand Name:

    AMP

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    10 Weeks, 5 Days

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    7.5

  • Connector Type:

    BOARD CONNECTOR

1734099-5 Frequently Asked Questions (FAQs)

  • The recommended torque value is 0.5-0.7 Nm (4.4-6.3 in-lbs) for the screw terminals.
  • Yes, the 1734099-5 connector is designed to withstand high-vibration environments, but it's recommended to consult with TE Connectivity's application engineers for specific guidance.
  • The operating temperature range for the 1734099-5 connector is -40°C to 125°C (-40°F to 257°F).
  • The 1734099-5 connector has a sealed design, but it's still important to consult with TE Connectivity's application engineers to determine its suitability for specific harsh environments.
  • While the connector is designed for AWG 20-24 wires, it's possible to use it with other wire sizes, but this may affect the connector's performance and reliability. Consult with TE Connectivity's application engineers for guidance.
