- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for 1734099-7
- Part Number 1734099-7
- Manufacturer TE Connectivity
- Pin Count 70
- Part Category Connector
- Package Category Other

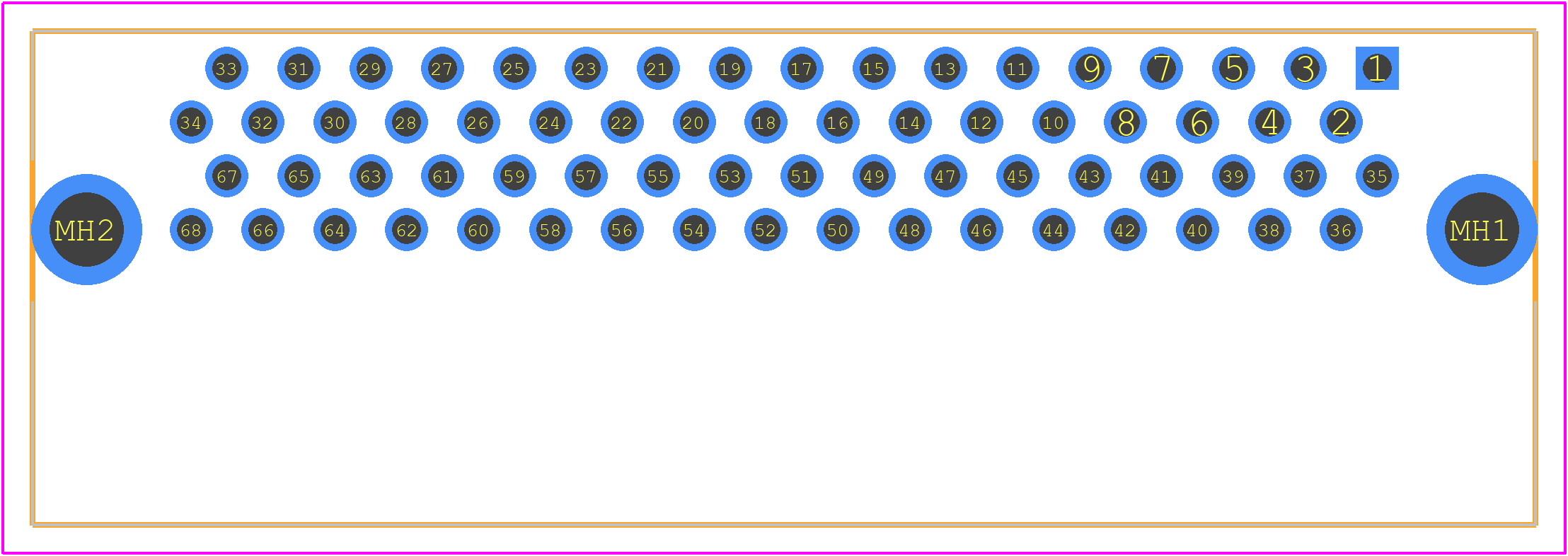

- Footprint Name Other - 1734099-7-2
- Released Date Oct 23, 2020
- Last Modified Date Dec 15, 2024 9:56 PM UTC
- Pinout / Pin List Click Here (Member Only)
1734099-7 Details
-
Manufacturer Part Number:
1734099-7
-
Brand Name:
AMP
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Package Description:
ROHS COMPLIANT
-
ECCN Code:
EAR99
-
HTS Code:
8536.69.40.30
-
Factory Lead Time:
5 Weeks, 5 Days
-
Manufacturer:
TE Connectivity
-
YTEOL:
7.5
-
Connector Type:
BOARD CONNECTOR
1734099-7 Frequently Asked Questions (FAQs)
-
The recommended torque value is 0.5-0.7 Nm (4.4-6.3 in-lbs) for the screw terminals.
-
Yes, the 1734099-7 connector is designed to withstand high-vibration environments, but it's recommended to consult with TE Connectivity's application engineers for specific guidance.
-
The operating temperature range for the 1734099-7 connector is -40°C to 125°C (-40°F to 257°F).
-
The 1734099-7 connector is designed to be resistant to harsh environments, but it's recommended to consult with TE Connectivity's application engineers to determine the suitability for specific environmental conditions.
-
While the connector is designed for AWG 20-24 wires, it may be possible to use it with other wire sizes. However, it's recommended to consult with TE Connectivity's application engineers to determine the suitability for specific wire sizes.
Trust Checks
Manufacturer Collaborated
System Verified
Community Approved
1734099-7 Overview
Use the download button to access the 1734099-7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 17340,
or try a keyword search, such as Telecom and Datacom Connectors
