1734248-9 - TE Connectivity

Description: Body Features: Primary Product Color Black | Configuration Features: Compatible With Wire & Cable Type FFC | Number of Positions 9 | Compatible With Wire & Cable Type FPC | Number of Rows 1 | PCB Mount Orientation Vertical | Contact Features: Contact Base Material Phosphor Bronze | Contact Mating Area Plating Material Thickness 1 MICIN | Contact Layout Inline | Contact Mating Location Top | PCB Contact Termination Area Plating Material Thickness .025 MICM | Contact Current Rating (Max) 1 AMP | Contact Type

Download 1734248-9 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

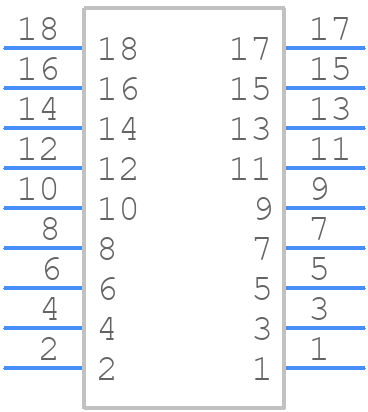

1734248-9 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints
1734248-9 - TE Connectivity PCB footprint - Other - Other - 1734248-9-1
click to zoom
3D Models
1734248-9 - TE Connectivity - 3D model - Other - 1734248-9-1
click to zoom

1734248-9 Details

  • Manufacturer Part Number:

    1734248-9

  • Brand Name:

    TE Connectivity

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    7

  • Additional Feature:

    ZIF

  • Body Breadth:

    0.181 inch

  • Body Depth:

    0.303 inch

  • Body Length:

    0.646 inch

  • Cable Types:

    FFC, FPC

  • Connector Type:

    FFC/FPC CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT APPLICABLE

  • Contact Pattern:

    RECTANGULAR

  • Contact Resistance:

    20 mΩ

  • Contact Style:

    BELLOWED TYPE

  • DIN Conformance:

    NO

  • Durability:

    30 Cycles

  • EMI Shielded:

    NO

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insertion Force-Max:

    ZIF N

  • Insulation Resistance:

    100000000 Ω

  • Insulator Color:

    BLACK

  • Insulator Material:

    POLYAMIDE9T

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    1A

  • Mating Contact Pitch:

    0.039 inch

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number Of PCB Rows:

    2

  • Number of Ports:

    1

  • Number of Rows Loaded:

    1

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -20 °C

  • Option:

    GENERAL PURPOSE

  • PCB Contact Pattern:

    RECTANGULAR

  • Panel Mount:

    NO

  • Plating Thickness:

    1u inch

  • Rated Current (Signal):

    1 A

  • Rated Voltage:

    125 V

  • Reference Standard:

    UL

  • Terminal Pitch:

    1 mm

  • Termination Type:

    SURFACE MOUNT

  • Total Number of Contacts:

    9

  • UL Flammability Code:

    94V-0

  • Withdrawl Force-Min:

    ZIF N

1734248-9 Frequently Asked Questions (FAQs)

  • The recommended torque value for the screw terminals is 0.5-1.5 Nm (4.4-13.3 in-lbs). It's essential to follow this range to ensure reliable connections and prevent damage to the connector.
  • Yes, the 1734248-9 connector is designed to withstand vibrations and is suitable for use in applications with moderate to high vibration levels. However, it's essential to follow proper mounting and installation procedures to ensure the connector remains secure.
  • While the datasheet specifies AWG 20-24 wire sizes, the connector can accommodate smaller wire sizes (e.g., AWG 26-28) with the use of wire adapters or by following TE Connectivity's wire stripping and termination guidelines. However, it's crucial to ensure the wire size and insulation meet the connector's specifications to maintain reliability.
  • The 1734248-9 connector is designed for use in industrial environments and can operate in temperatures ranging from -40°C to 125°C (-40°F to 257°F). However, it's essential to follow TE Connectivity's guidelines for environmental sealing and protection to ensure the connector's reliability in harsh environments.
  • Yes, it's essential to follow TE Connectivity's PCB layout guidelines to ensure proper connector mating and to prevent damage to the connector or PCB. Key considerations include keeping the PCB surface clean and flat, using a sufficient solder mask, and maintaining a minimum clearance of 1.5 mm (0.06 in) around the connector.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1734248-9 Overview

Use the download button to access the 1734248-9 schematic symbol, PCB footprint, and 3D model.
