1734479-4 - TE Connectivity

Description: Body Features: Modular Jack Latch Orientation Inverted - Latch Up | Connector Profile Low | Configuration Features: Port Matrix Configuration 1 x 2 | Number of Positions 6 | PCB Mount Orientation Right Angle | Port Configuration Multiple Ports | Number of Loaded Positions 4 | Connector Contact Density Standard | Contact Features: Contact Base Material Phosphor Bronze | PCB Contact Termination Area Plating Material Gold Flash | Contact Underplating Material Nickel | Contact Current Rating (Max) 1 AMP | Conta

Download 1734479-4 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1734479-4 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

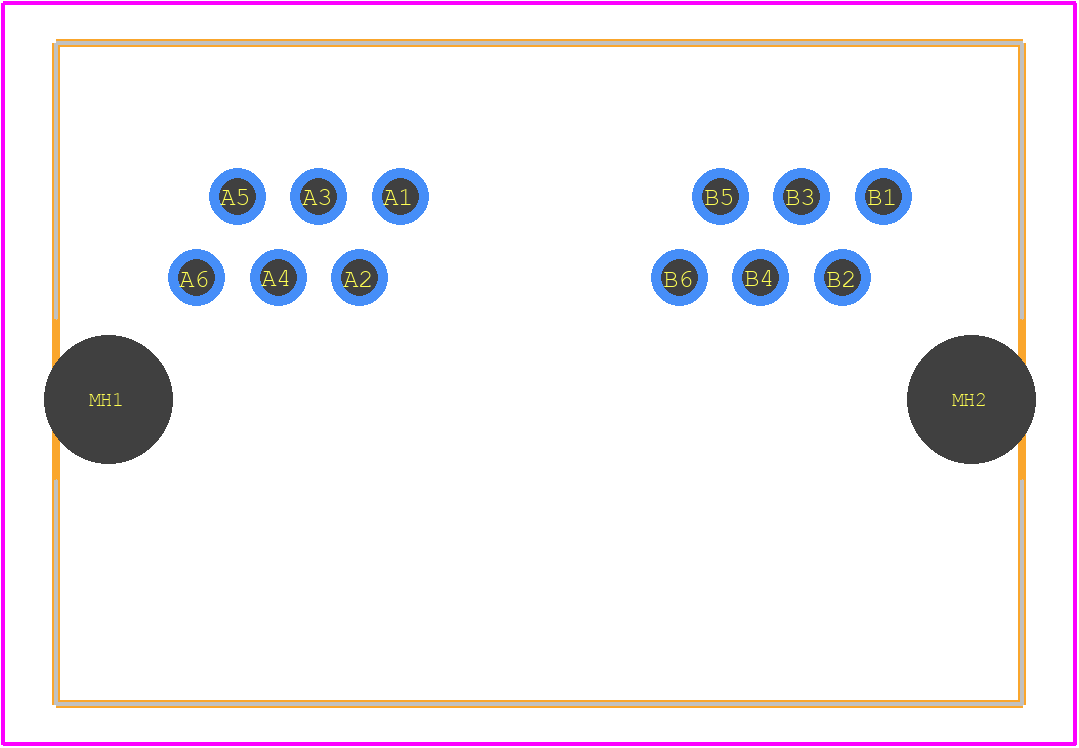

1734479-4 - TE Connectivity PCB footprint - Other - Other - 1734479-4-2
click to zoom
3D Models
1734479-4 - TE Connectivity - 3D model - Other - 1734479-4-2
click to zoom

1734479-4 Details

  • Manufacturer Part Number:

    1734479-4

  • Brand Name:

    TE Connectivity

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    9 Weeks, 5 Days

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    0

  • Additional Feature:

    LOW PROFILE

  • Body/Shell Style:

    JACK

  • Connector Type:

    RJ CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT APPLICABLE

  • Contact Style:

    TELCOM, MODULAR

  • DIN Conformance:

    NO

  • EMI Shielded:

    NO

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Color:

    BLACK

  • Insulator Material:

    POLYAMIDE46

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    1A

  • Mixed Contacts:

    NO

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Ports:

    1

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Plating Thickness:

    50u inch

  • Rated Current (Signal):

    1 A

  • Reference Standard:

    UL

  • Terminal Length:

    0.11 inch

  • Terminal Pitch:

    1.02 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    4

  • UL Flammability Code:

    94V-0

1734479-4 Frequently Asked Questions (FAQs)

  • The recommended torque value for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
  • Yes, the 1734479-4 connector is designed to withstand vibrations and is suitable for use in applications with moderate to high vibration levels. However, it's essential to ensure proper mounting and secure the connector to prevent damage or disconnection.
  • The operating temperature range for the 1734479-4 connector is -40°C to 125°C (-40°F to 257°F). It's essential to ensure that the connector is used within this temperature range to maintain its performance and reliability.
  • The 1734479-4 connector has a IP67 rating, which means it is protected against dust and temporary immersion in water up to 1 meter (3.3 feet) for 30 minutes. However, it's not recommended to use this connector in applications where it will be exposed to harsh chemicals or prolonged immersion in water.
  • The mating cycle life of the 1734479-4 connector is 500 cycles minimum. This means that the connector can withstand at least 500 mating and unmating cycles without significant degradation in performance.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1734479-4 Overview

Use the download button to access the 1734479-4 schematic symbol, PCB footprint, and 3D model.
