1734601 - Phoenix Contact

Description: CCDN 2,5/18-G1F P26 THR - PCB headers, nominal cross section: 2.5 mm<sup>2</sup>, color: black, nominal current: 12 A, rated voltage (III/2): 320 V, contact surface: Sn, contact connection type: Pin, number of potentials: 36, number of rows: 2, number of positions: 18, number of connections: 36, product range: CCDN 2,5/..-G1F-THR, pitch: 5 mm, mounting: THR soldering / wave soldering, pin layout: Linear pinning, solder pin [P]: 2.6 mm, number of solder pins per potential: 1, plug-in system: COMBICON FKCN 2,

Download 1734601 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

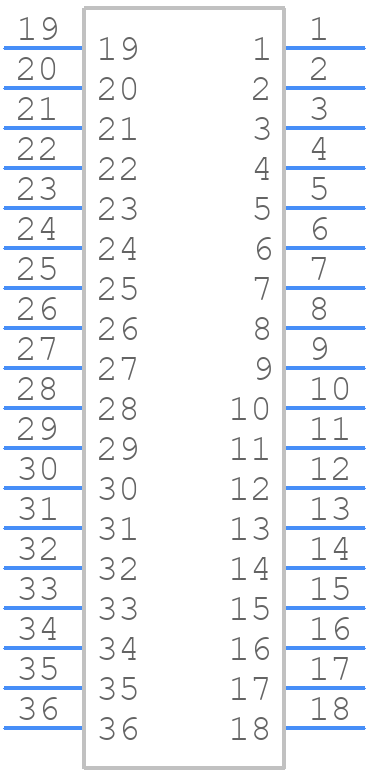

1734601 - Phoenix Contact - PCB symbol
click to zoom
PCB Footprints

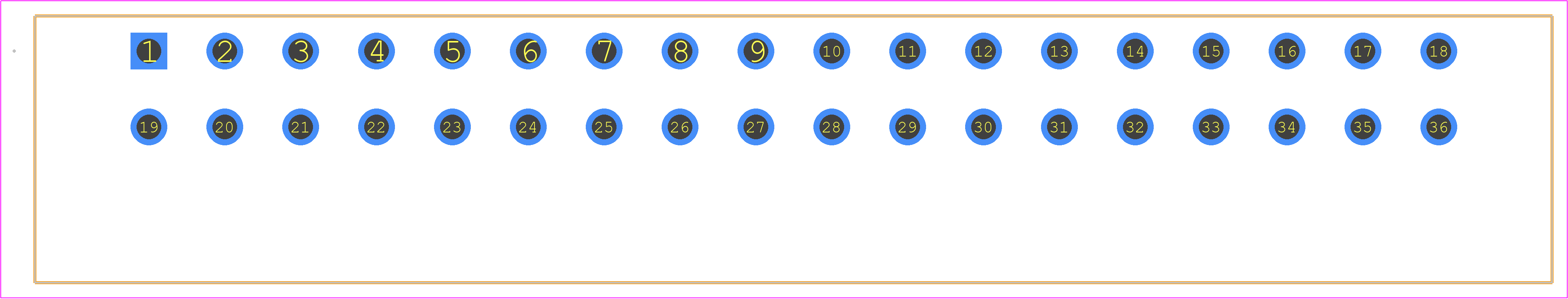

1734601 - Phoenix Contact PCB footprint - Other - Other - 1734601
click to zoom
3D Models
1734601 - Phoenix Contact - 3D model - Other - 1734601
click to zoom

1734601 Details

  • Manufacturer Part Number:

    1734601

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    End Of Life

  • Package Description:

    ROHS COMPLIANT

  • Country Of Origin:

    Slovakia

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Phoenix Contact

  • YTEOL:

    1

  • Additional Feature:

    LCP, UL 94V0

  • Fastening Method:

    CONNECTOR

  • Mounting Type:

    BOARD

  • Number of Decks:

    2

  • Number of Rows:

    2

  • Number of Ways:

    18

  • Rated Current:

    12 A

  • Rated Voltage:

    320 V

  • Safety Approval:

    UL

  • Terminal and Terminal Block Type:

    STRIP TERMINAL BLOCK

1734601 Frequently Asked Questions (FAQs)

  • The recommended torque for screw terminals is 0.5 Nm to 1.5 Nm, as specified in the Phoenix Contact application notes.
  • Yes, the 1734601 connector is designed to withstand vibrations up to 10 g according to IEC 60068-2-6. However, it's recommended to perform additional testing and validation for specific application requirements.
  • The 1734601 connector has a protection rating of IP20, which means it's not suitable for outdoor or in environments with high humidity or exposure to water. For outdoor use, consider using connectors with a higher IP rating or above.
  • The 1734601 connector is designed for wire sizes between 0.5 mm² and 2.5 mm² (AWG 20 to AWG 14). Using larger wire sizes may compromise the connector's performance and reliability.
  • Yes, ensure proper installation, wiring, and termination to avoid electrical shock, short circuits, or overheating. Follow the manufacturer's guidelines and relevant industry standards, such as IEC 60352-2, for safe and reliable connections.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1734601 Overview

Use the download button to access the 1734601 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 17346, or try a keyword search, such as Terminals and Terminal Blocks

About Phoenix Contact

Phoenix Contact is a market leader in industrial automation and connectivity solutions headquartered in Germany. They manufacture terminal blocks, relays, connectors, power supplies, controllers, networking devices, and surge suppression devices for many applications. Phoenix Contact provides innovative solutions for the automotive / e-mobility, building, rail and city infrastructure, power and energy, and industrial industries.
