17351252101 - HARTING

Description: HM Female Type AB25, unshielded, PL2

Download 17351252101 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
17351252101 - HARTING - PCB symbol
click to zoom

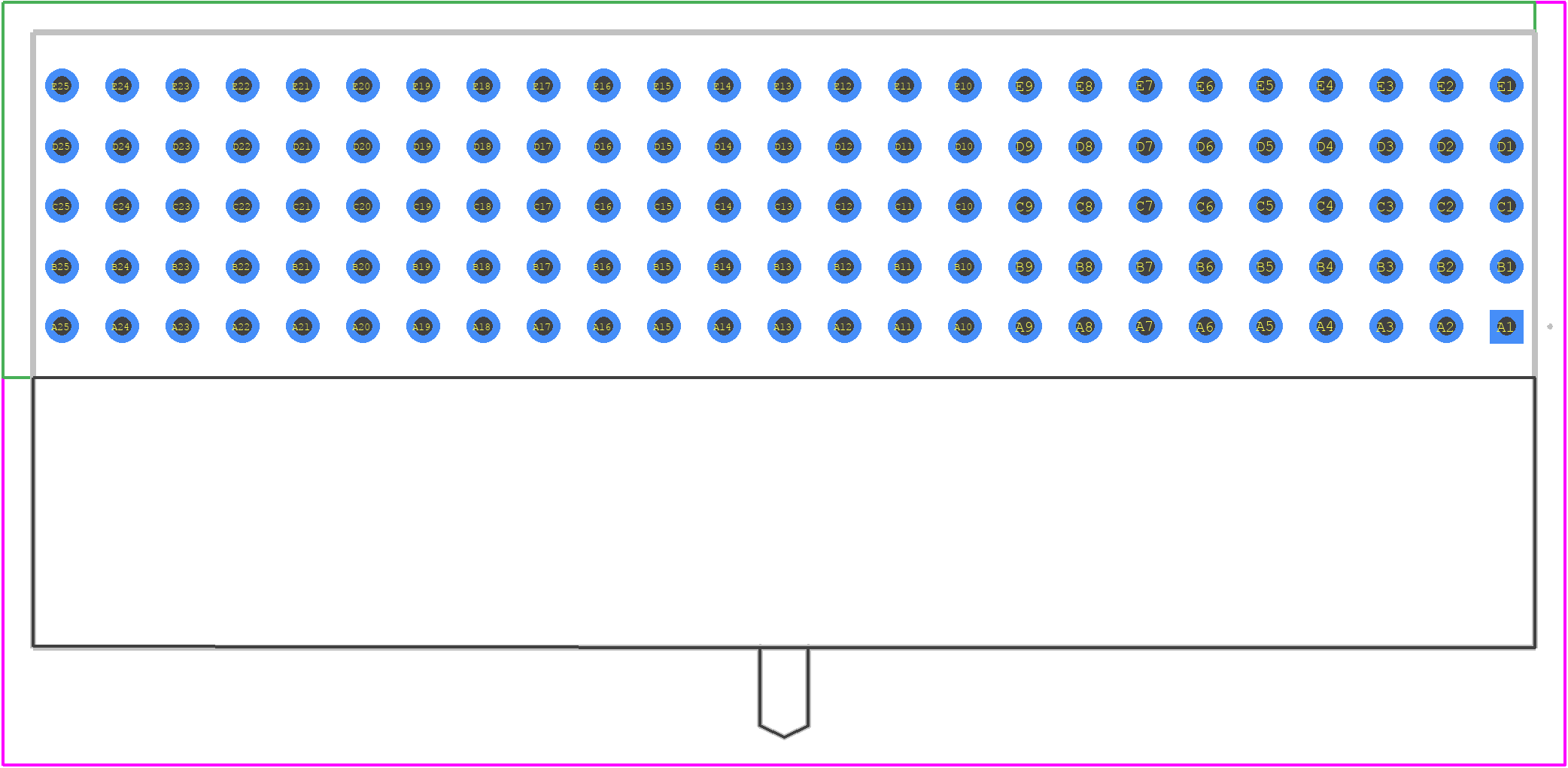

PCB Footprints
17351252101 - HARTING PCB footprint - Other - Other - 17351252101
click to zoom
3D Models
17351252101 - HARTING - 3D model - Other - 17351252101
click to zoom

17351252101 Details

  • Manufacturer Part Number:

    17351252101

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Germany

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    HARTING Technology Group

  • YTEOL:

    8

  • Additional Feature:

    STANDARD: IEC 61076-4-101

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    GOLD OVER NICKEL

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e4

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    5

  • Option:

    GENERAL PURPOSE

  • Terminal Pitch:

    2 mm

  • Termination Type:

    PRESS FIT

  • Total Number of Contacts:

    125

  • UL Flammability Code:

    94V-0

17351252101 Frequently Asked Questions (FAQs)

  • The recommended torque for tightening the 17351252101 connector is 0.5 Nm to 1.5 Nm, depending on the specific application and environmental conditions.
  • Yes, the 17351252101 connector is designed to withstand high-vibration environments and meets the requirements of IEC 61373 Category 2, which includes vibration testing.
  • Yes, the 17351252101 connector is designed to operate in harsh environments, with an operating temperature range of -40°C to 125°C and meeting the requirements of IP67 for protection against solid objects and water.
  • The maximum current rating for the 17351252101 connector is 10 A per contact, depending on the specific application and environmental conditions.
  • Yes, the 17351252101 connector is part of the HARTING Han series and is compatible with other Han connectors, allowing for flexibility in design and assembly.
