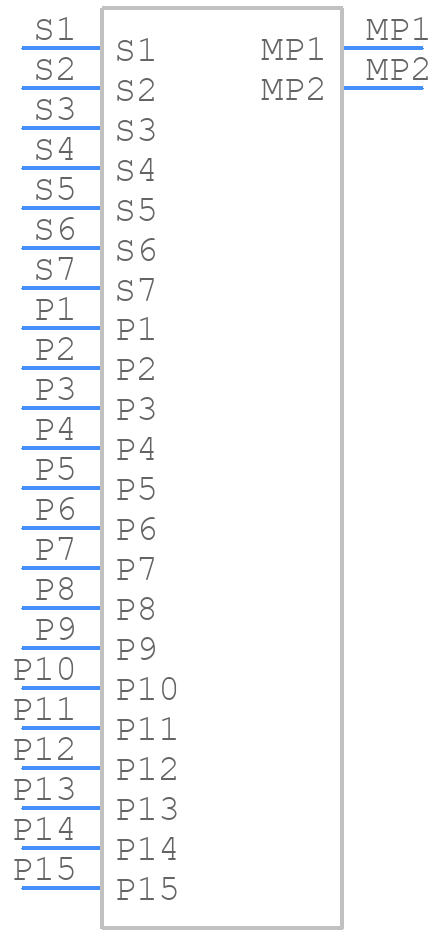

1735284-4 - TE Connectivity

1735284-4 Details

• Manufacturer Part Number:

  1735284-4

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• ECCN Code:

  EAR99

• HTS Code:

  8536.69.40.30

• Factory Lead Time:

  8 Weeks, 5 Days

• Manufacturer:

  TE Connectivity

• YTEOL:

  8

• Board Mounting Option:

  PEG

• Body Breadth:

  0.137 inch

• Body Depth:

  0.26 inch

• Body Length:

  1.59 inch

• Body/Shell Style:

  RECEPTACLE

• Connector Type:

  SATA CONNECTOR

• Contact Finish Mating:

  NOT APPLICABLE

• Contact Finish Termination:

  Tin (Sn) - with Nickel (Ni) barrier

• Contact Material:

  NOT APPLICABLE

• Contact Pattern:

  RECTANGULAR

• Contact Resistance:

  30 mΩ

• Contact Style:

  BELLOWED TYPE

• DIN Conformance:

  NO

• Durability:

  500 Cycles

• EMI Shielded:

  NO

• Empty Shell:

  YES

• Filter Feature:

  NO

• IEC Conformance:

  NO

• Insertion Force-Max:

  20.016 N

• Insulation Resistance:

  1000000000 Ω

• Insulator Color:

  BLACK

• Insulator Material:

  POLYETHYLENE

• JESD-609 Code:

  e3

• MIL Conformance:

  NO

• Mains Connector Rating:

  1.5A

• Mating Contact Pitch:

  0.05 inch

• Mixed Contacts:

  NO

• Mounting Option 1:

  GUIDE PIN

• Mounting Option 2:

  LOCKING

• Mounting Style:

  STRAIGHT

• Mounting Type:

  BOARD

• Number Of Connectors:

  ONE

• Number Of PCB Rows:

  1

• Number of Ports:

  2

• Number of Rows Loaded:

  1

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Option:

  GENERAL PURPOSE

• PCB Contact Pattern:

  RECTANGULAR

• Panel Mount:

  NO

• Plating Thickness:

  15u inch

• Polarization Key:

  POLARIZED HOUSING

• Rated Current (Signal):

  1.5 A

• Reference Standard:

  UL

• Terminal Pitch:

  1.27 mm

• Termination Type:

  SURFACE MOUNT

• Total Number of Contacts:

  22

• UL Flammability Code:

  94V-0

• Withdrawl Force-Min:

  3.9754 N
