1735418-1 - TE Connectivity

Description: SATA, Plug, Cable-to-Board, 13 Position, 6P + 7P, Slimline Profile, Right Angle, Surface Mount, 1 Row, 2 Port, Top

Download 1735418-1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

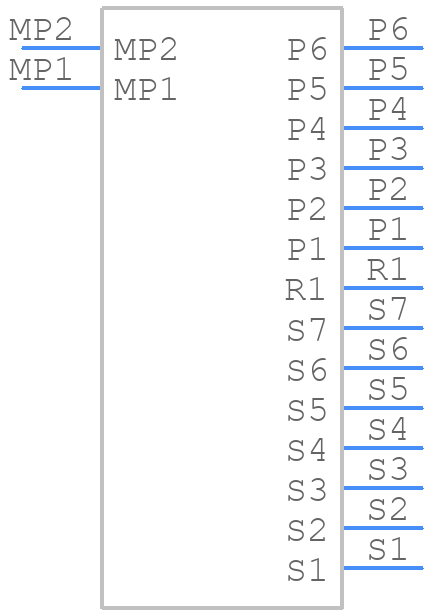

1735418-1 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints
1735418-1 - TE Connectivity PCB footprint - Other - Other - 1735418-1-3
click to zoom
3D Models
1735418-1 - TE Connectivity - 3D model - Other - 1735418-1-3
click to zoom

1735418-1 Details

  • Manufacturer Part Number:

    1735418-1

  • Brand Name:

    TE Connectivity

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    9 Weeks, 5 Days

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    7

  • Board Mounting Option:

    BOARD LOCK

  • Body Depth:

    0.212 inch

  • Body/Shell Style:

    PLUG

  • Connector Type:

    SCSI CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Material:

    NOT APPLICABLE

  • DIN Conformance:

    NO

  • EMI Shielded:

    NO

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Color:

    BLACK

  • Insulator Material:

    POLYETHYLENE

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    1.5A

  • Mixed Contacts:

    NO

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Ports:

    2

  • Number of Rows Loaded:

    1

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Plating Thickness:

    2u inch

  • Polarization Key:

    POLARIZED HOUSING

  • Rated Current (Signal):

    1.5 A

  • Reference Standard:

    UL

  • Terminal Length:

    0.076 inch

  • Terminal Pitch:

    1 mm

  • Termination Type:

    SURFACE MOUNT

  • Total Number of Contacts:

    13

  • UL Flammability Code:

    94V-0

1735418-1 Frequently Asked Questions (FAQs)

  • The recommended torque value for the screw terminals is 0.5-1.5 Nm (4.4-13.3 in-lbs). However, it's always best to consult the specific application requirements and TE Connectivity's guidelines for the specific connector series.
  • The 1735418-1 connector is designed to meet the requirements of IEC 61373, which includes vibration testing. However, it's essential to consult TE Connectivity's documentation and perform additional testing to ensure the connector meets the specific vibration requirements of your application.
  • The operating temperature range for the 1735418-1 connector is -40°C to 125°C (-40°F to 257°F). However, it's crucial to consider the temperature rating of the specific materials used in your application and ensure they are compatible with the connector's operating temperature range.
  • The 1735418-1 connector is designed to meet the requirements of IEC 60529, which includes testing for ingress protection. However, it's essential to consult TE Connectivity's documentation and perform additional testing to ensure the connector meets the specific environmental requirements of your application.
  • While it's technically possible to use a different wire gauge or type, it's not recommended. Using a wire gauge or type that's not specified in the datasheet can lead to reduced performance, reliability issues, or even damage to the connector. Always consult TE Connectivity's guidelines and recommendations for wire selection.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1735418-1 Overview

Use the download button to access the 1735418-1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 17354, or try a keyword search, such as Telecom and Datacom Connectors

About TE Connectivity

TE Connectivity, a global leader in connectivity and sensor solutions, designs and manufactures products that enable a more connected world. Serving a diverse range of industries, including automotive, industrial, medical, aerospace, and telecommunications, TE Connectivity offers a broad portfolio of products such as connectors, sensors, relays, and passive components. The company's innovations help improve the reliability and performance of electronic systems.
