The recommended torque specification for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs). It's essential to follow this specification to ensure reliable connections and prevent damage to the connector.
Yes, the 1735783-3 connector is designed to withstand high-vibration environments. It meets the IEC 61373 Category 1B vibration standard, making it suitable for use in applications with high vibration levels.
The 1735783-3 connector is rated for operation in temperatures ranging from -40°C to 125°C (-40°F to 257°F). However, it's essential to note that the temperature rating may vary depending on the specific application and environmental conditions.
Yes, the 1735783-3 connector is designed for automated assembly processes. Its design and packaging are optimized for high-volume production and can be easily integrated into automated assembly lines.
The 1735783-3 connector is designed for use with 20-24 AWG wire sizes. It's recommended to use wires with a temperature rating of at least 125°C (257°F) to ensure reliable operation.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
1735783-3 Overview

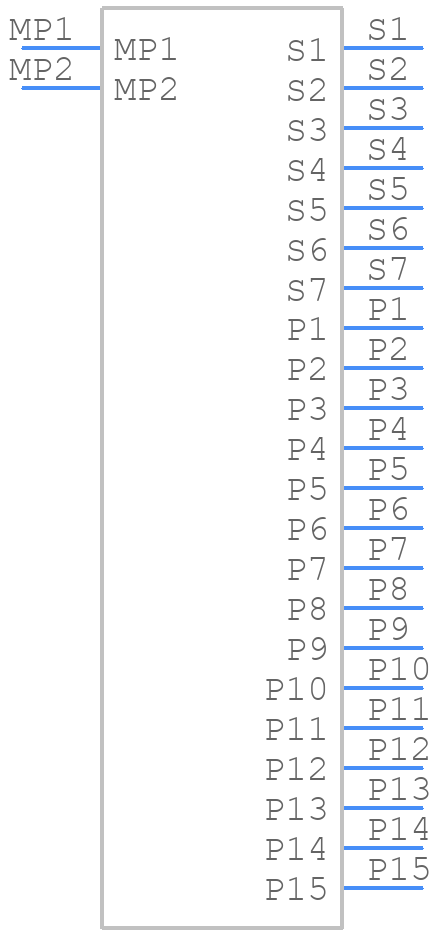

Use the download button to access the 1735783-3 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 17357,
or try a keyword search, such as Telecom and Datacom Connectors
