1737103 - Phoenix Contact

1737103 Frequently Asked Questions (FAQs)

• What is the recommended torque for screwing the connector onto a PCB?
  The recommended torque is 0.5 Nm to 1.5 Nm, depending on the specific application and PCB material. It's essential to consult the Phoenix Contact application notes for specific guidance.
• Can I use this connector in a high-vibration environment?
  Yes, the 1737103 connector is designed to withstand vibrations up to 10 g according to IEC 60068-2-6. However, it's crucial to ensure proper mounting and screwing to prevent loosening during operation.
• Is the connector suitable for use in humid or wet environments?
  The 1737103 connector has a IP20 rating, which means it's protected against solid objects larger than 12 mm, but not against water or moisture. For humid or wet environments, consider using a connector with a higher IP rating or applying additional sealing measures.
• Can I use this connector with a different wire gauge than specified in the datasheet?
  While the datasheet specifies a recommended wire gauge, it's possible to use a different gauge. However, this may affect the connector's performance, and it's essential to consult with Phoenix Contact or a qualified engineer to ensure the connector can handle the desired wire gauge.

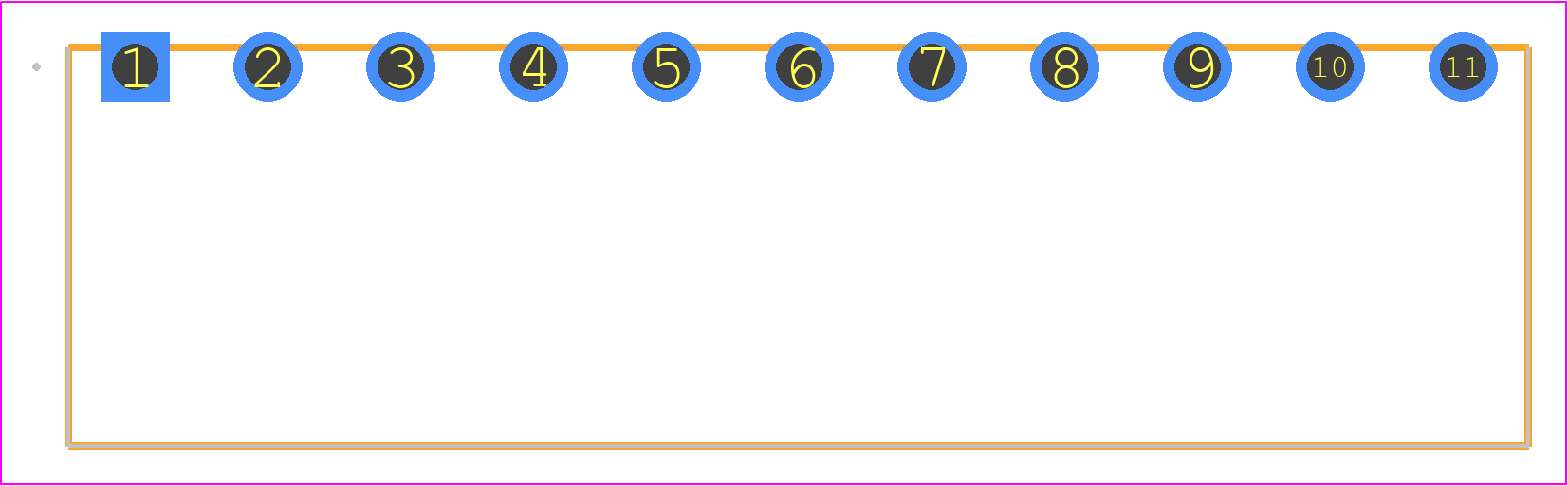

• Are there any specific PCB layout considerations for this connector?
  Yes, Phoenix Contact provides PCB layout recommendations in their application notes. It's essential to follow these guidelines to ensure proper connector seating, soldering, and to prevent damage to the PCB or connector.
