173862-1 - TE Connectivity

Description: PCB Mount Header, Horizontal, Wire-to-Board, 18 Position, 3.5 mm [.138 in] Centerline, Fully Shrouded, Gold (Au), Multilock Connector System

Download 173862-1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

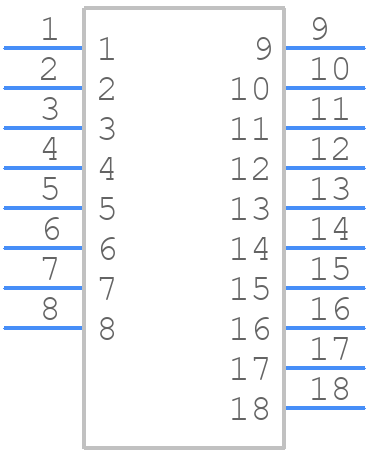

173862-1 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

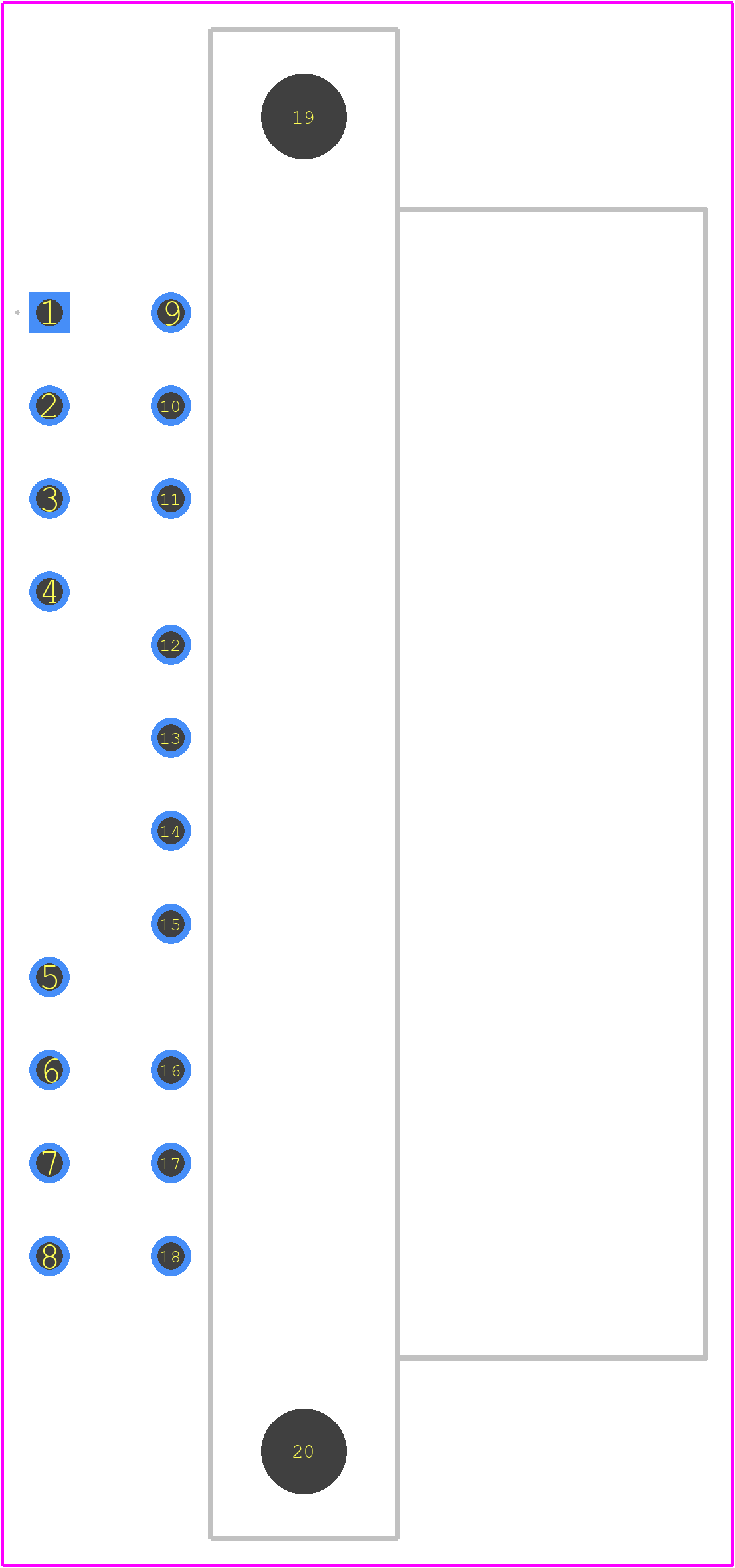

173862-1 - TE Connectivity PCB footprint - Other - Other - 173862-1-3
click to zoom
3D Models
173862-1 - TE Connectivity - 3D model - Other - 173862-1-3
click to zoom

173862-1 Details

  • Manufacturer Part Number:

    173862-1

  • Brand Name:

    AMP

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    TE Connectivity

  • Additional Feature:

    MULTILOCK

  • Body Breadth:

    2.236 inch

  • Body Length:

    0.981 inch

  • Connector Type:

    COMBINATION LINE CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Finish Termination:

    Tin (Sn)

  • Contact Gender:

    MALE

  • Contact Material:

    NOT APPLICABLE

  • DIN Conformance:

    NO

  • EMI Shielded:

    NO

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Material:

    POLYBUTYLENE TEREPHTHALATE

  • JESD-609 Code:

    e3

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    115/230VAC

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number of Ports:

    1

  • Number of Rows Loaded:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -30 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Rated Voltage:

    12 V

  • Terminal Pitch:

    3.5 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    18

173862-1 Frequently Asked Questions (FAQs)

  • The recommended torque value is 0.5-0.7 Nm (5-7 in-lbs) for the screw terminals. However, it's essential to consult the specific application requirements and follow the recommended torque values to ensure reliable connections.
  • Yes, the 173862-1 connector is designed to withstand vibrations and is suitable for use in high-vibration applications. However, it's crucial to ensure proper mounting and secure fastening to prevent connector damage or disconnection.
  • The operating temperature range for the 173862-1 connector is -40°C to 125°C (-40°F to 257°F). However, it's essential to consider the specific application requirements and potential thermal stresses on the connector.
  • The 173862-1 connector has a IP67 rating, which means it can withstand temporary immersion in water and exposure to certain chemicals. However, it's crucial to consult the specific application requirements and ensure the connector is properly sealed and protected to maintain its integrity.
  • The recommended wire size for the 173862-1 connector is 24-18 AWG (0.25-1.5 mm²). It's essential to use wires that meet the specified requirements to ensure reliable connections and prevent damage to the connector.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

173862-1 Overview

Use the download button to access the 173862-1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 17386, or try a keyword search, such as Combination Line Connectors

About TE Connectivity

TE Connectivity, a global leader in connectivity and sensor solutions, designs and manufactures products that enable a more connected world. Serving a diverse range of industries, including automotive, industrial, medical, aerospace, and telecommunications, TE Connectivity offers a broad portfolio of products such as connectors, sensors, relays, and passive components. The company's innovations help improve the reliability and performance of electronic systems.
