Part Image

173864-1 - TE Connectivity

Description: Body Features: Primary Product Color White | Configuration Features: Number of Sections 2 | Number of Signal Positions 24 | Number of Positions 24 | PCB Mount Orientation Horizontal | Number of Rows 2 | Contact Features: Contact Mating Area Plating Material Tin | Contact Size 1.8mm | Mating Tab Thickness .64 MM | Mating Tab Width 1.8 MM | Contact Type Tab | Mating Tab Thickness .025 INCH | Mating Tab Width .071 INCH | Dimensions: Connector Length 24.92 MM | Connector Width 78.6 MM | PCB Thickness (Recommend

Download 173864-1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

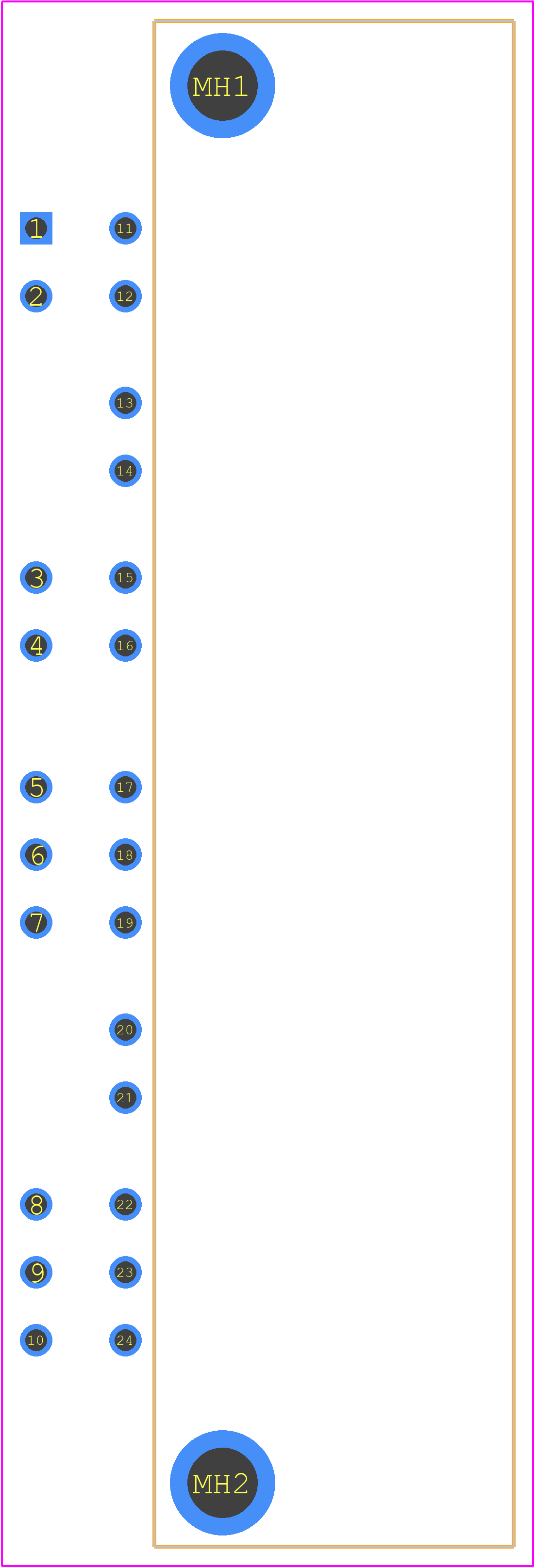

173864-1 - TE Connectivity PCB footprint - Other - Other - 173864-1-2
click to zoom
3D Models
173864-1 - TE Connectivity  - 3D model - Other - 173864-1-2
click to zoom

173864-1 Details

  • Manufacturer Part Number:

    173864-1

  • Brand Name:

    AMP

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    18 Weeks, 3 Days

  • Manufacturer:

    TE Connectivity

  • Additional Feature:

    MULTILOCK

  • Body Breadth:

    3.094 inch

  • Body Length:

    0.981 inch

  • Connector Type:

    COMBINATION LINE CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Gender:

    MALE

  • Contact Material:

    NOT APPLICABLE

  • DIN Conformance:

    NO

  • EMI Shielded:

    NO

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Material:

    POLYBUTYLENE TEREPHTHALATE

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    115/230VAC

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number of Ports:

    1

  • Number of Rows Loaded:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -30 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Rated Voltage:

    12 V

  • Terminal Pitch:

    3.5 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    24

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

173864-1 Overview

Use the download button to access the 173864-1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 17386, or try a keyword search, such as Combination Line Connectors
