173866-1 - TE Connectivity

Description: Body Features: Primary Product Color Natural | Configuration Features: Number of Positions 30 | Number of Rows 2 | PCB Mount Orientation Right Angle | Contact Features: Contact Mating Area Plating Material Tin (Sn) | Contact Type Tab | Housing Features: Centerline (Pitch) 3.5 MM | Centerline (Pitch) .138 INCH | Mechanical Attachment: Mating Alignment With | PCB Mount Alignment With | Connector Mounting Type Board Mount | PCB Mount Retention Without | Other: Interface Number 173853 | Packaging Features: Pack

Download 173866-1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

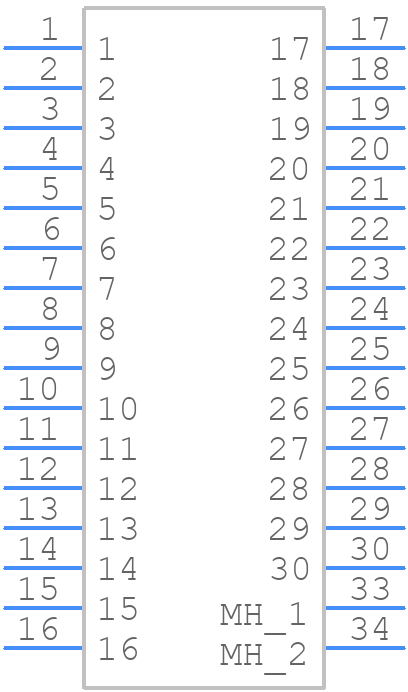

173866-1 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

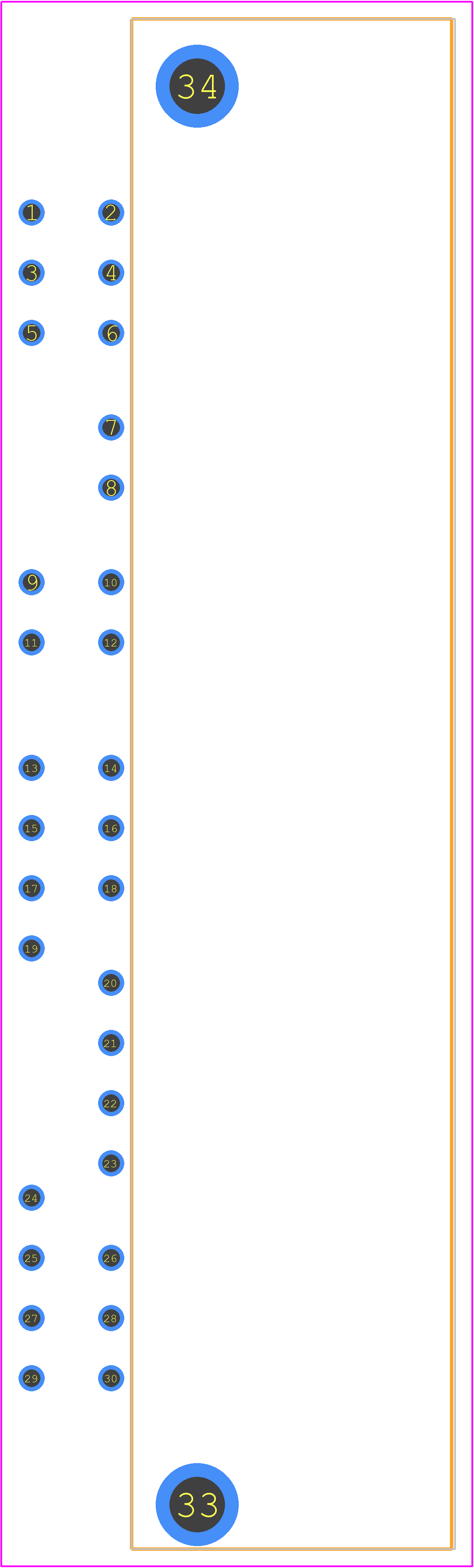

173866-1 - TE Connectivity PCB footprint - Other - Other - 173866-1
click to zoom
3D Models
173866-1 - TE Connectivity - 3D model - Other - 173866-1
click to zoom

173866-1 Details

  • Manufacturer Part Number:

    173866-1

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    TE Connectivity

  • Additional Feature:

    MULTILOCK

  • Body Breadth:

    0.622 inch

  • Body Length:

    3.508 inch

  • Connector Type:

    COMBINATION LINE CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Finish Termination:

    Tin (Sn)

  • Contact Gender:

    MALE

  • Contact Material:

    NOT APPLICABLE

  • DIN Conformance:

    NO

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Material:

    POLYBUTYLENE TEREPHTHALATE

  • JESD-609 Code:

    e3

  • MIL Conformance:

    NO

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD

  • Number of Rows Loaded:

    2

  • Option:

    GENERAL PURPOSE

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    30

173866-1 Frequently Asked Questions (FAQs)

  • The recommended torque value is 0.5-0.7 Nm (4.4-6.3 in-lbs) for the screw terminals. However, it's essential to consult the TE Connectivity application notes or contact their technical support for specific guidance.
  • Yes, the 173866-1 connector is designed to withstand vibrations. However, it's crucial to ensure proper mounting and secure the connector to prevent damage. Consult TE Connectivity's vibration testing data and application notes for more information.
  • The operating temperature range for the 173866-1 connector is -40°C to 125°C (-40°F to 257°F). However, it's essential to consider the specific application and environmental conditions to ensure reliable performance.
  • The 173866-1 connector has a sealed construction, making it suitable for outdoor or harsh environments. However, it's crucial to consider the specific environmental conditions, such as exposure to water, salt, or chemicals, and consult TE Connectivity's environmental testing data.
  • The 173866-1 connector is designed for specific wire gauges and types. Consult TE Connectivity's documentation or contact their technical support to determine the compatibility of the connector with your specific wire requirements.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

173866-1 Overview

Use the download button to access the 173866-1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 17386, or try a keyword search, such as Combination Line Connectors

About TE Connectivity

TE Connectivity, a global leader in connectivity and sensor solutions, designs and manufactures products that enable a more connected world. Serving a diverse range of industries, including automotive, industrial, medical, aerospace, and telecommunications, TE Connectivity offers a broad portfolio of products such as connectors, sensors, relays, and passive components. The company's innovations help improve the reliability and performance of electronic systems.
