174055-2 - TE Connectivity

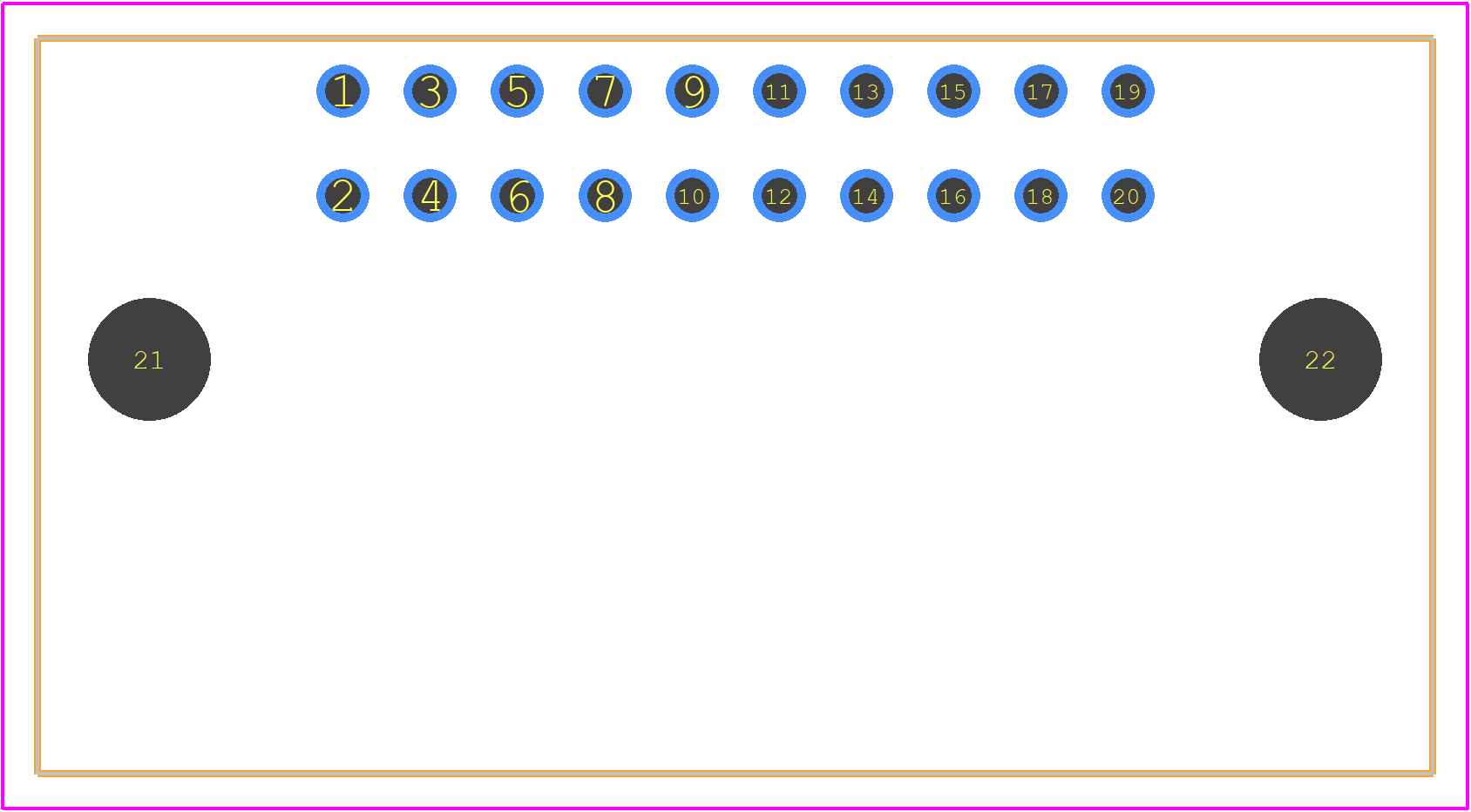

174055-2 Details

• Manufacturer Part Number:

  174055-2

• Brand Name:

  AMP

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• ECCN Code:

  EAR99

• HTS Code:

  8536.69.40.30

• Factory Lead Time:

  18 Weeks

• Manufacturer:

  TE Connectivity

• YTEOL:

  8

• Additional Feature:

  MULTILOCK

• Board Mounting Option:

  MOUNTING FLANGE

• Body Breadth:

  1.575 inch

• Body Depth:

  0.854 inch

• Body Length:

  0.854 inch

• Body/Shell Style:

  RECEPTACLE

• Connector Type:

  COMBINATION LINE CONNECTOR

• Contact Finish Mating:

  NOT APPLICABLE

• Contact Finish Termination:

  Tin (Sn)

• Contact Gender:

  MALE

• Contact Material:

  NOT APPLICABLE

• Contact Pattern:

  RECTANGULAR

• Contact Resistance:

  20 mΩ

• Contact Style:

  SQ PIN-SKT

• DIN Conformance:

  NO

• Durability:

  50 Cycles

• EMI Shielded:

  NO

• Empty Shell:

  YES

• Filter Feature:

  NO

• IEC Conformance:

  NO

• Insertion Force-Max:

  5.7824 N

• Insulation Resistance:

  100000000 Ω

• Insulator Color:

  BLACK

• Insulator Material:

  POLYBUTYLENE TEREPHTHALATE

• JESD-609 Code:

  e3

• MIL Conformance:

  NO

• Mains Connector Rating:

  115/230VAC

• Mating Contact Pitch:

  0.098 inch

• Mating Contact Row Spacing:

  0.205 inch

• Mating Information:

  174047-2

• Mixed Contacts:

  NO

• Mounting Style:

  RIGHT ANGLE

• Mounting Type:

  BOARD

• Number Of Connectors:

  ONE

• Number Of PCB Rows:

  2

• Number of Ports:

  1

• Number of Rows Loaded:

  2

• Operating Temperature-Max:

  105 °C

• Operating Temperature-Min:

  -30 °C

• Option:

  GENERAL PURPOSE

• PCB Contact Pattern:

  RECTANGULAR

• PCB Contact Row Spacing:

  2.9972 mm

• Panel Mount:

  NO

• Polarization Key:

  POLARIZED HOUSING

• Rated Voltage:

  12 V

• Reference Standard:

  UL

• Terminal Length:

  0.157 inch

• Terminal Pitch:

  2.5 mm

• Termination Type:

  SOLDER

• Total Number of Contacts:

  20

• Withdrawl Force-Min:

  .973 N
