1743284-1 - TE Connectivity

Description: Body Features: Primary Product Color Natural | Connector & Keying Code A | Configuration Features: Number of Rows 1 | Number of Positions 8 | Number of Sections 1 | Number of Signal Positions 8 | PCB Mount Orientation Horizontal | Contact Features: Contact Type Tab | Mating Tab Width .63 MM | Contact Mating Area Plating Material Tin | Mating Tab Thickness .024 INCH | Mating Tab Thickness .63 MM | Mating Tab Width .024 INCH | Contact Size .63mm | Dimensions: Profile Height from PCB .299 INCH | Profile Height

Download 1743284-1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1743284-1 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

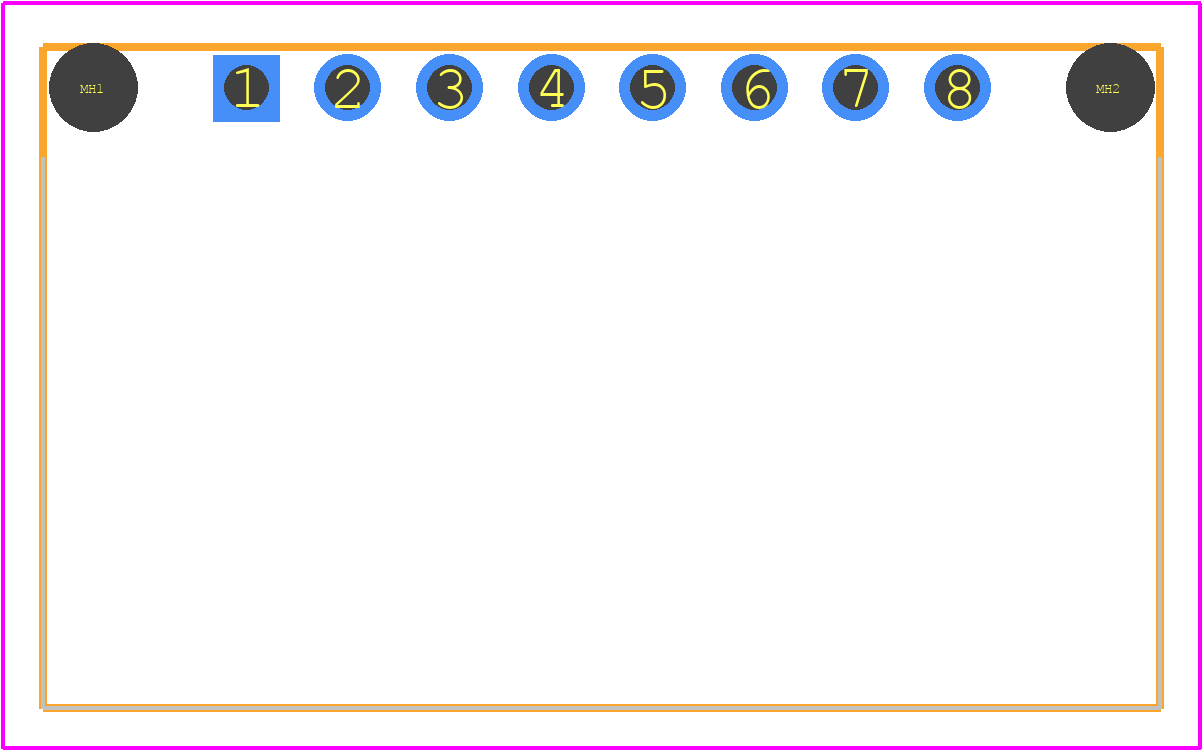

1743284-1 - TE Connectivity PCB footprint - Other - Other - 1743284-1-1
click to zoom
3D Models
1743284-1 - TE Connectivity - 3D model - Other - 1743284-1-1
click to zoom

1743284-1 Details

  • Manufacturer Part Number:

    1743284-1

  • Brand Name:

    TE Connectivity

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    TE Connectivity

  • Body Breadth:

    0.649 inch

  • Body Depth:

    0.649 inch

  • Body Length:

    1.09 inch

  • Connector Type:

    COMBINATION LINE CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Gender:

    MALE

  • Contact Material:

    NOT APPLICABLE

  • Contact Style:

    SQ PIN-SKT

  • DIN Conformance:

    NO

  • EMI Shielded:

    NO

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    115/230VAC

  • Mixed Contacts:

    NO

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number of Ports:

    1

  • Number of Rows Loaded:

    1

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    8

1743284-1 Frequently Asked Questions (FAQs)

  • The recommended torque specification for the 1743284-1 connector is 0.5-1.5 Nm (4.4-13.3 in-lbs). It's essential to follow this specification to ensure proper mating and prevent damage to the connector.
  • Yes, the 1743284-1 connector is designed to withstand high-vibration environments. It has a ruggedized design and is suitable for use in applications with high vibration, such as in industrial, automotive, or aerospace environments.
  • The 1743284-1 connector is designed to operate in a wide range of temperatures (-40°C to 125°C) and can withstand high humidity. However, it's essential to follow the recommended storage and operating conditions to ensure the connector's reliability and performance.
  • The 1743284-1 connector has a mating cycle life of at least 500 cycles, making it suitable for applications where frequent mating and unmating are required.
  • Yes, the 1743284-1 connector is designed to be compatible with other TE Connectivity products, including cables, backshells, and accessories. This ensures a comprehensive connectivity solution for various applications.
