1744037-8 - TE Connectivity

Description: Configuration Features: Number of Rows 1 | Number of Positions 8 | Number of Power Positions 8 | PCB Mount Orientation Vertical | Contact Features: Contact Current Rating (Max) 8 AMP | Contact Base Material Copper Alloy | Contact Mating Area Plating Material Thickness 2.03 MICM | Contact Type Pin | Contact Mating Area Plating Material Tin | PCB Contact Termination Area Plating Material Tin | PCB Contact Termination Area Plating Material Thickness 31.49 MICIN | PCB Contact Termination Area Plating Material T

Download 1744037-8 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1744037-8 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

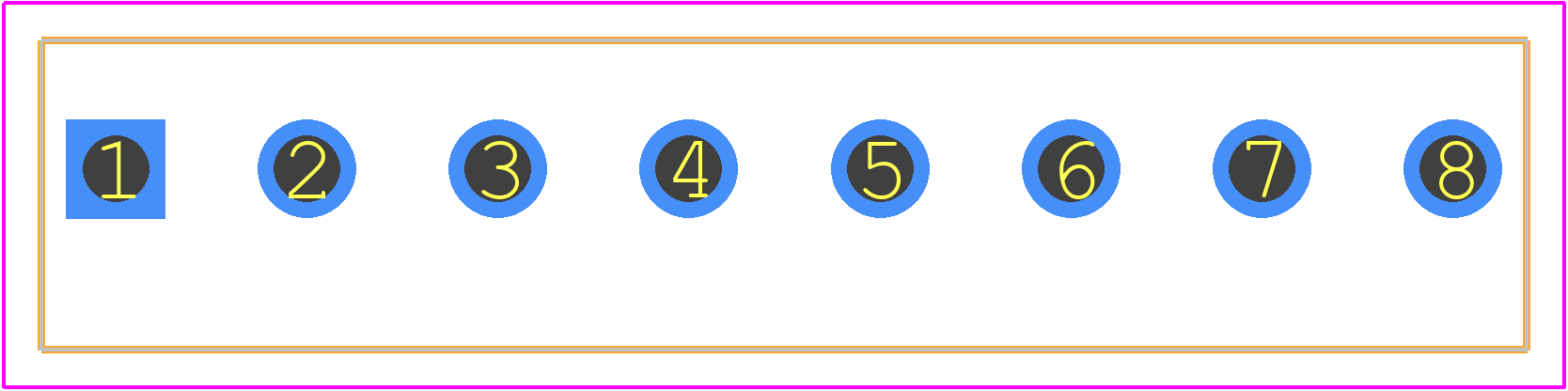

1744037-8 - TE Connectivity PCB footprint - Other - Other - 1744037-8-2
click to zoom
3D Models
1744037-8 - TE Connectivity - 3D model - Other - 1744037-8-2
click to zoom

1744037-8 Details

  • Manufacturer Part Number:

    1744037-8

  • Brand Name:

    TE Connectivity

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Unknown

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    7

  • Body Breadth:

    0.323 inch

  • Body Depth:

    0.429 inch

  • Body Length:

    1.502 inch

  • Body/Shell Style:

    PLUG

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Gender:

    MALE

  • Contact Material:

    NOT APPLICABLE

  • Contact Pattern:

    RECTANGULAR

  • DIN Conformance:

    NO

  • EMI Shielded:

    NO

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Color:

    NATURAL

  • Insulator Material:

    POLYAMIDE66

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    8A

  • Mixed Contacts:

    NO

  • Mounting Option 2:

    LATCHING

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Ports:

    1

  • Number of Rows Loaded:

    1

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -25 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Plating Thickness:

    80u inch

  • Rated Current (Signal):

    8 A

  • Rated Voltage:

    250 V

  • Reference Standard:

    UL

  • Terminal Length:

    0.146 inch

  • Terminal Pitch:

    5.08 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    8

  • UL Flammability Code:

    94V-0

1744037-8 Frequently Asked Questions (FAQs)

  • The recommended torque value for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
  • Yes, the 1744037-8 connector is designed to withstand vibrations and is suitable for use in applications with moderate to high vibration levels. However, it's essential to ensure proper mounting and secure the connector to prevent damage or disconnection.
  • The 1744037-8 connector has a rating of IP67, which means it is protected against dust and can withstand immersion in water up to 1 meter for 30 minutes. However, it's essential to ensure proper sealing and protection when using the connector in outdoor or harsh environments.
  • The 1744037-8 connector has an operating temperature range of -40°C to 125°C (-40°F to 257°F). It's essential to ensure that the connector is used within this temperature range to maintain its performance and reliability.
  • While the datasheet recommends using AWG 20-24 wire sizes, it's possible to use other wire sizes with the 1744037-8 connector. However, it's essential to ensure that the wire size is compatible with the connector's terminal design and that the wire is properly secured to prevent damage or disconnection.
