1744057-6 - TE Connectivity

Description: Configuration Features: Number of Power Positions 6 | PCB Mount Orientation Vertical | Number of Rows 1 | Number of Positions 6 | Contact Features: Contact Layout Inline | PCB Contact Termination Area Plating Material Thickness 31.49 MICIN | PCB Contact Termination Area Plating Material Thickness 80 MICIN | Contact Mating Area Plating Material Thickness 118.11 MICIN | Mating Post Length .303 INCH | PCB Contact Termination Area Plating Material Thickness 2 MICM | Contact Current Rating (Max) 8 AMP | Contact

Download 1744057-6 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1744057-6 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

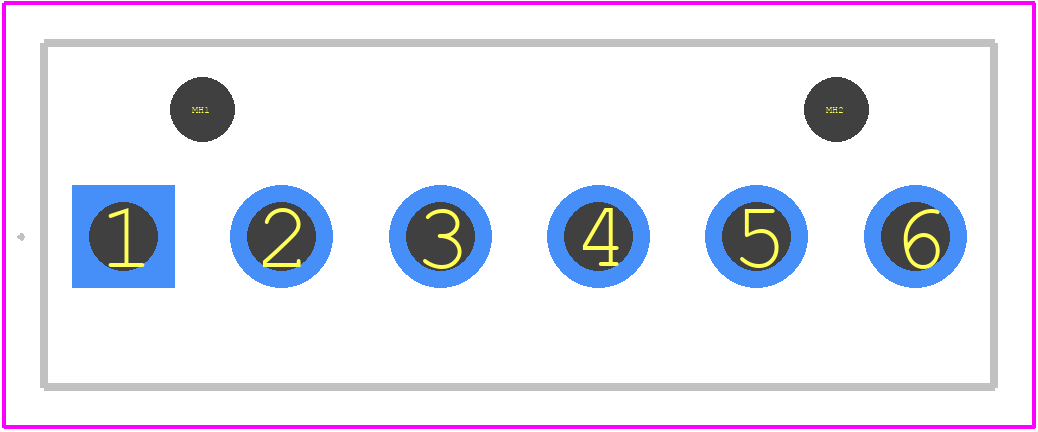

1744057-6 - TE Connectivity PCB footprint - Other - Other - 1744057-6-2
click to zoom
3D Models
1744057-6 - TE Connectivity - 3D model - Other - 1744057-6-2
click to zoom

1744057-6 Details

  • Manufacturer Part Number:

    1744057-6

  • Brand Name:

    TE Connectivity

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    End Of Life

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    1

  • Board Mounting Option:

    PEG

  • Body Breadth:

    0.323 inch

  • Body Depth:

    0.429 inch

  • Body Length:

    0.933 inch

  • Body/Shell Style:

    PLUG

  • Connector Type:

    BOARD CONNECTOR

  • Contact Arrangement:

    S0P6

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Gender:

    MALE

  • Contact Material:

    NOT APPLICABLE

  • Contact Pattern:

    RECTANGULAR

  • Contact Resistance:

    20 mΩ

  • Contact Style:

    SQ PIN-SKT

  • DIN Conformance:

    NO

  • Durability:

    500 Cycles

  • EMI Shielded:

    NO

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insertion Force-Max:

    9.7856 N

  • Insulation Resistance:

    500000000 Ω

  • Insulator Color:

    NATURAL

  • Insulator Material:

    POLYAMIDE66

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    8A

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    LOCKING

  • Mounting Option 2:

    LATCHING

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Ports:

    1

  • Number of Rows Loaded:

    1

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -25 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Plating Thickness:

    118.11u inch

  • Polarization Key:

    POLARIZED

  • Rated Current (Signal):

    8 A

  • Reference Standard:

    UL

  • Terminal Length:

    0.146 inch

  • Terminal Pitch:

    3.96 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    6

  • UL Flammability Code:

    94V-0

  • Withdrawl Force-Min:

    .973 N

1744057-6 Frequently Asked Questions (FAQs)

  • The recommended torque value for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
  • Yes, the 1744057-6 connector is designed to withstand vibrations and is suitable for use in applications with moderate to high vibration levels. However, it's essential to ensure proper mounting and secure the connector to prevent damage or disconnection.
  • The 1744057-6 connector has a IP67 rating, which means it's protected against dust and water ingress. However, it's not designed for prolonged exposure to direct sunlight, high temperatures, or extreme humidity. For outdoor or harsh environmental use, consider using a connector with a higher IP rating or additional protection measures.
  • While the datasheet recommends using AWG 20-24 wire, it's possible to use other wire sizes with caution. However, using smaller or larger wire sizes may affect the connector's performance, reliability, and durability. Consult with TE Connectivity or a qualified engineer to determine the feasibility of using alternative wire sizes.
  • Yes, to ensure reliable operation and prevent damage, follow the recommended PCB layout guidelines provided by TE Connectivity. This includes maintaining a minimum clearance of 1.5 mm between the connector and other components, and ensuring the PCB is designed to accommodate the connector's dimensions and thermal requirements.
