1744429-9 - TE Connectivity

Description: PCB Mount Header, Vertical, Wire-to-Board, 9 Position, 3.96 mm [.156 in] Centerline, Partially Shrouded, Tin (Sn), Economy Power

Download 1744429-9 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1744429-9 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

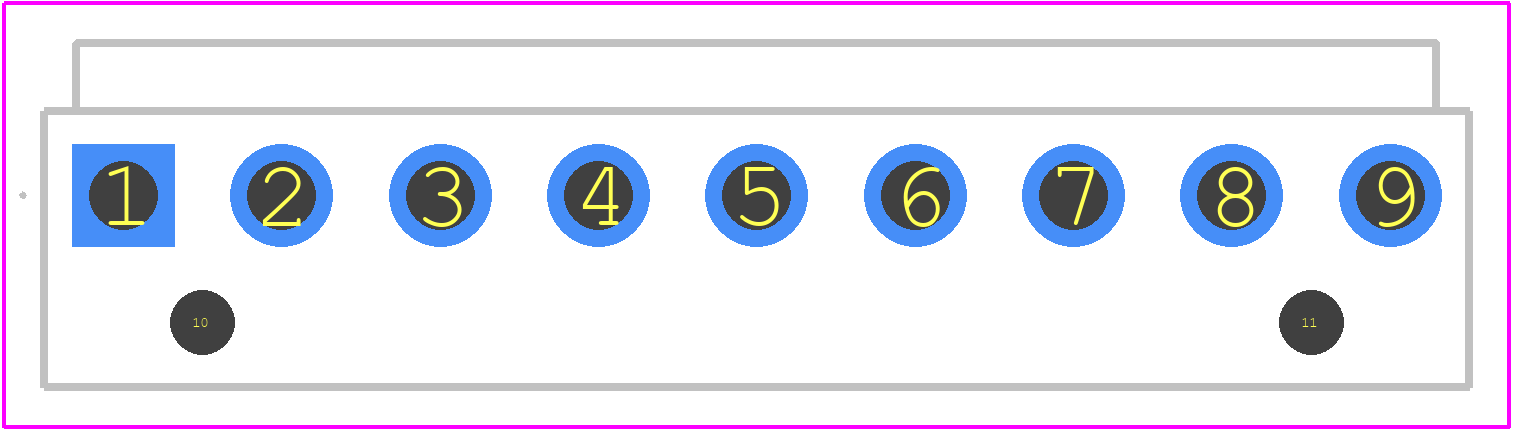

1744429-9 - TE Connectivity PCB footprint - Other - Other - 1744429-9-1
click to zoom
3D Models
1744429-9 - TE Connectivity - 3D model - Other - 1744429-9-1
click to zoom

1744429-9 Details

  • Manufacturer Part Number:

    1744429-9

  • Brand Name:

    TE Connectivity

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Unknown

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    6.6

  • Body Depth:

    0.37 inch

  • Body Length:

    1.403 inch

  • Body/Shell Style:

    PLUG

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Gender:

    MALE

  • Contact Material:

    NOT APPLICABLE

  • Contact Pattern:

    RECTANGULAR

  • DIN Conformance:

    NO

  • EMI Shielded:

    NO

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Color:

    NATURAL

  • Insulator Material:

    POLYAMIDE

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    8A

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Ports:

    1

  • Number of Rows Loaded:

    1

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -25 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Plating Thickness:

    120u inch

  • Rated Current (Signal):

    8 A

  • Rated Voltage:

    250 V

  • Reference Standard:

    UL

  • Terminal Length:

    0.145 inch

  • Terminal Pitch:

    3.96 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    9

  • UL Flammability Code:

    94V-0

1744429-9 Frequently Asked Questions (FAQs)

  • The recommended torque value for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs). It's essential to follow this value to ensure reliable connections and prevent damage to the connector.
  • Yes, the 1744429-9 connector is designed to withstand vibrations and is suitable for use in applications with moderate to high vibration levels. However, it's essential to follow proper mounting and installation procedures to ensure the connector remains secure.
  • While the datasheet specifies AWG 20-24 wire sizes, the connector can accommodate smaller wire sizes (e.g., AWG 26-28) with the use of wire adapters or by following TE Connectivity's wire stripping and termination guidelines.
  • The 1744429-9 connector is rated for operation in temperatures ranging from -40°C to 125°C (-40°F to 257°F). However, it's essential to consider the specific application and environmental conditions to ensure the connector meets the required performance and reliability standards.
  • The 1744429-9 connector is designed to meet IP67 standards, providing protection against dust and water ingress. However, it's essential to evaluate the specific environmental conditions and consider additional protection measures, such as conformal coatings or sealing, to ensure the connector's reliability and performance.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1744429-9 Overview

Use the download button to access the 1744429-9 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 17444, or try a keyword search, such as Headers and Edge Type Connectors
