Part Image

1747022-9 - TE Connectivity

Description: Conn Board to Board RCP 20 POS 0.5mm Solder ST SMD Embossed T/R - Tape and Reel

Download 1747022-9 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

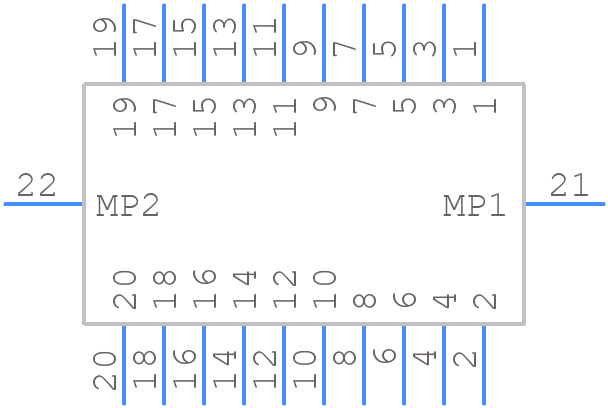

Symbol
1747022-9 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints
1747022-9 - TE Connectivity PCB footprint - Other - Other - 1747022-9-4
click to zoom
3D Models
1747022-9 - TE Connectivity - 3D model - Other - 1747022-9-4
click to zoom

1747022-9 Details

  • Manufacturer Part Number:

    1747022-9

  • Brand Name:

    AMP

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    0

  • Additional Feature:

    TAPING P/N

  • Body Breadth:

    0.161 inch

  • Body Depth:

    0.128 inch

  • Body Length:

    0.37 inch

  • Body/Shell Style:

    RECEPTACLE

  • Connector Type:

    BOARD STACKING CONNECTOR

  • Contact Finish Mating:

    AU

  • Contact Finish Termination:

    Tin (Sn)

  • Contact Gender:

    FEMALE

  • Contact Material:

    COPPER ALLOY

  • Contact Pattern:

    RECTANGULAR

  • Contact Style:

    BELLOWED TYPE

  • Dielectric Withstanding Voltage:

    500VAC V

  • Durability:

    30 Cycles

  • Filter Feature:

    NO

  • Insulation Resistance:

    100000000 Ω

  • Insulator Material:

    POLYAMIDE

  • JESD-609 Code:

    e3

  • Mating Contact Pitch:

    0.02 inch

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number Of PCB Rows:

    2

  • Number of Rows Loaded:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -30 °C

  • PCB Contact Pattern:

    RECTANGULAR

  • PCB Contact Row Spacing:

    4.6482 mm

  • Polarization Key:

    POLARIZED HOUSING

  • Rated Current (Signal):

    0.5 A

  • Reference Standard:

    UL

  • Terminal Pitch:

    0.508 mm

  • Termination Type:

    SURFACE MOUNT

  • Total Number of Contacts:

    20

1747022-9 Frequently Asked Questions (FAQs)

  • The recommended torque value for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
  • Yes, the 1747022-9 connector is designed to withstand high-vibration environments. It meets the IEC 61373 Cat 2 vibration standard, making it suitable for use in applications such as rail, industrial, and automotive.
  • The 1747022-9 connector has a IP67 rating, which means it is protected against dust and water ingress. However, it's essential to ensure proper sealing and protection when using the connector in outdoor environments to maintain its performance and reliability.
  • The 1747022-9 connector has an operating temperature range of -40°C to 125°C (-40°F to 257°F). It's essential to ensure that the connector is used within this temperature range to maintain its performance and reliability.
  • Yes, the 1747022-9 connector is designed to be compatible with other TE Connectivity products, such as cable assemblies and PCB connectors. However, it's essential to verify compatibility and ensure proper mating and performance before using the connector with other products.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1747022-9 Overview

Use the download button to access the 1747022-9 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 17470, or try a keyword search, such as Headers and Edge Type Connectors

About TE Connectivity

TE Connectivity, a global leader in connectivity and sensor solutions, designs and manufactures products that enable a more connected world. Serving a diverse range of industries, including automotive, industrial, medical, aerospace, and telecommunications, TE Connectivity offers a broad portfolio of products such as connectors, sensors, relays, and passive components. The company's innovations help improve the reliability and performance of electronic systems.
