1747053-1 - TE Connectivity

Description: Body Features: Primary Product Color Black | Configuration Features: PCB Mount Orientation Vertical | Number of Positions 40 | Number of Rows 2 | Contact Features: Contact Shape & Form Rectangular | Contact Current Rating (Max) 3 AMP | Contact Base Material Brass | Dimensions: Row-to-Row Spacing .1 INCH | PCB Thickness (Recommended) .062 INCH | PCB Thickness (Recommended) 1.57 MM | Row-to-Row Spacing 2.54 MM | Housing Features: Centerline (Pitch) .1 INCH | Centerline (Pitch) 2.54 MM | Housing Material Polye

Download 1747053-1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

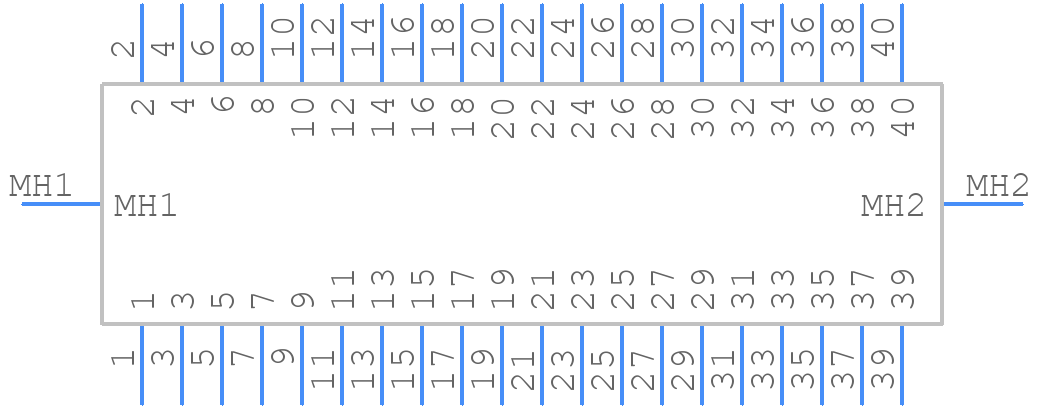

1747053-1 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

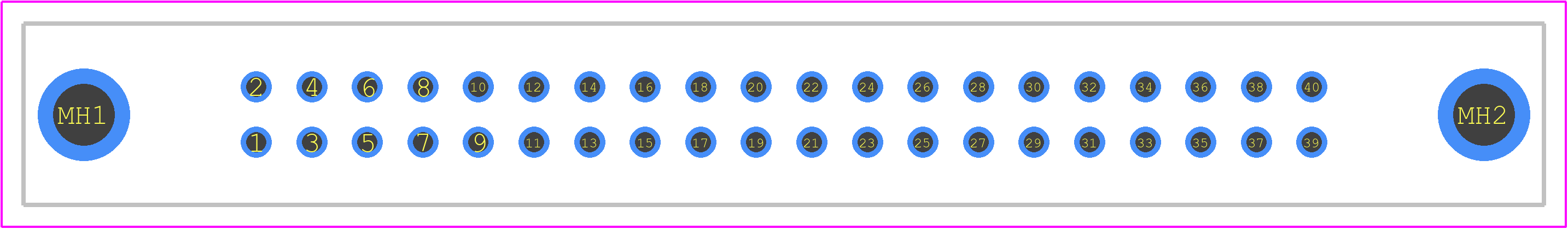

1747053-1 - TE Connectivity PCB footprint - Other - Other - 1747053-1-1
click to zoom
3D Models
1747053-1 - TE Connectivity - 3D model - Other - 1747053-1-1
click to zoom

1747053-1 Details

  • Manufacturer Part Number:

    1747053-1

  • Brand Name:

    AMP

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Not Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    27 Weeks, 1 Day

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    7

  • Body Breadth:

    0.406 inch

  • Body Depth:

    0.325 inch

  • Body Length:

    2.735 inch

  • Body/Shell Style:

    PLUG

  • Connector Type:

    TELECOM AND DATACOM CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Gender:

    MALE

  • Contact Material:

    NOT APPLICABLE

  • DIN Conformance:

    NO

  • EMI Shielded:

    NO

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Color:

    BLACK

  • Insulator Material:

    POLYESTER

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    3A

  • Mating Contact Row Spacing:

    0.1 inch

  • Mixed Contacts:

    NO

  • Mounting Option 2:

    SCREWLOCKS

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number of Ports:

    1

  • Number of Rows Loaded:

    2

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -25 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Rated Current (Signal):

    3 A

  • Reference Standard:

    UL

  • Shell Material:

    POLYESTER/POLYETHYLENE

  • Terminal Length:

    0.165 inch

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    40

  • UL Flammability Code:

    94V-0
