1747994-1 - TE Connectivity

Description: PCB Mount Header, Vertical, Wire-to-Board, 16 Position, 2.5 mm [.099 in] Centerline, Fully Shrouded, Gold, Through Hole - Solder, Dynamic 2000 Series

Download 1747994-1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

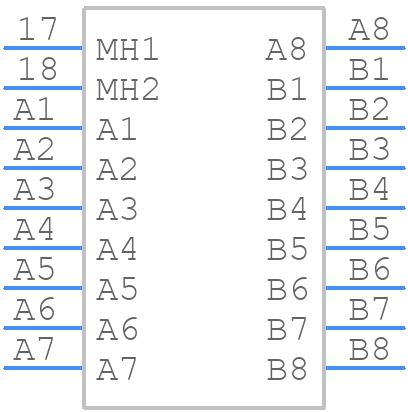

1747994-1 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

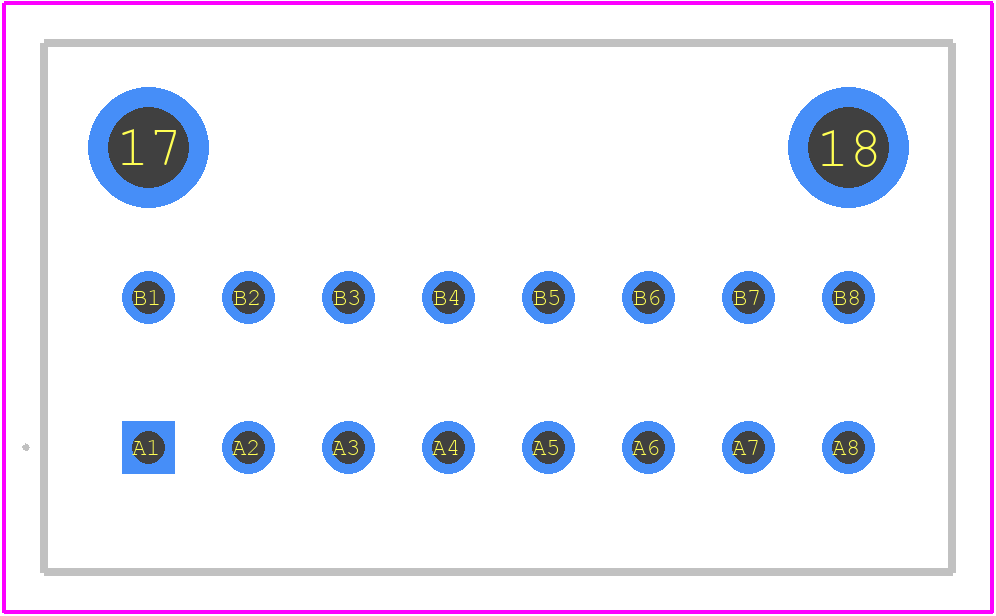

1747994-1 - TE Connectivity PCB footprint - Other - Other - 1747994-1-2
click to zoom
3D Models
1747994-1 - TE Connectivity - 3D model - Other - 1747994-1-2
click to zoom

1747994-1 Details

  • Manufacturer Part Number:

    1747994-1

  • Brand Name:

    AMP

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Unknown

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    8

  • Board Mounting Option:

    SOLDERABLE RETENTION CLIPS

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Gender:

    MALE

  • Contact Material:

    NOT APPLICABLE

  • DIN Conformance:

    NO

  • EMI Shielded:

    NO

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Color:

    BLACK

  • Insulator Material:

    GLASS FILLED POLYESTER

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    5A

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Ports:

    1

  • Number of Rows Loaded:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -55 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Plating Thickness:

    15u inch

  • Polarization Key:

    POLARIZED

  • Rated Current (Signal):

    5 A

  • Reference Standard:

    UL

  • Terminal Pitch:

    2.5 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    16

  • UL Flammability Code:

    94V-0

1747994-1 Frequently Asked Questions (FAQs)

  • The recommended torque specification for the 1747994-1 connector is 0.5-1.5 Nm (4.4-13.3 in-lbs). It's essential to follow this specification to ensure proper mating and to prevent damage to the connector.
  • Yes, the 1747994-1 connector is designed to withstand high-vibration environments. It has a ruggedized design and is suitable for use in applications where vibration is a concern, such as in industrial, automotive, or aerospace environments.
  • Yes, the 1747994-1 connector is designed to operate in harsh environments. It has a temperature range of -40°C to 125°C (-40°F to 257°F) and can withstand humidity levels up to 95% RH. However, it's essential to follow proper installation and sealing procedures to ensure the connector's performance in these environments.
  • Yes, the 1747994-1 connector is designed to be compatible with other TE Connectivity products, including cables, backshells, and accessories. This allows for easy integration into existing systems and enables designers to create custom solutions using TE Connectivity's range of products.
  • The typical lead time for the 1747994-1 connector can vary depending on the region, quantity, and availability. However, TE Connectivity typically quotes a lead time of 6-12 weeks for this product. It's recommended to check with authorized distributors or TE Connectivity's customer service for the most up-to-date lead time information.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1747994-1 Overview

Use the download button to access the 1747994-1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 17479, or try a keyword search, such as Headers and Edge Type Connectors

About TE Connectivity

TE Connectivity, a global leader in connectivity and sensor solutions, designs and manufactures products that enable a more connected world. Serving a diverse range of industries, including automotive, industrial, medical, aerospace, and telecommunications, TE Connectivity offers a broad portfolio of products such as connectors, sensors, relays, and passive components. The company's innovations help improve the reliability and performance of electronic systems.
