174912-2 - TE Connectivity

Description: Connector Header Through Hole, Right Angle 36 position 0.098" (2.50mm)

Download 174912-2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

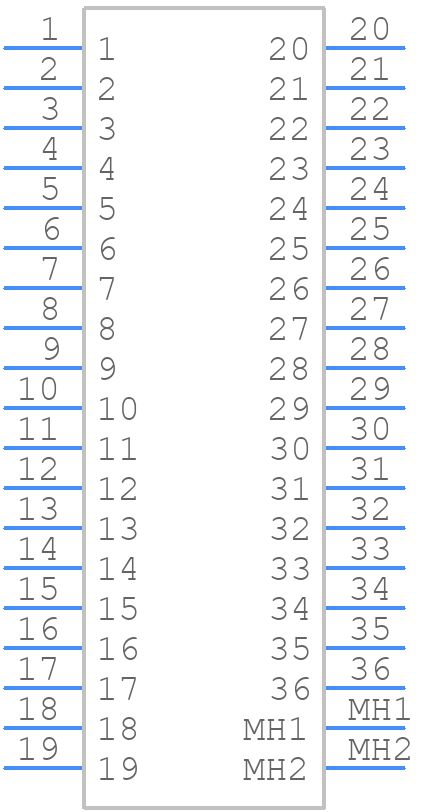

174912-2 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

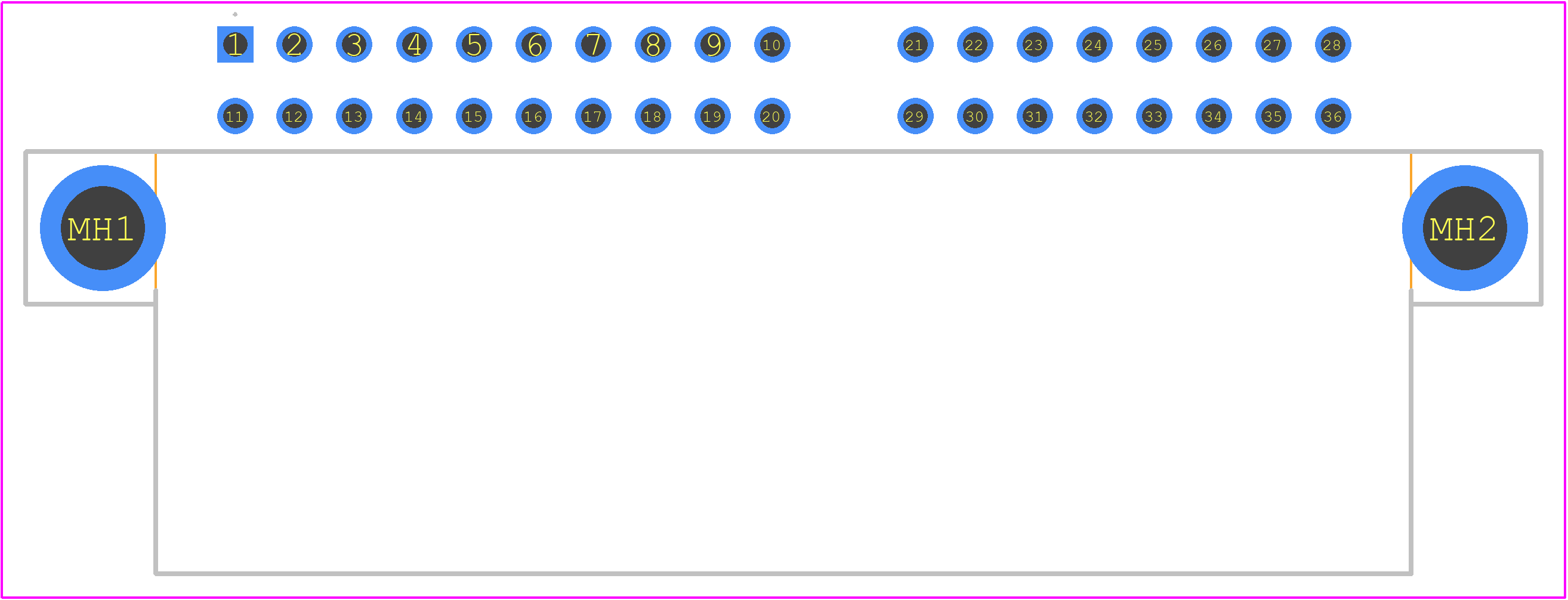

174912-2 - TE Connectivity PCB footprint - Other - Other - 174912-2-3
click to zoom
3D Models
174912-2 - TE Connectivity - 3D model - Other - 174912-2-3
click to zoom

174912-2 Details

  • Manufacturer Part Number:

    174912-2

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    TE Connectivity

  • Additional Feature:

    MULTILOCK

  • Connector Type:

    COMBINATION LINE CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Finish Termination:

    Matte Tin (Sn)

  • Contact Gender:

    MALE

  • Contact Material:

    NOT APPLICABLE

  • DIN Conformance:

    NO

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Material:

    POLYBUTYLENE TEREPHTHALATE

  • JESD-609 Code:

    e3

  • MIL Conformance:

    NO

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD

  • Option:

    GENERAL PURPOSE

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    36

174912-2 Frequently Asked Questions (FAQs)

  • The recommended torque value is 0.5-0.7 Nm (4.4-6.3 in-lbs) for the screw terminals.
  • Yes, the 174912-2 connector is designed to withstand high-vibration environments, making it suitable for use in applications such as industrial machinery, transportation, and aerospace.
  • Yes, the 174912-2 connector is designed for automated assembly and can be easily integrated into high-volume manufacturing processes.
  • The operating temperature range for the 174912-2 connector is -40°C to 125°C (-40°F to 257°F).
  • Yes, the 174912-2 connector is designed to withstand harsh environments, including high humidity and exposure to certain chemicals. However, it's essential to consult the datasheet and TE Connectivity's application notes for specific guidance.
